DTC 44-46

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 44-46: Disc Crack
44-46 - Disc Crack

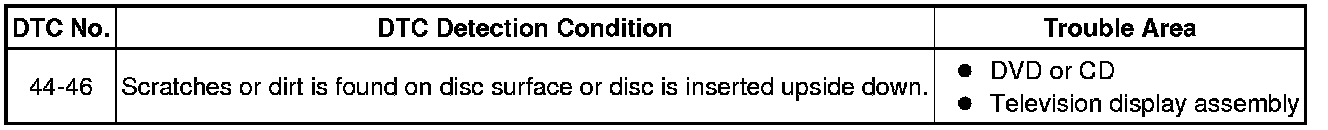

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK THAT DISC IS INSERTED PROPERLY

(a) Check whether or not the disc is inserted upside down.

OK:

Disc is properly inserted.

NG -- SET DISC
OK -- Continue to next step.

2. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc

NG -- DISC IS FAULTY
OK -- Continue to next step.

3. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

4. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

5. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same DTC is output again.

OK:

Malfunction disappears.

NG -- REPLACE DISC WITH ANOTHER AND RECHECK

OK -- END

6. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(1) Replace the disc with a known good one.

(2) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(3) Recheck for DTCs and check if the same DTC is output again.

OK:

Malfunction disappears.

NG -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

OK -- END
