Electrical Specifications





SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SERVICE DATA

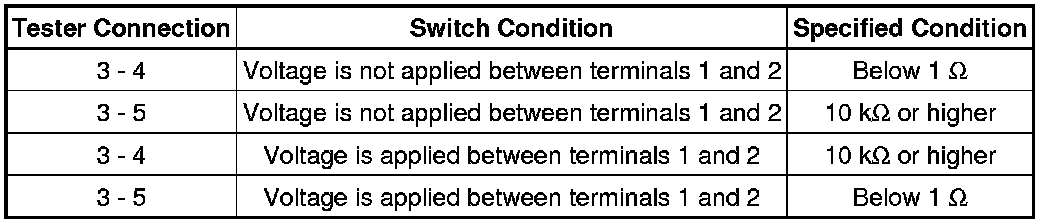

Stop Light Control (BRK) Relay

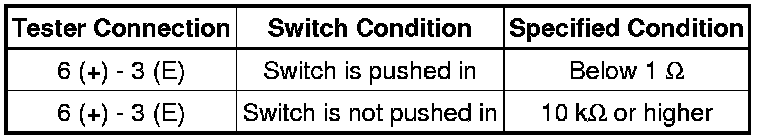

VSC OFF Switch





Brake Pedal Load Sensing Switch
