Position of Parts In Body
Position of Parts In Body

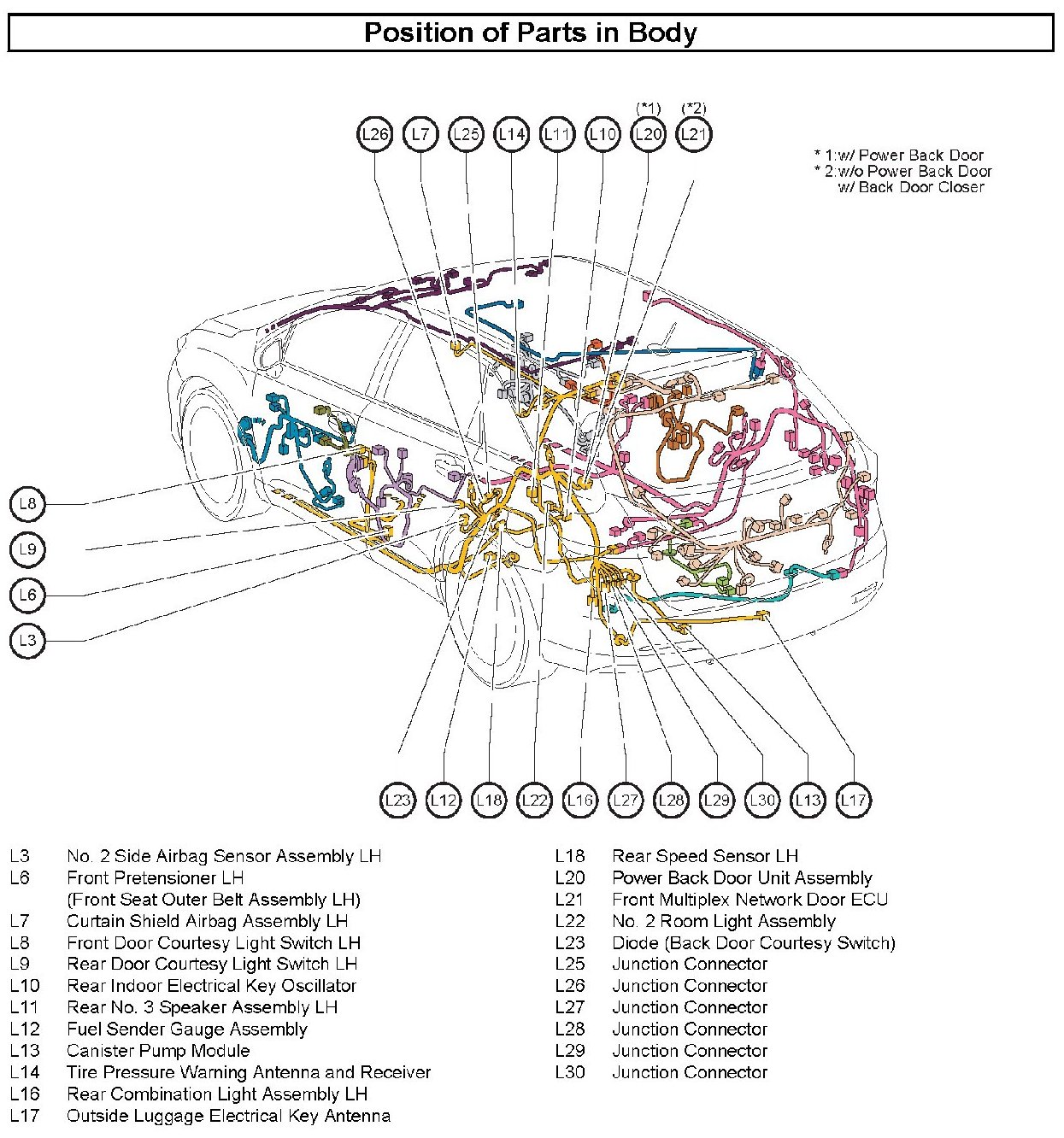

Position Of Parts In Body:

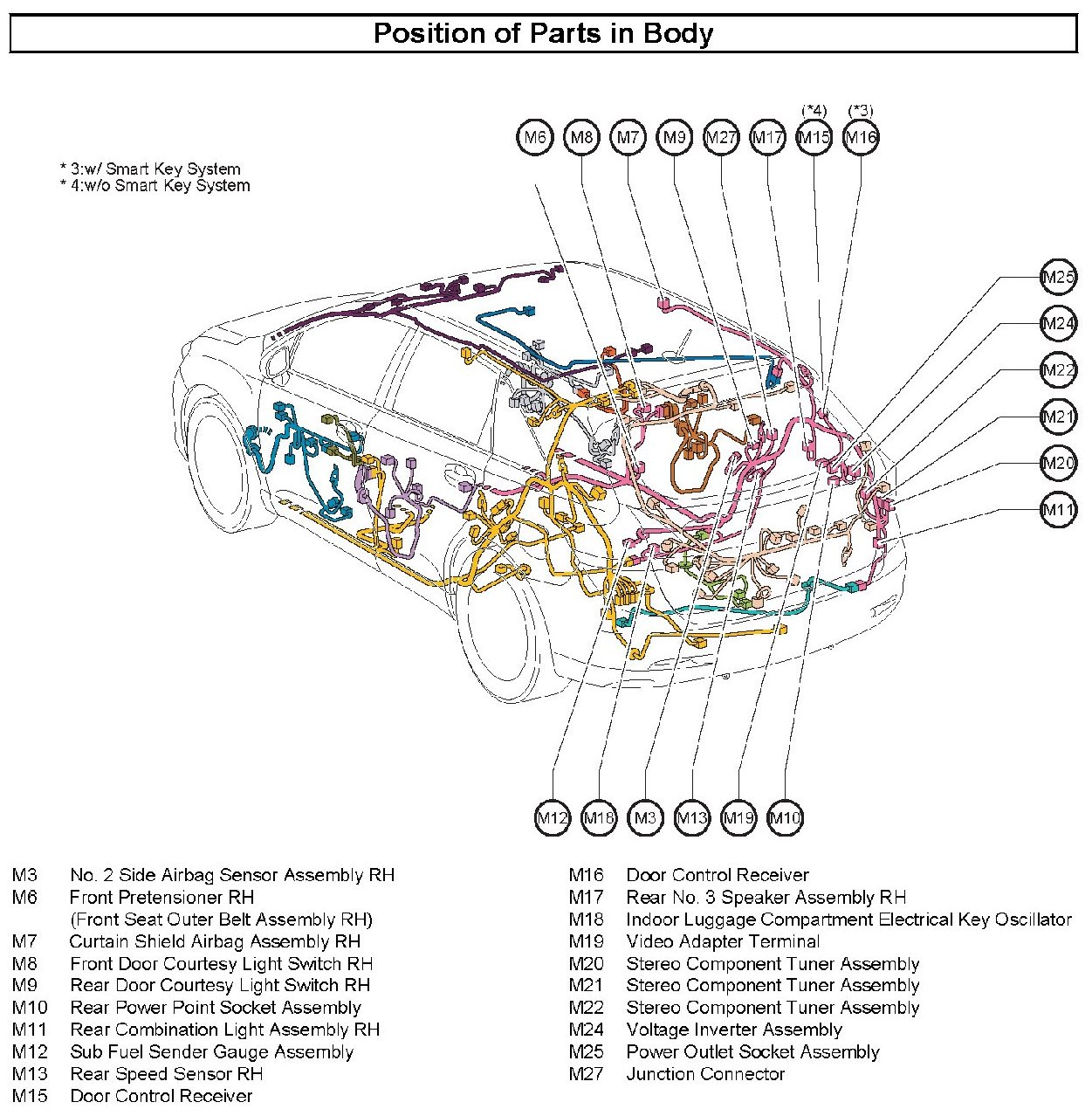

Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
