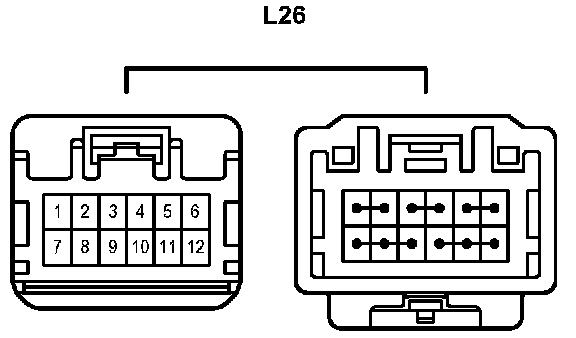

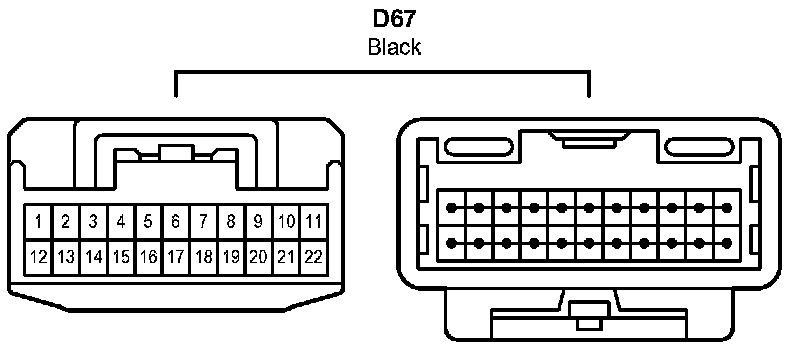

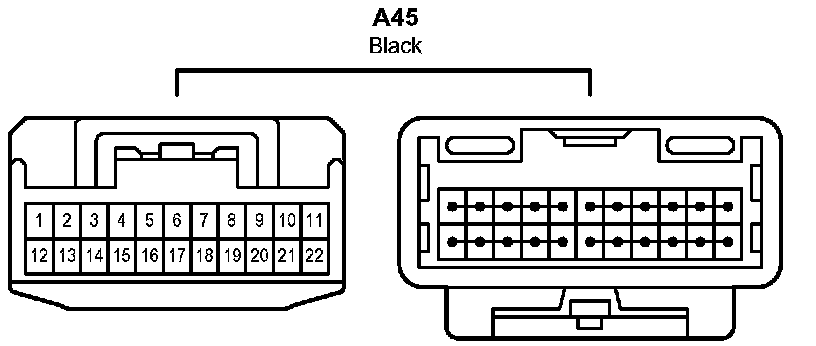

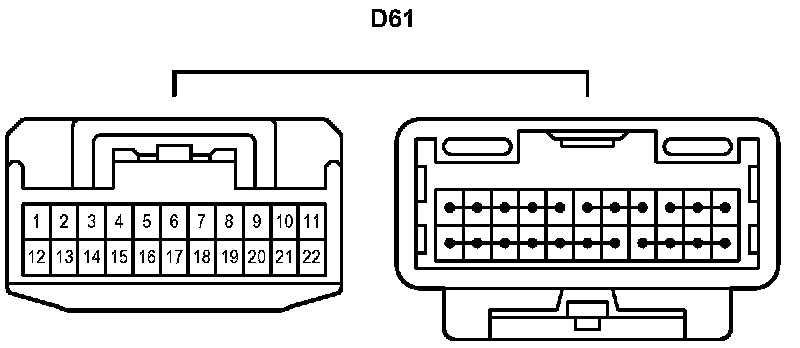

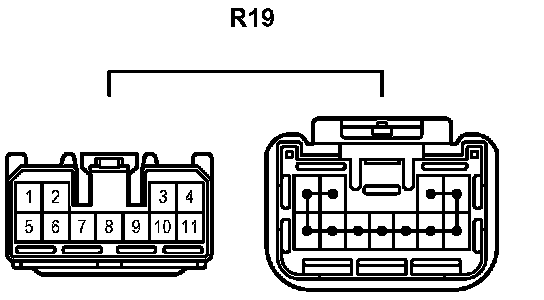

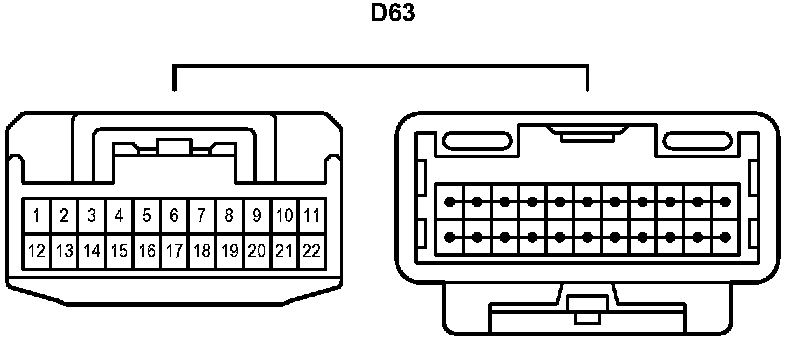

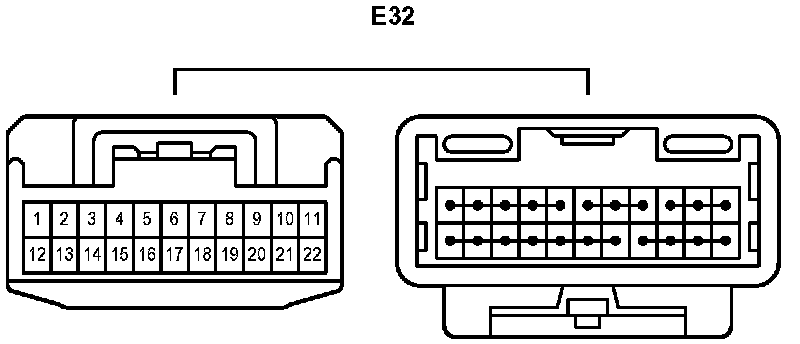

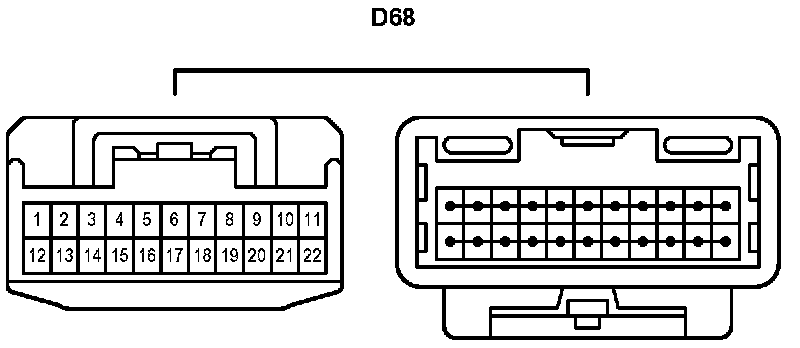

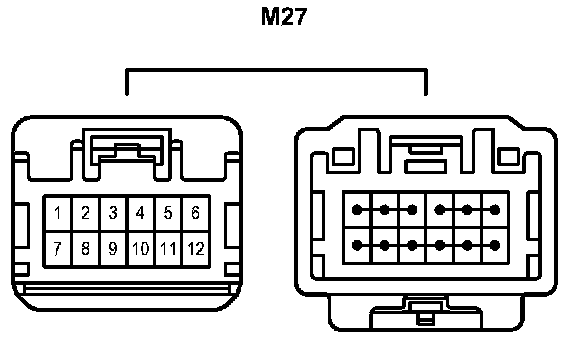

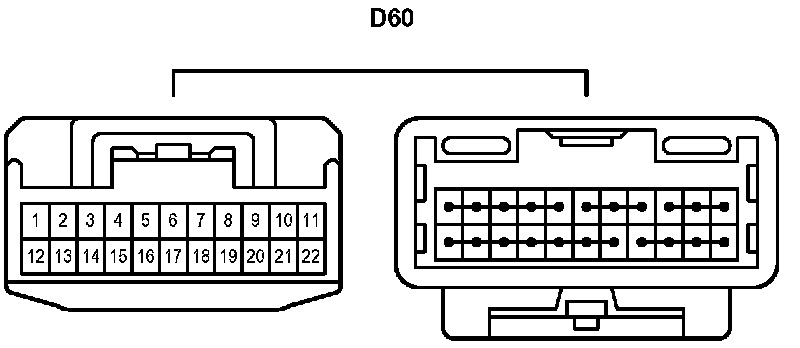

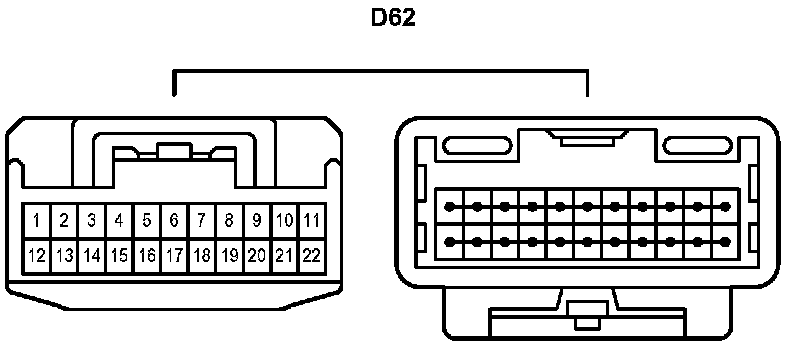

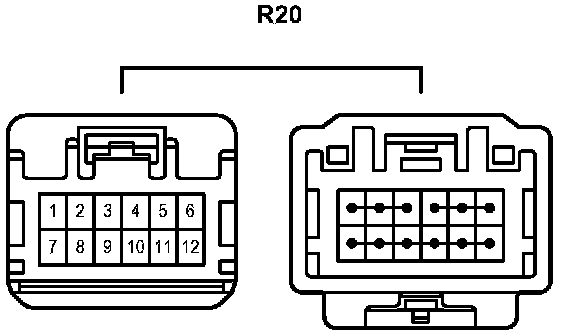

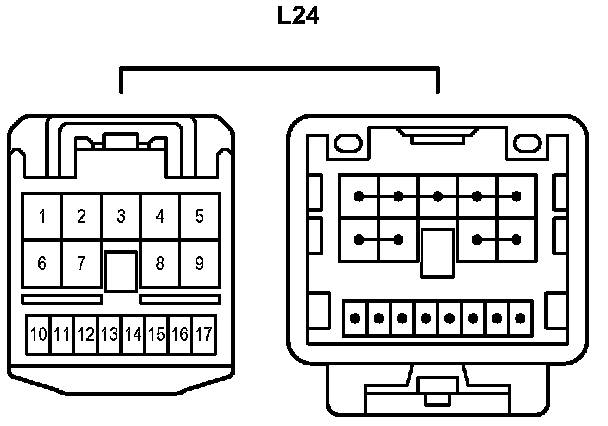

Junction Connector (Short Terminal)

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector Colors:

Black











Gray








Connectors with no indicated colors are white in color
