Audio System (6 Speaker)

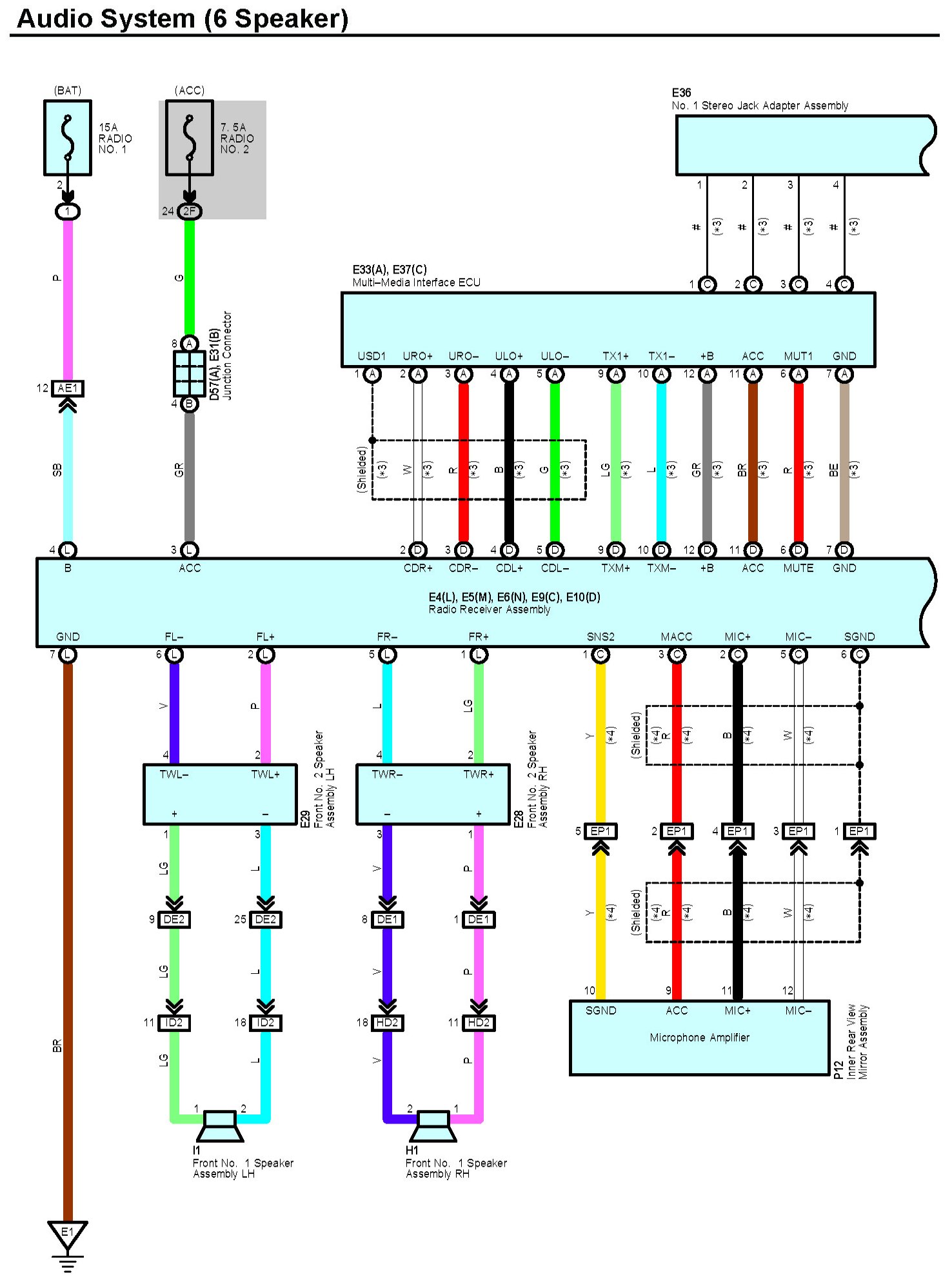

Audio System (6 Speaker) Part 1:

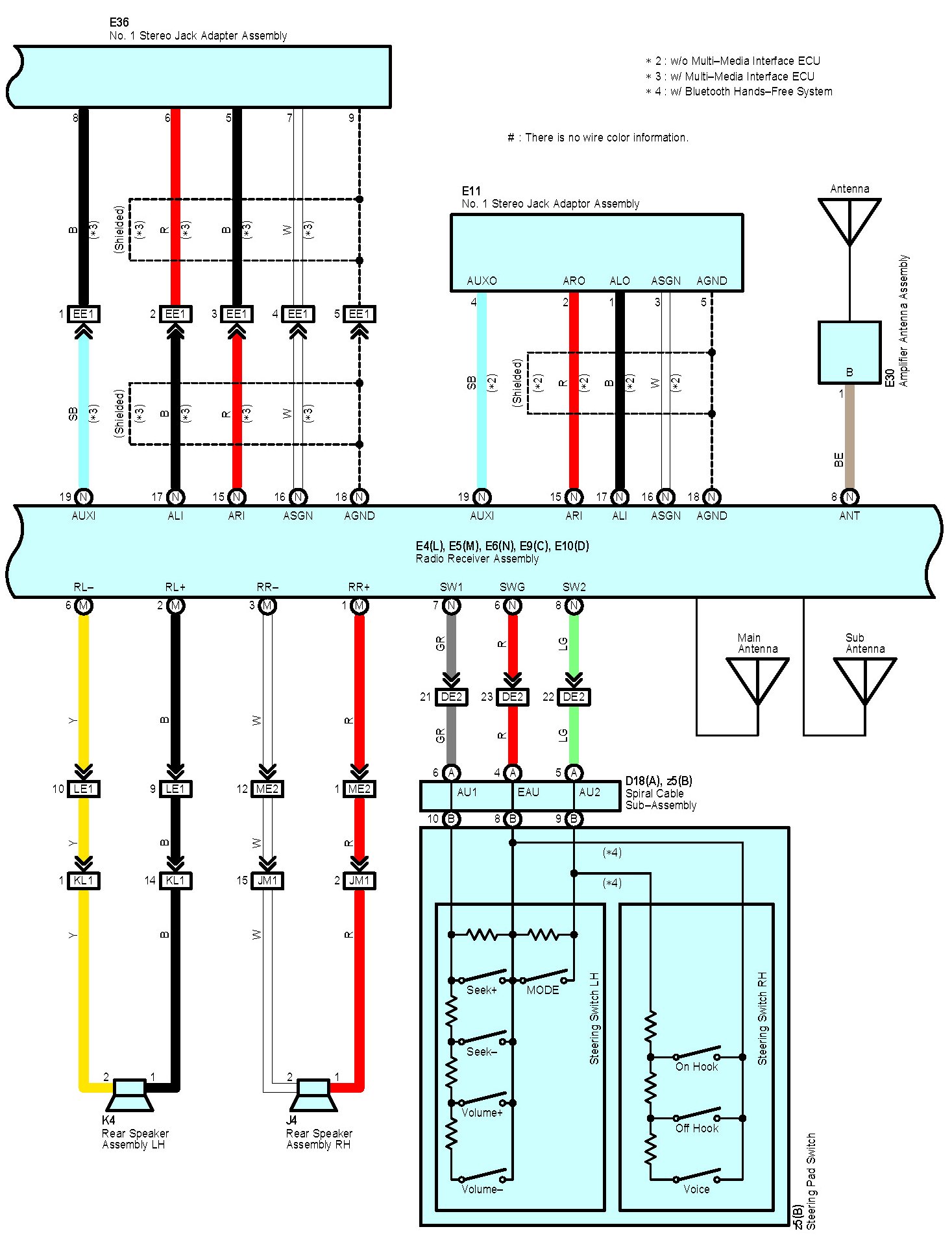

Audio System (6 Speaker) Part 2:

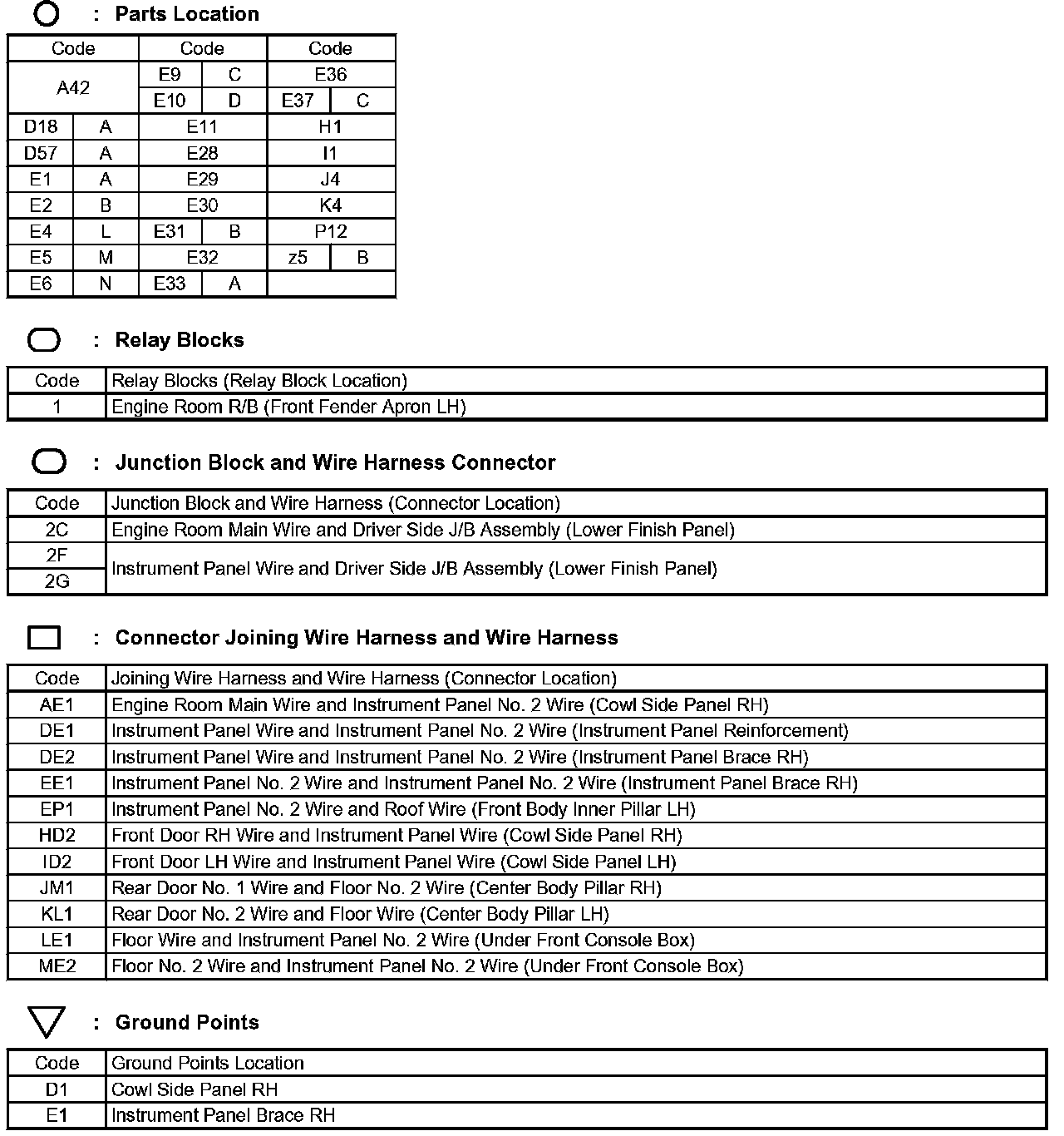

Audio System (6 Speaker) Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
