Door Lock Control and Back Door Opener (w/o Power Back Door w/o Back Door Closer)

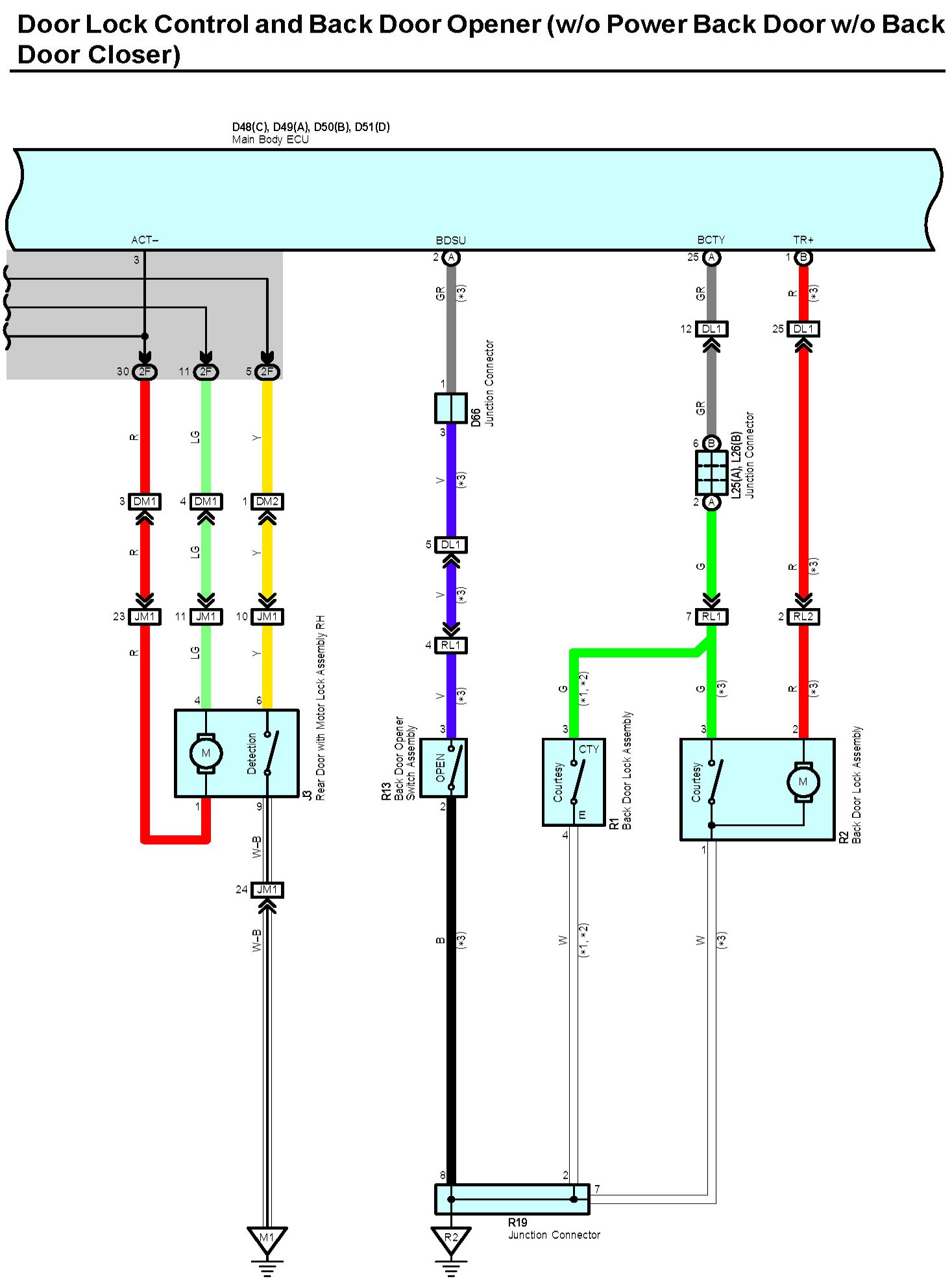

Door Lock Control And Back Door Opener (w/o Power Back Door w/o Back Door Closer) Part 1:

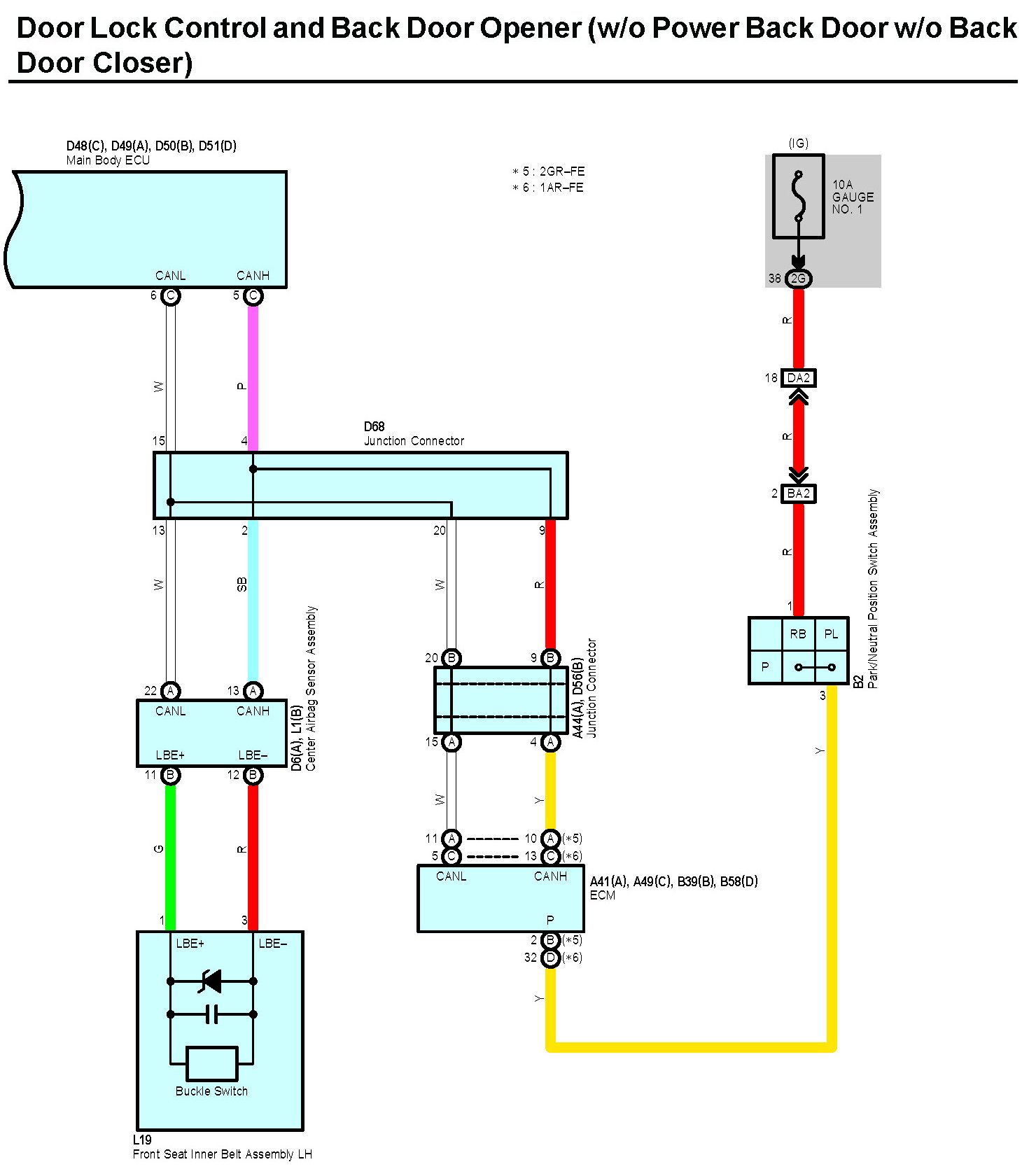

Door Lock Control And Back Door Opener (w/o Power Back Door w/o Back Door Closer) Part 2:

Door Lock Control And Back Door Opener (w/o Power Back Door w/o Back Door Closer) Part 3:

Door Lock Control And Back Door Opener (w/o Power Back Door w/o Back Door Closer) Part 4:

Door Lock Control And Back Door Opener (w/o Power Back Door w/o Back Door Closer) Part 5:

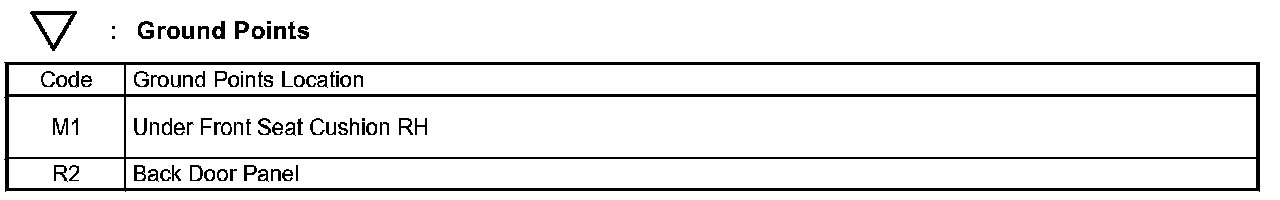

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
