Power Back Door and Back Door Opener (w/ Power Back Door)

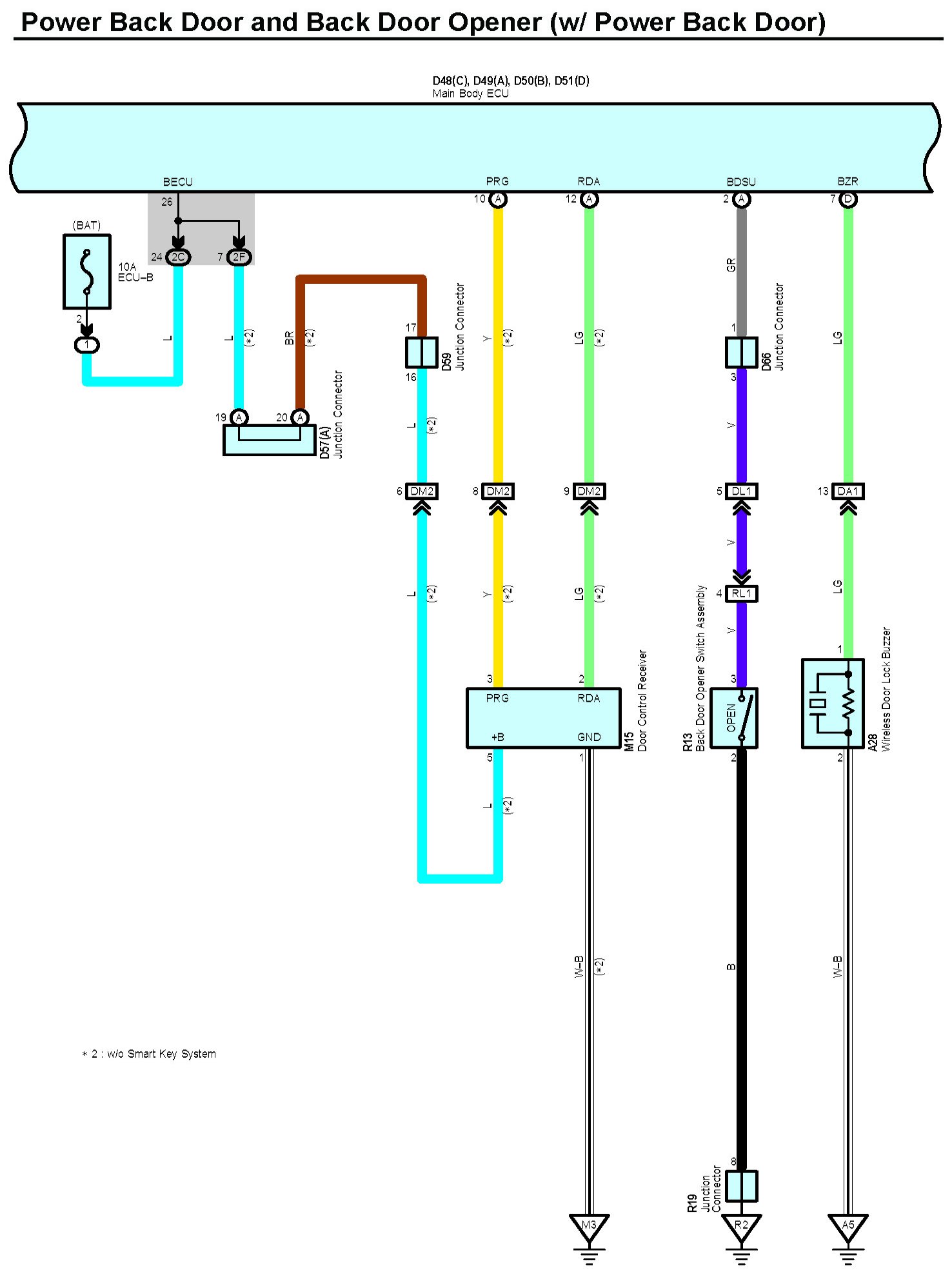

Power Back Door And Back Door Opener (w/ Power Back Door) Part 1:

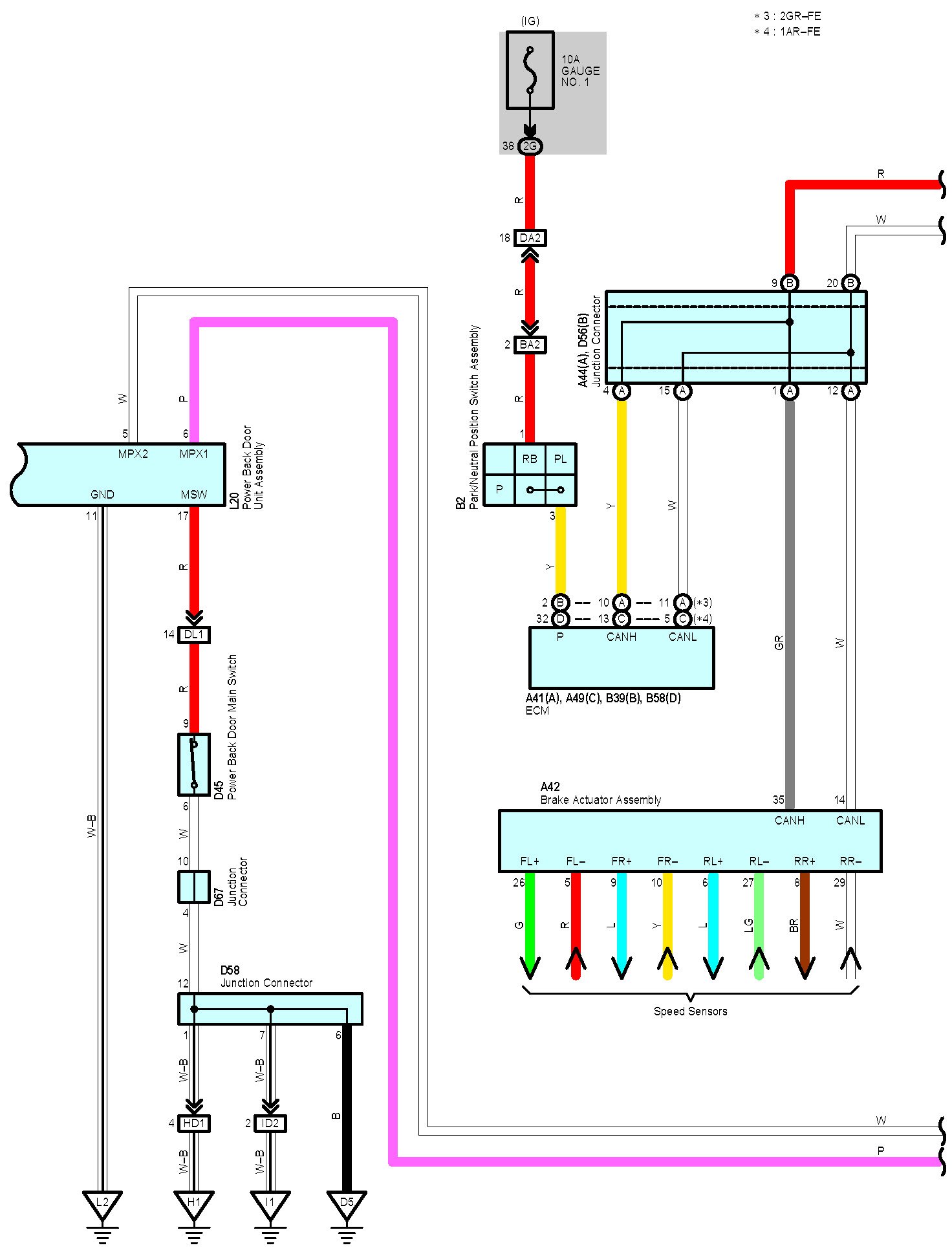

Power Back Door And Back Door Opener (w/ Power Back Door) Part 2:

Power Back Door And Back Door Opener (w/ Power Back Door) Part 3:

Power Back Door And Back Door Opener (w/ Power Back Door) Part 4:

Power Back Door And Back Door Opener (w/ Power Back Door) Part 5:

Power Back Door And Back Door Opener (w/ Power Back Door) Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
