Power Source Circuit

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: Power Source Circuit
- Power Source Circuit

DESCRIPTION

1. w/o Rear View Monitor System

(a) This circuit is the power source circuit for the accessory meter assembly. This circuit provides two types of power sources; one is a constant power source mainly used as a backup power source, and the other is a power source mainly used for signal transmission.

HINT
If the accessory meter assembly displays "1:00" when the ignition switch is turned off, then to ON again, the B terminal has a malfunction.

The maximum clock assembly margin of error is -4 to 4 seconds per day when the temperature is between -20°C (-4°F) and 60°C (140°F).

2. w/ Rear View Monitor System

(a) This circuit is the power source circuit for the accessory meter assembly. This circuit provides two types of power sources; one is a constant power source mainly used as a backup power source, and the other is a power source mainly used for signal transmission.

HINT
If the accessory meter assembly displays "1:00" when the ignition switch is turned off, then to ON again, the +B terminal has a malfunction.

The maximum clock assembly margin of error is -4 to 4 seconds per day when the temperature is between -20°C (-4°F) and 60°C (140°F).

WIRING DIAGRAM

1. w/o Rear View Monitor System

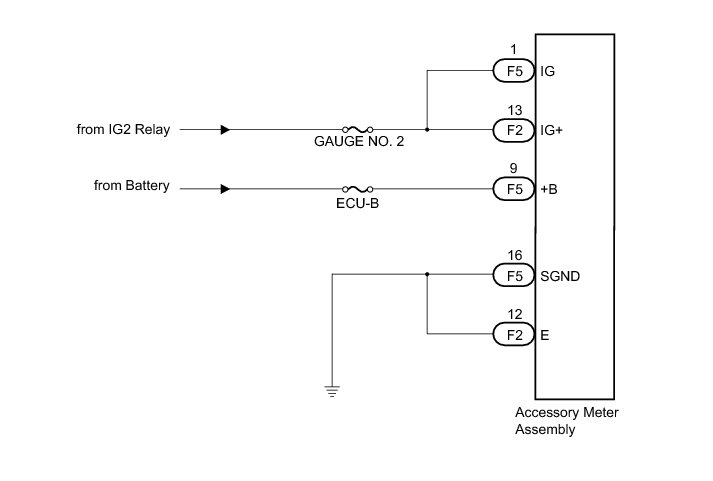

2. w/ Rear View Monitor System





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR

(a) w/o Rear View Monitor System

(1) Disconnect the F2 connector.





(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(3) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(b) w/ Rear View Monitor System

(1) Disconnect the F2 and F5 connectors.





(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

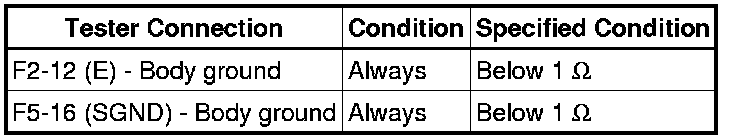

(3) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

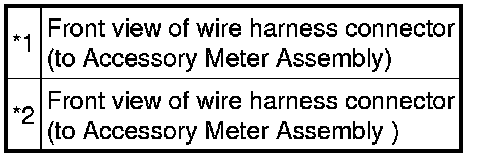

Text in Illustration





Result:





C -- REPAIR OR REPLACE HARNESS OR CONNECTOR

B -- REPLACE ACCESSORY METER ASSEMBLY (w/ Rear View Monitor System) Removal

A -- REPLACE ACCESSORY METER ASSEMBLY (w/o Rear View Monitor System) Removal
