Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: TERMINALS OF ECU

1. COMBINATION METER ASSEMBLY

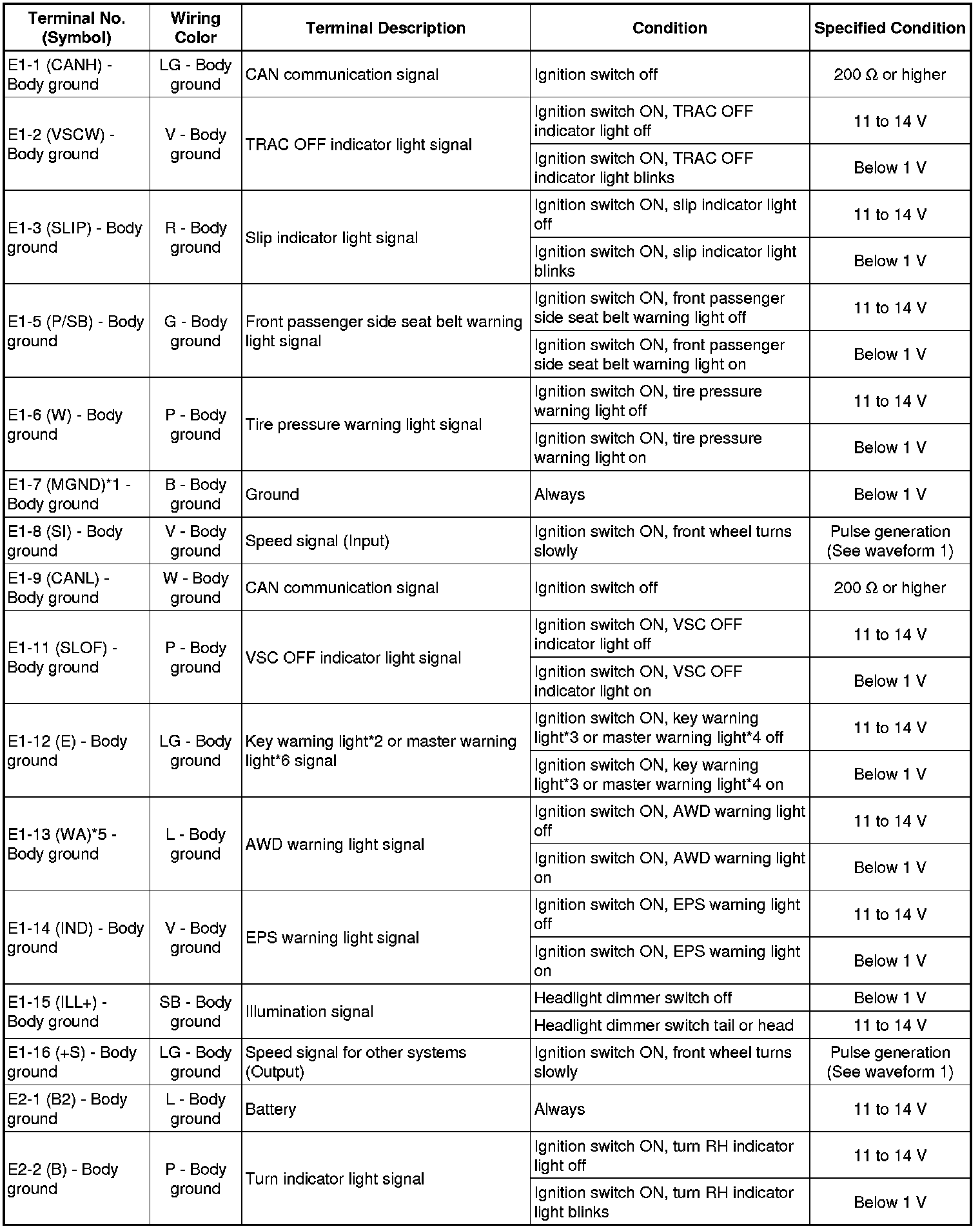

(a) Measure the voltage and resistance according to the value(s) in the table below.













*1: w/ Navigation System

*2: w/o Smart Key System

*3: w/ Rear View Monitor System

*4: w/o Rear View Monitor System

*5: for AWD

*6: w/ Smart Key System

(b) Waveform 1 (Reference): Using an oscilloscope:









HINT
When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

2. COMBINATION METER ASSEMBLY INNER CIRCUIT

(a) Combination Meter Assembly Inner Circuit





















*1: w/ Navigation System

*2: for AWD

*3: w/o Rear View Monitor System

*8: w/ Rear View Monitor System

3. ACCESSORY METER ASSEMBLY

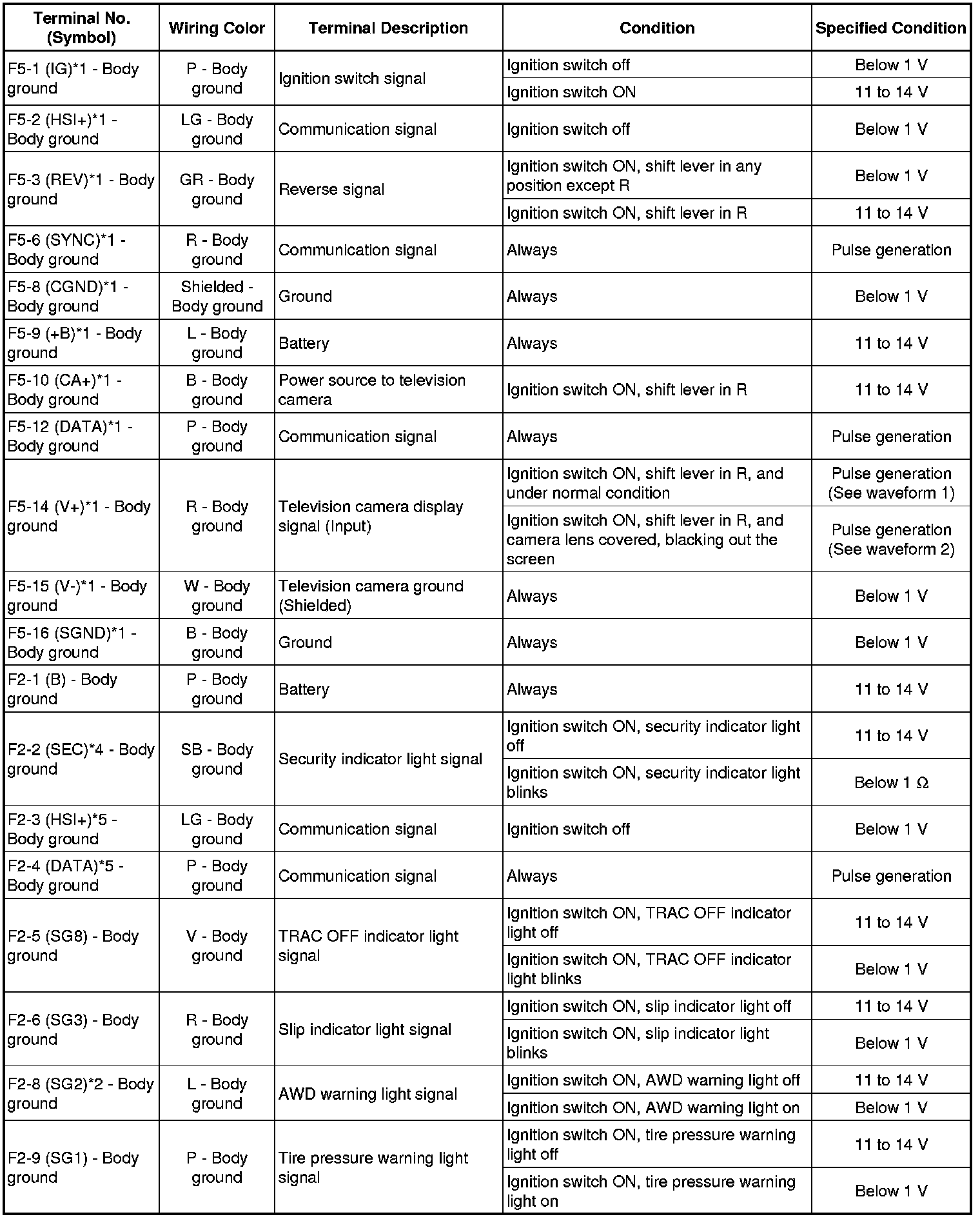

(a) Measure the voltage and resistance according to the value(s) in the table below.









*1: w/ Rear View Monitor System

*2: for AWD

*3: w/ Smart Key System, w/o Rear View Monitor System

*4: w/ Theft Deterrent System

*5: w/o Rear View Monitor System

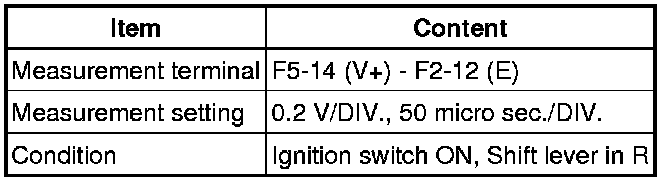

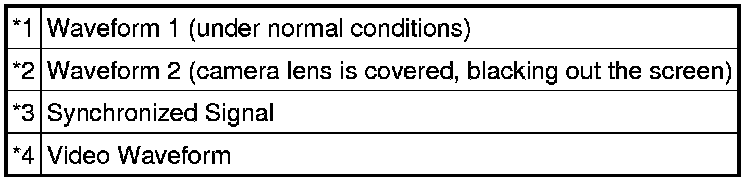

(b) Reference (Oscilloscope waveform):

(1) Waveform 1 (under normal condition)









HINT
The video waveform changes according to the image that the television camera assembly projects.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image that the television camera assembly projects.

Text in Illustration

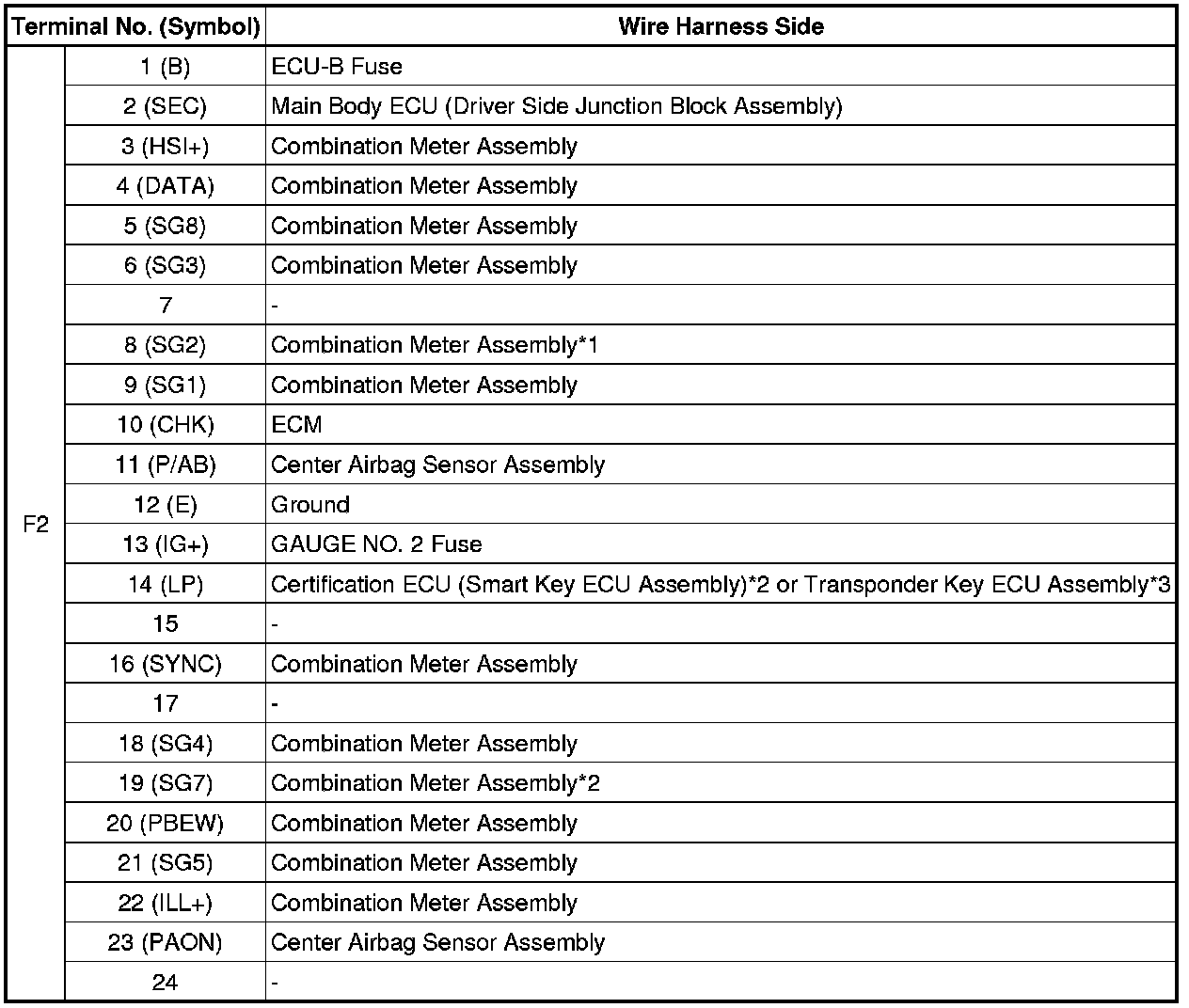

4. ACCESSORY METER ASSEMBLY INNER CIRCUIT

(a) w/o Rear View Monitor System













*1: for AWD

*2: w/ Smart Key System

*3: w/o Smart Key System

(b) w/ Rear View Monitor System













*1: for AWD

*2: w/ Smart Key System

*3: w/o Smart Key System
