Installation

LIGHTING (INT): ROOM LIGHT: INSTALLATION

1. INSTALL SPOT LIGHT ASSEMBLY

(a) Engage the 8 claws to install the spot light sub-assembly to the spot light assembly.

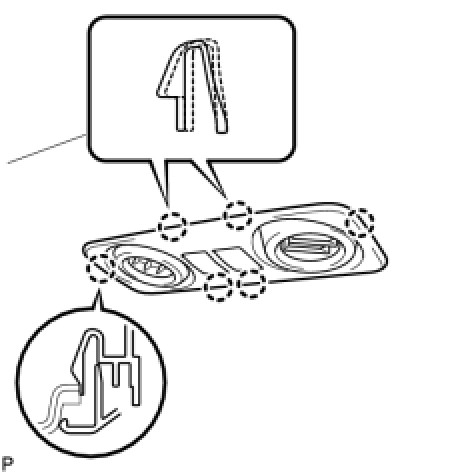

(b) Engage the 6 claws to install the spot light assembly.
