Pinout Values and Diagnostic Parameters

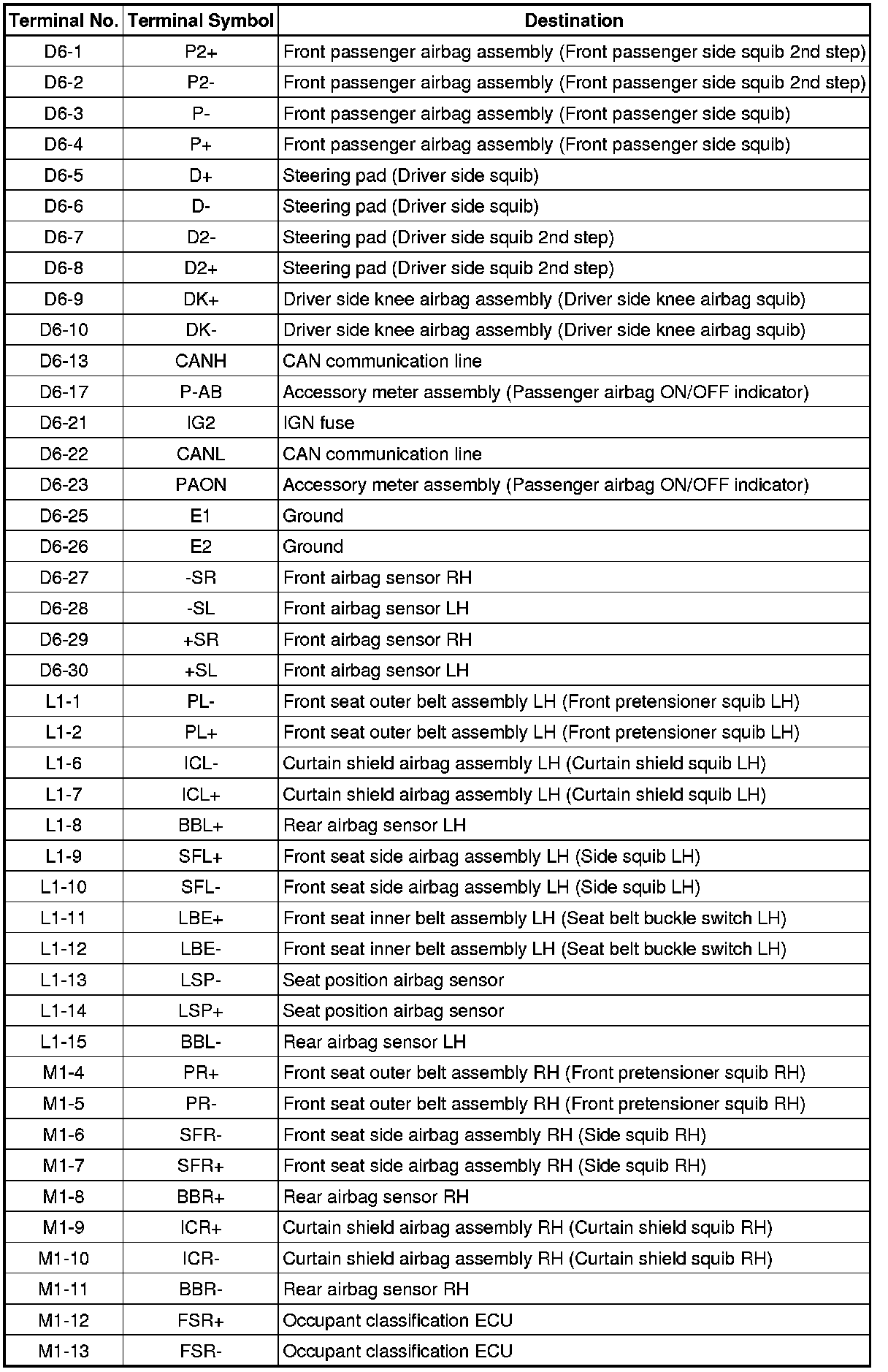

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

1. CENTER AIRBAG SENSOR ASSEMBLY
