Fluid Pan, A/T

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

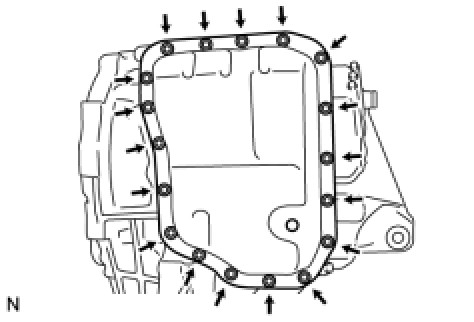

Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 17 bolts.






Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)

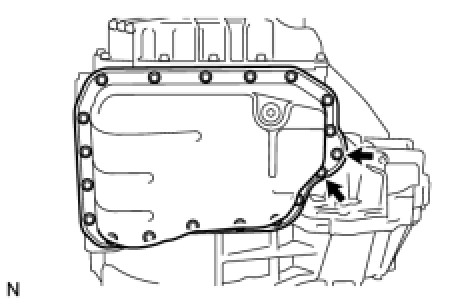

Install the automatic transaxle oil pan sub-assembly with the 2 bolts.






Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)


AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

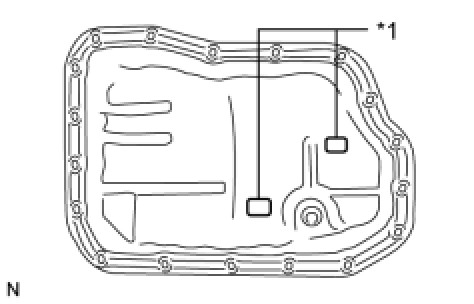

Install the 2 magnets in the automatic transaxle oil pan sub-assembly.






Text in Illustration






Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 18 bolts.






Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)
