Electrical Specifications

SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

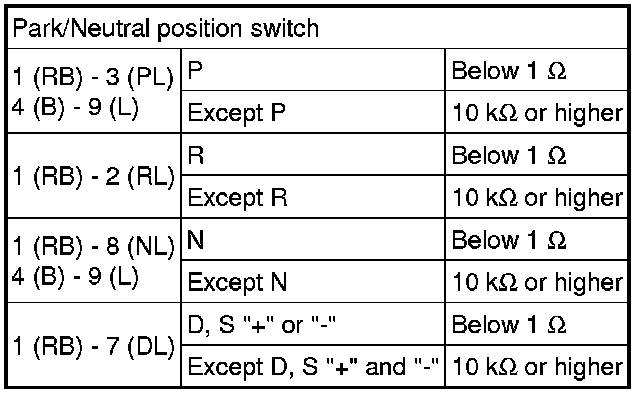

Park/Neutral Position Switch

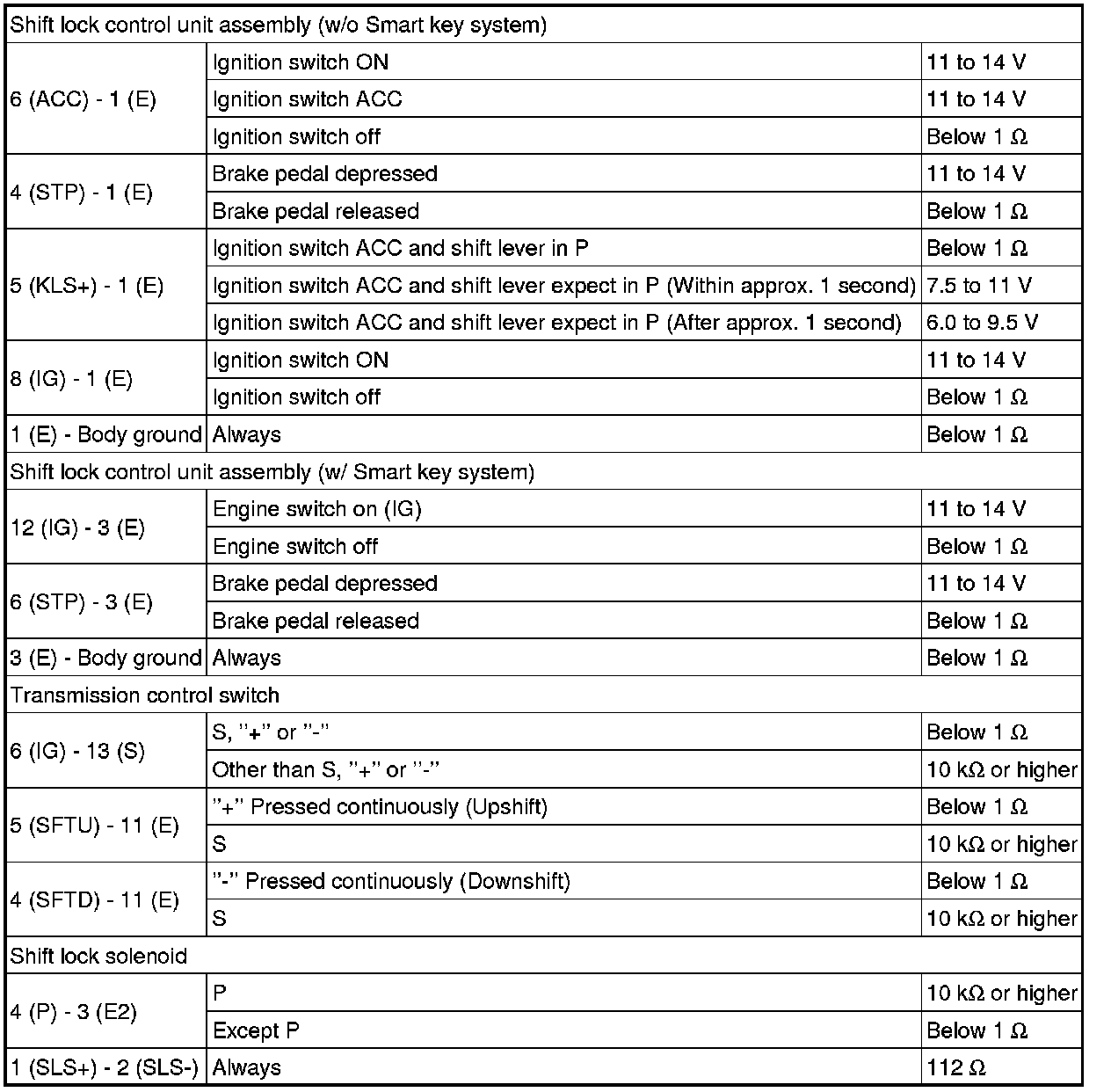

Shift Lever

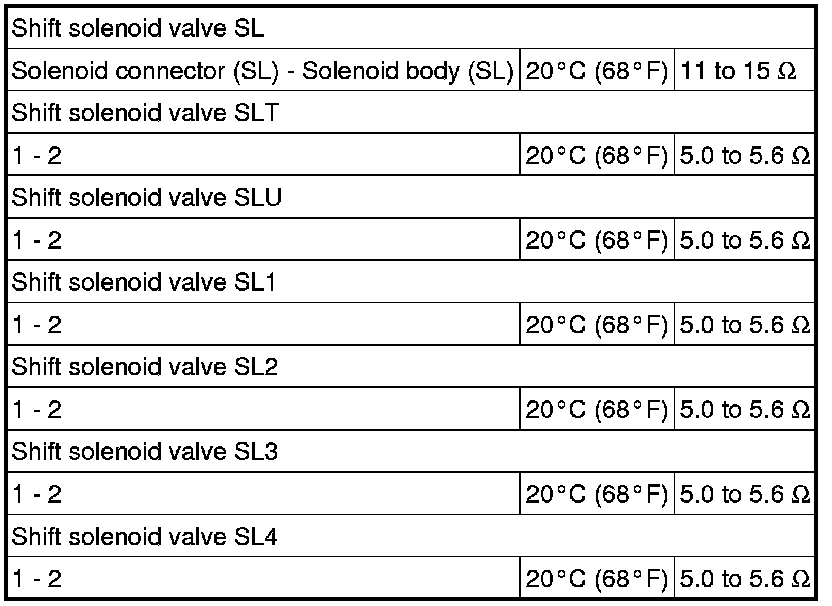

Shift Solenoid Valve
