Home >> Toyota >> 2011 >> Venza FWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Specifications >> Capacity Specifications

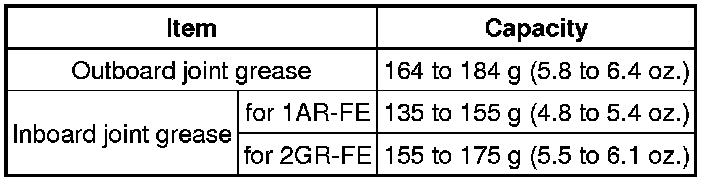

Capacity Specifications





PREPARATION: DRIVE SHAFT / PROPELLER SHAFT: LUBRICANT

Front Drive Shaft





Rear Drive Shaft
