Seats: Specifications

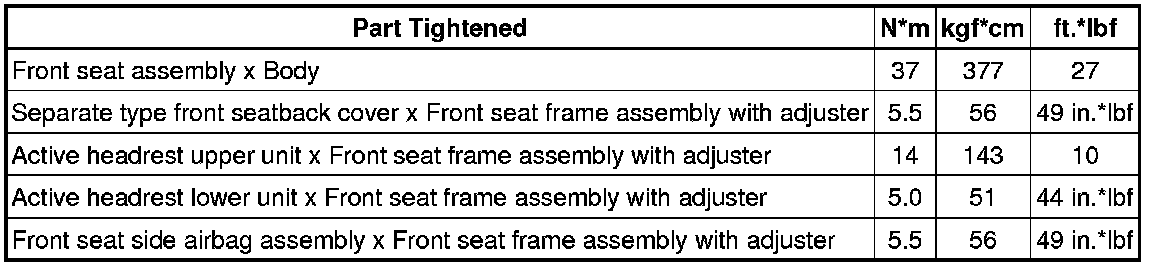

SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

FRONT SEAT ASSEMBLY (for Manual Seat Type RH Side)





FRONT SEAT ASSEMBLY (for Power Seat)





REAR SEAT ASSEMBLY
