36 - 37 - Position of Parts In Engine Compartment
36 - 37 - Position of Parts In Engine Compartment

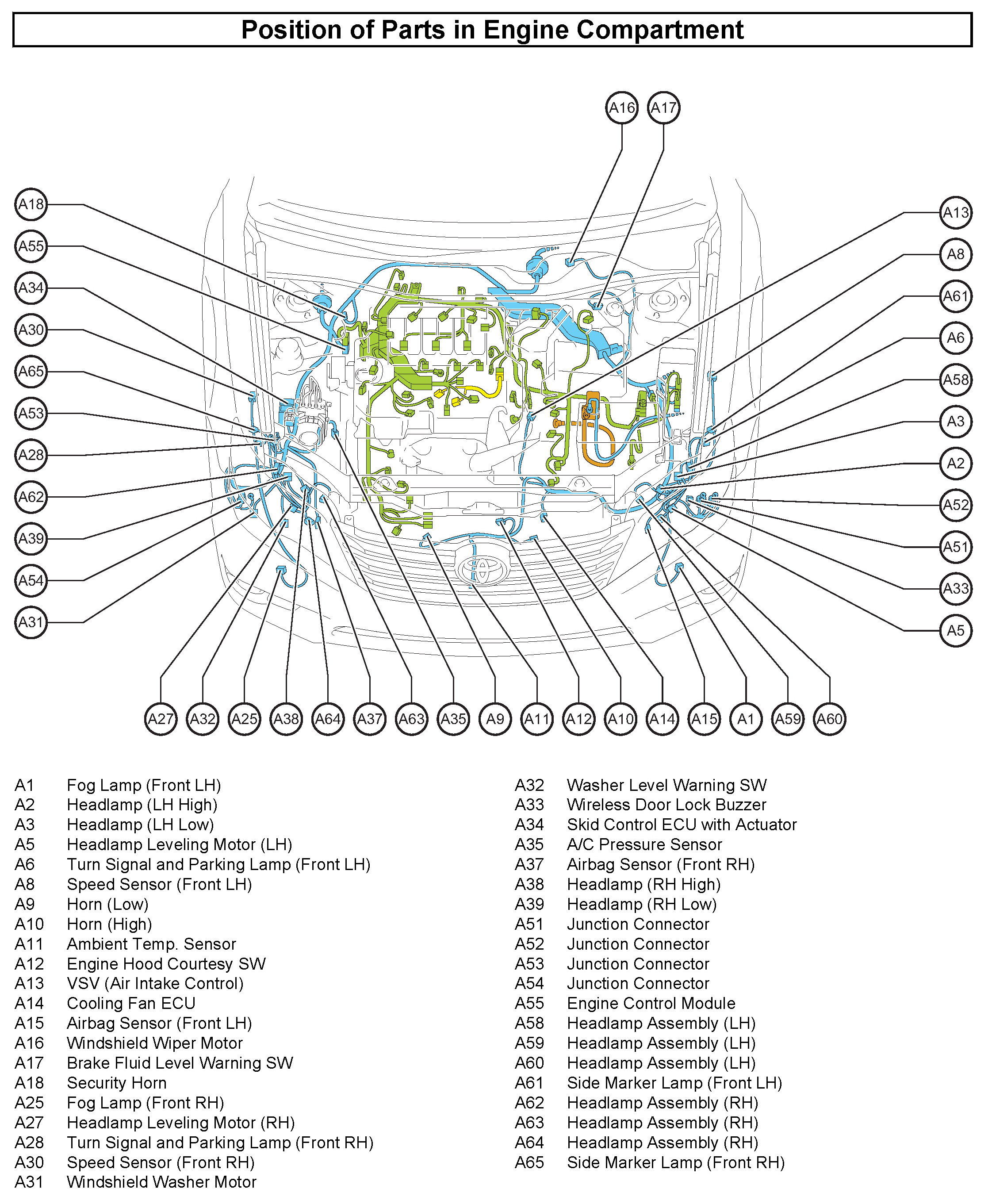

36 - Position of Parts in Engine Compartment:
37 - Position of Parts in Engine Compartment:
