42 - 43 - Position of Parts In Body

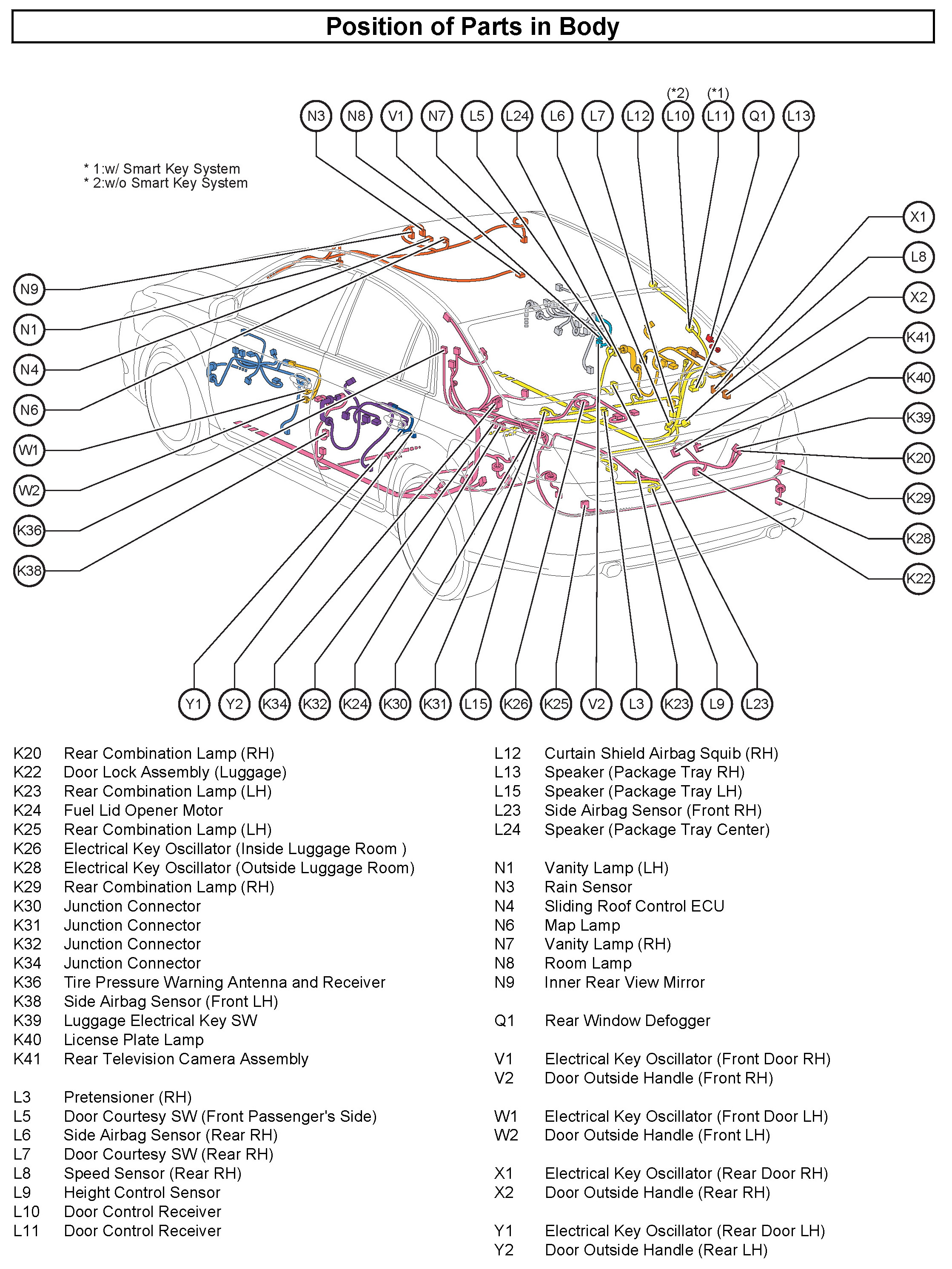

42 - Position of Parts in Body:






43 - Position of Parts in Body:
