Toyota
>>
2012
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Description and Operation
>>
System Diagram
System Diagram
AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM
1.

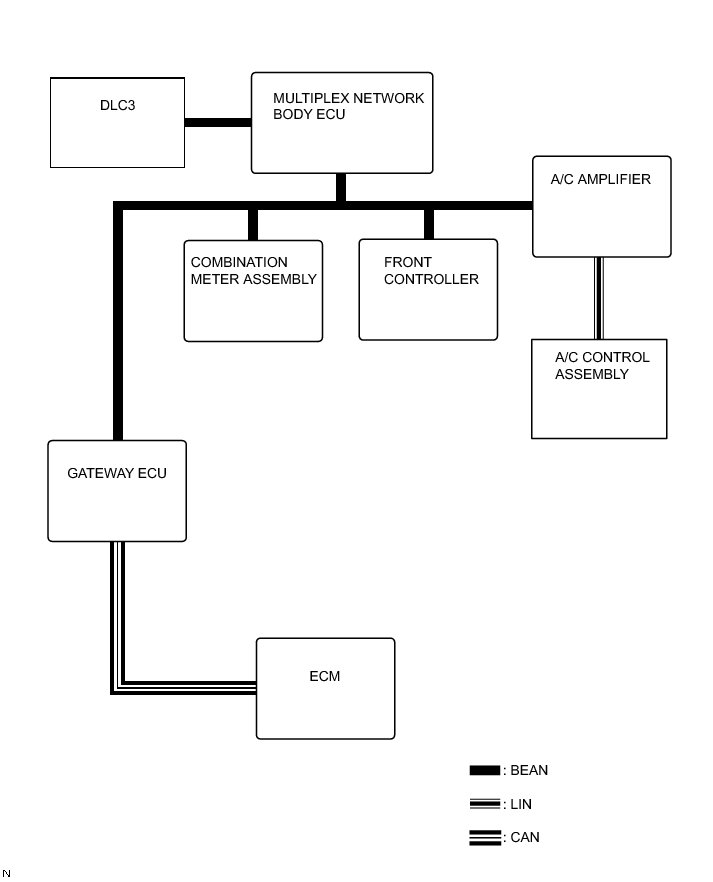

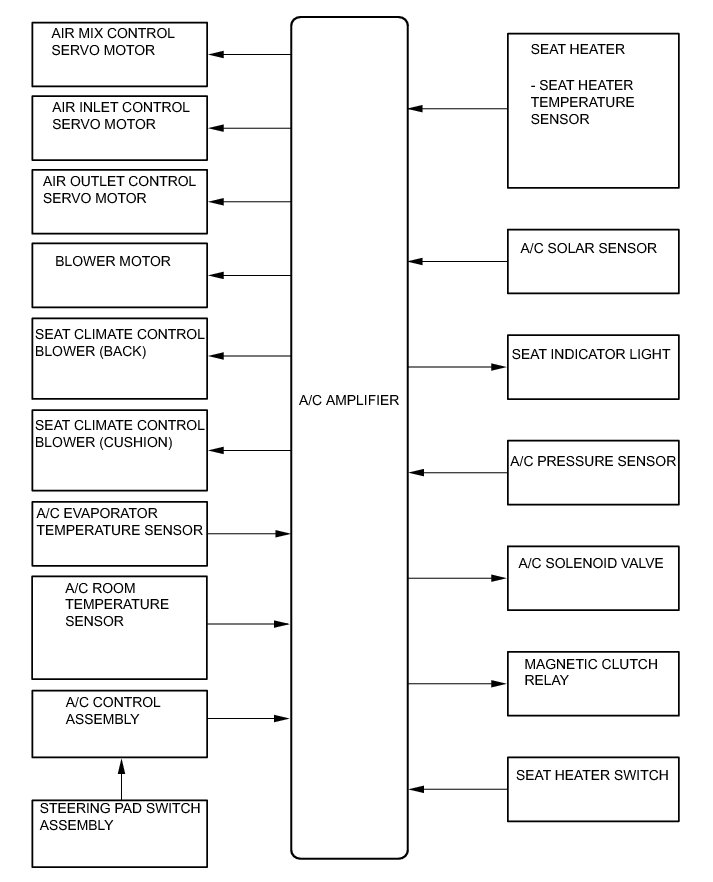

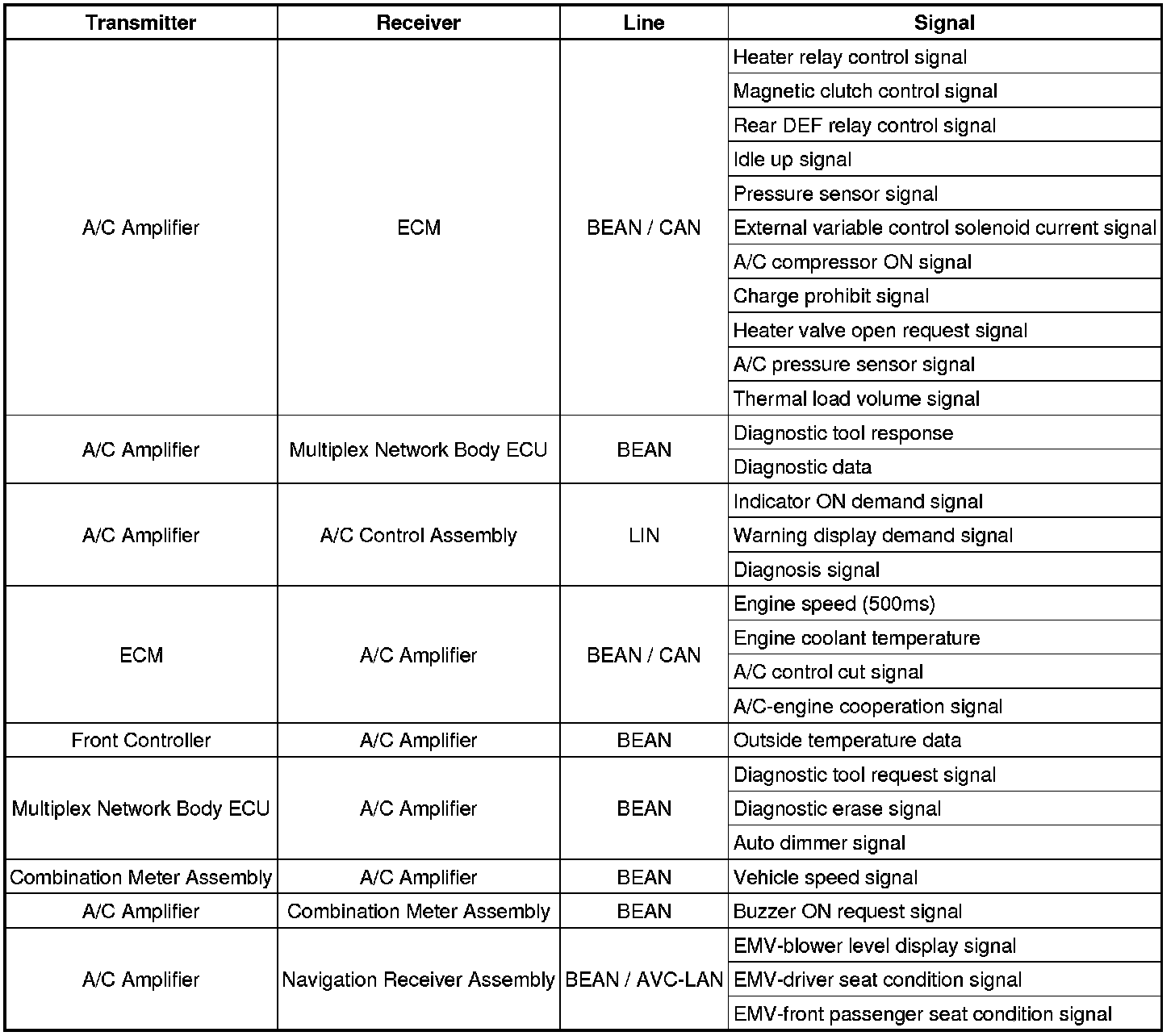

SYSTEM DIAGRAM
