Scan Tool Testing and Procedures

AIR CONDITIONING: AIR CONDITIONING SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or writing is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference value. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Enter the following menus: Body Electrical / Air Conditioner / Data List.

Air Conditioner









2. ACTIVE TEST

HINT
Using Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

It is possible to display the Data List on Techstream during the Active Test.

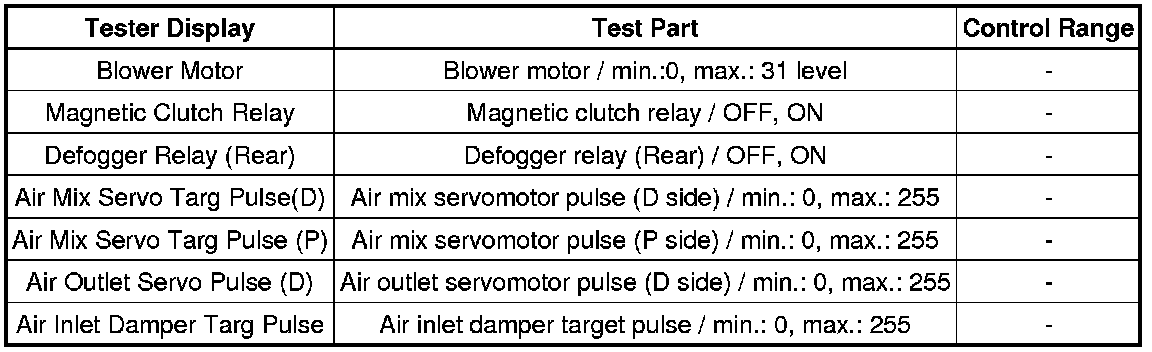

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Enter the following menus: Body Electrical / Air Conditioner / Active Test.

Air Conditioner
