System Diagram
System Diagram

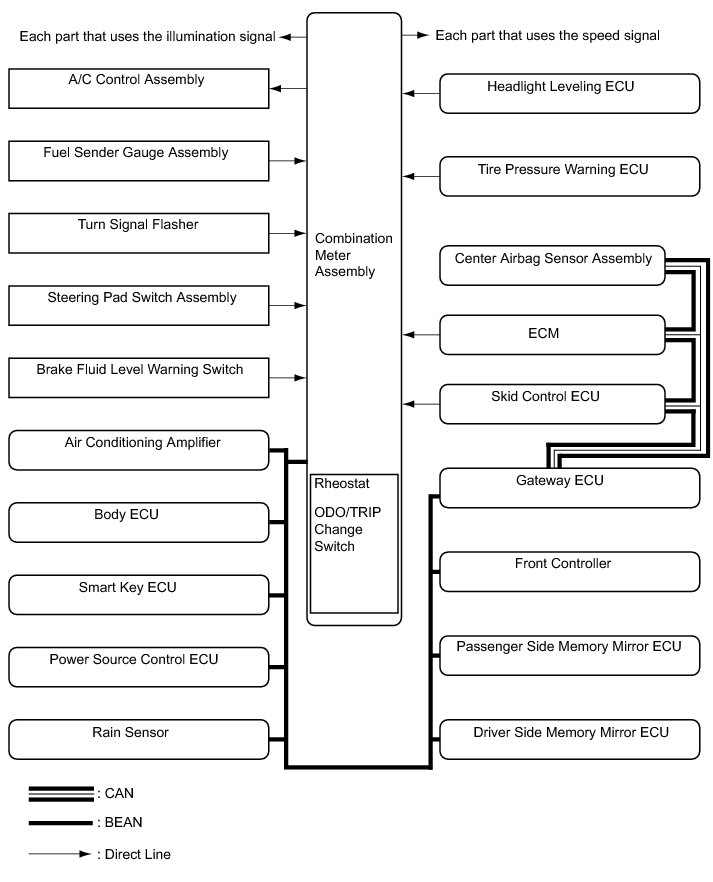

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM
1.
COMBINATION METER ASSEMBLY
