Flex Plate
DRIVE PLATE AND RING GEAR OR FLYWHEELInstall the front spacer, drive plate and rear spacer on the crankshaft.

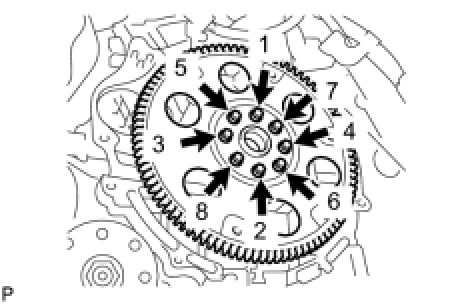

Install and tighten the 8 mounting bolts uniformly in several steps.
Torque 83 Nm (850 kgf-cm, 61 ft-lbf)
Install the front spacer, drive plate and rear spacer on the crankshaft.
Install and tighten the 8 mounting bolts uniformly in several steps.
Torque 83 Nm (850 kgf-cm, 61 ft-lbf)
