System Diagram

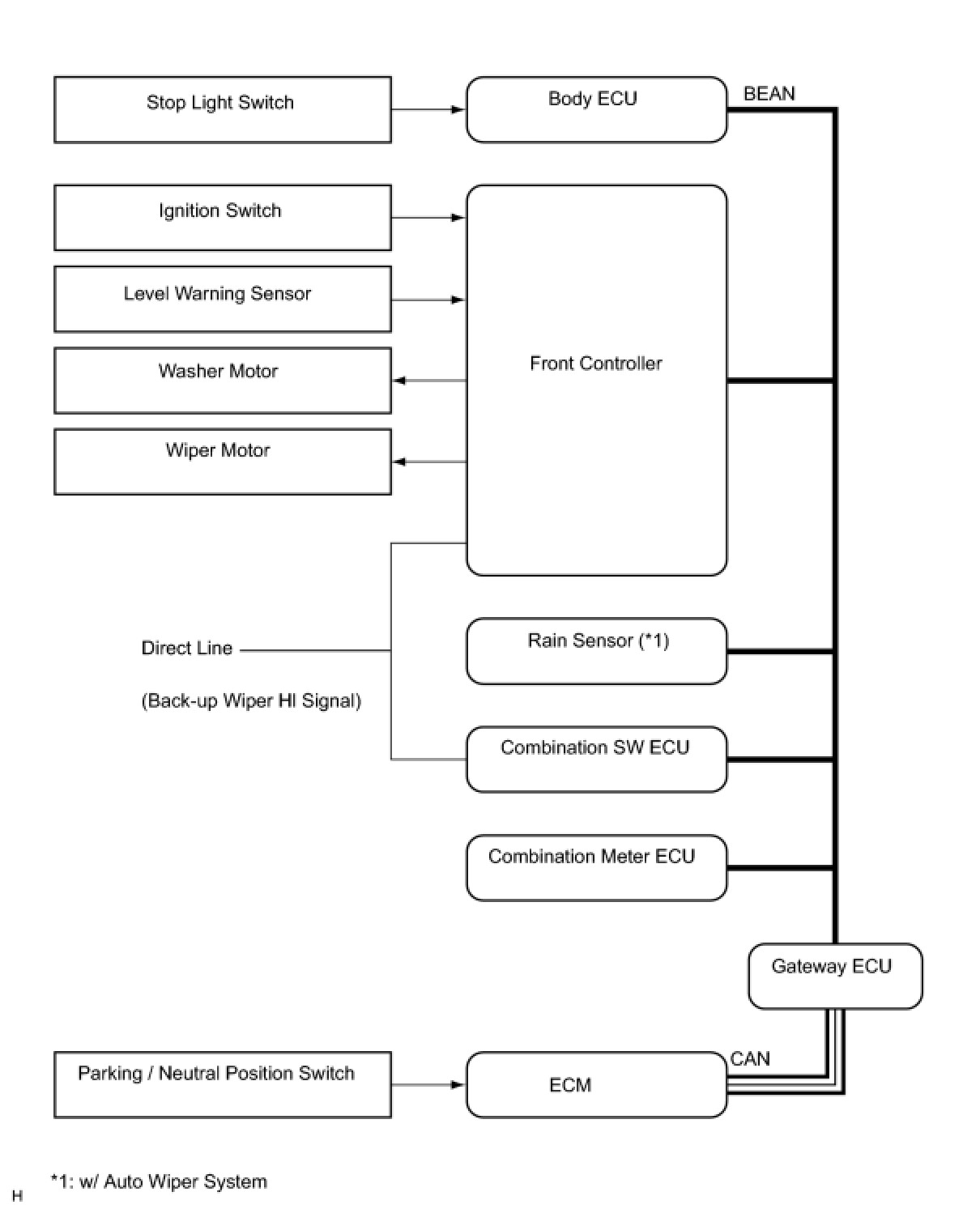

WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM

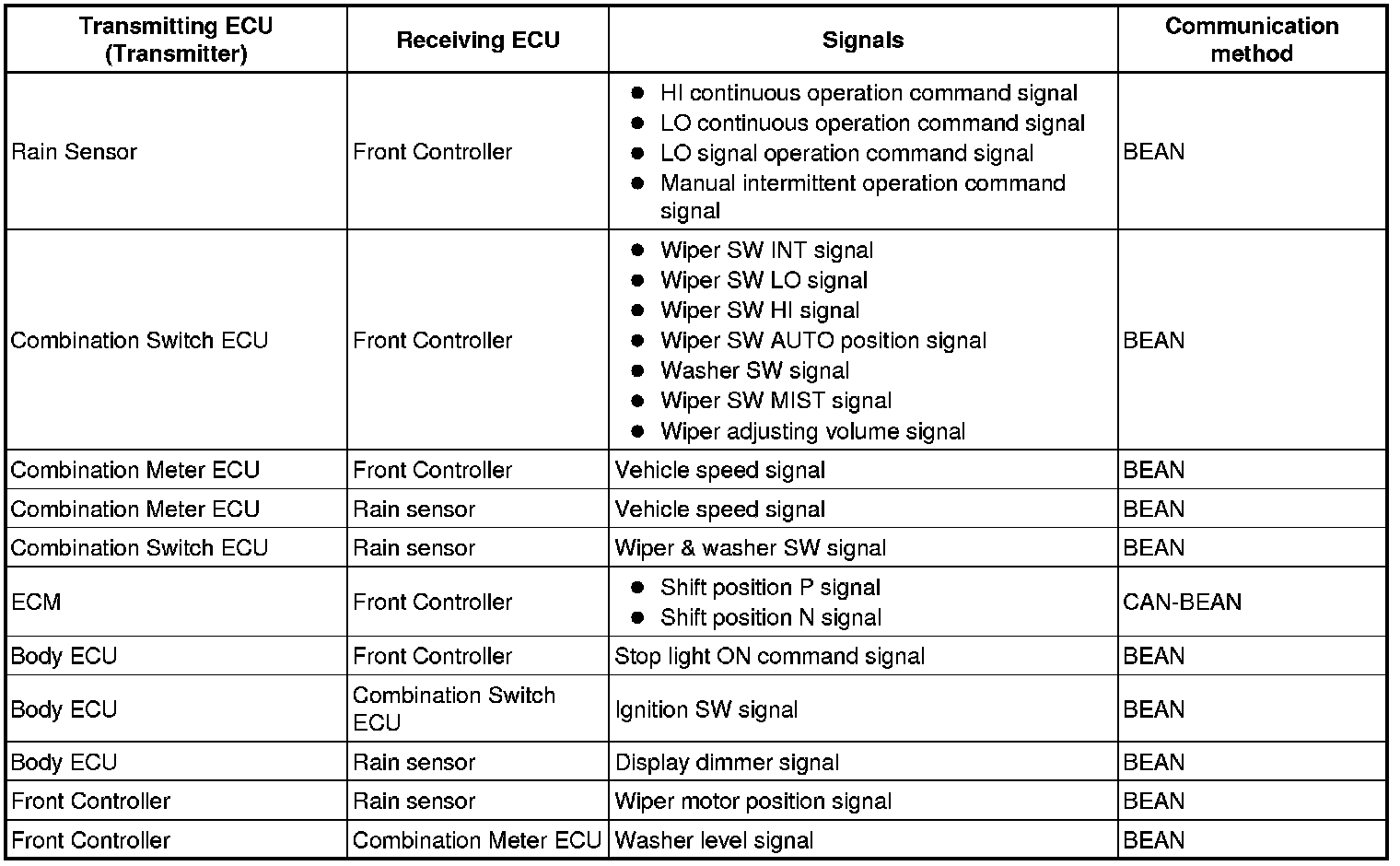

Input and output signal of each ECU
HINT
Wiper operation is controlled, in principle, by the front controller.
The rain sensor, however, controls the auto wiper function.
WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM
Input and output signal of each ECU
HINT
Wiper operation is controlled, in principle, by the front controller.
The rain sensor, however, controls the auto wiper function.
