Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

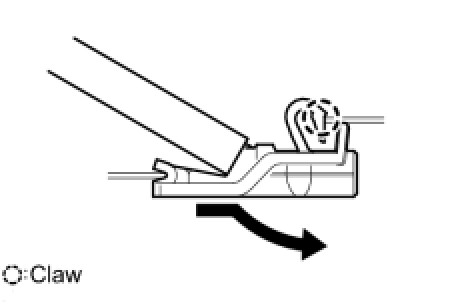

(a) Using a screwdriver, separate the washer nozzle as shown in the illustration.





NOTICE:
Be careful not to damage the glass.

(b) Select a washer nozzle so that the contact area is within the standard. Replace the nozzle with the selected one.
