Steering Mounted Controls Assembly: Testing and Inspection

AUDIO / VIDEO: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH

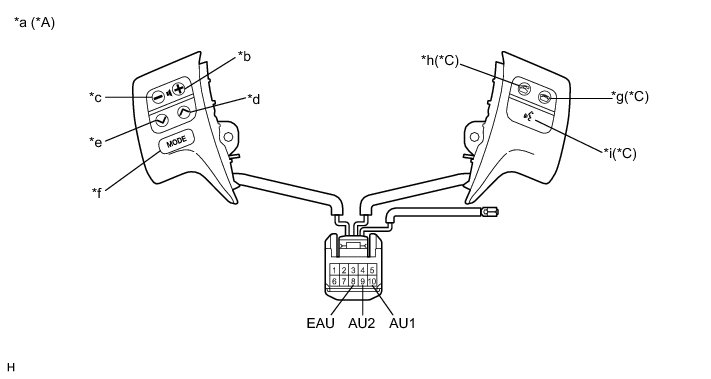

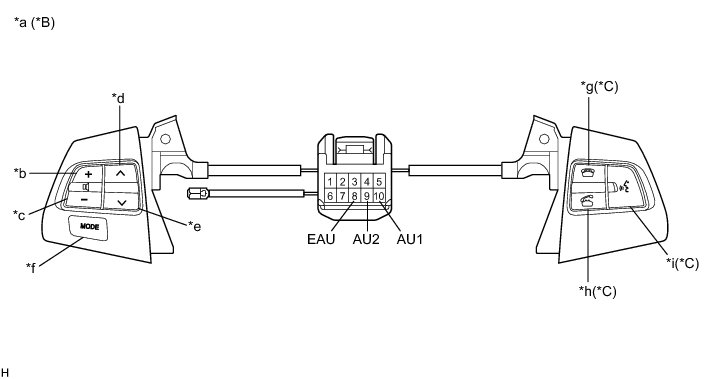

(a) Measure the resistance according to the values in the table below.

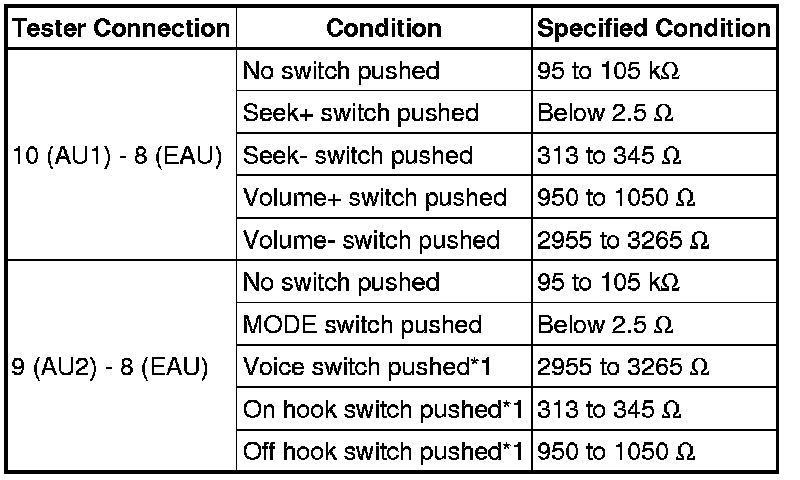

Standard Resistance:





* *1: except Radio Receiver Type

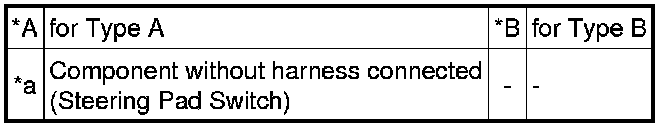

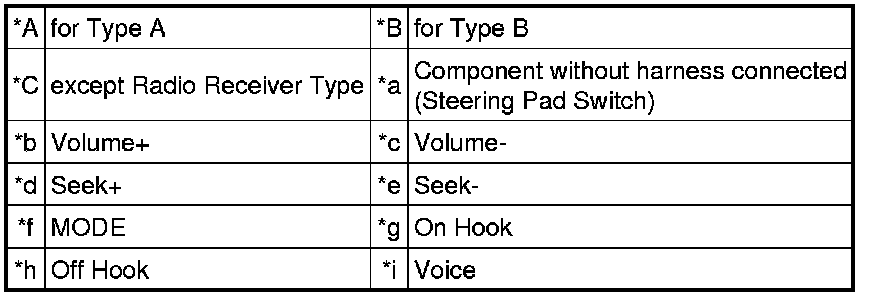

Text in Illustration





If the result is not as specified, replace the steering pad switch.

(b) Check the illumination.

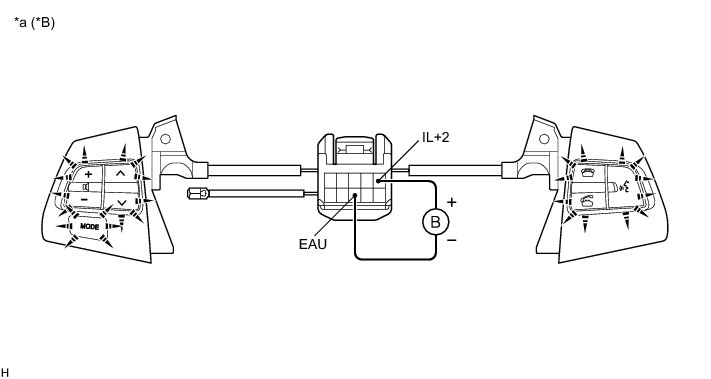

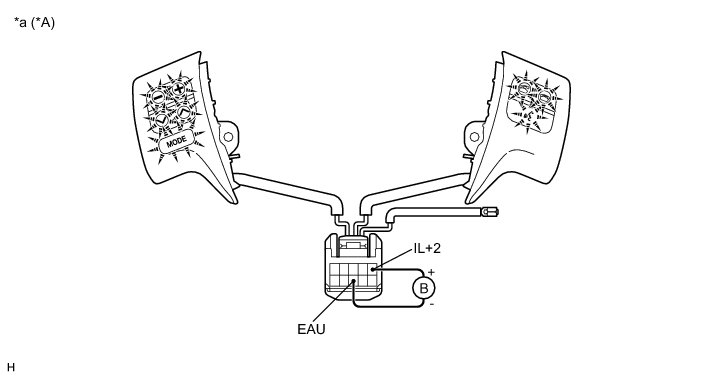

(1) Connect a battery positive (+) lead to terminal IL+2 and a negative (-) lead to terminal EAU of the steering pad switch connector.

(2) Check that the switch illumination comes on.

OK:

Steering pad switch illumination comes on.

HINT
If the result is not as specified, replace the steering pad switch.
