Body and Frame: Diagrams

COMPONENTS

a. Front bumper






b. Side Mudguard

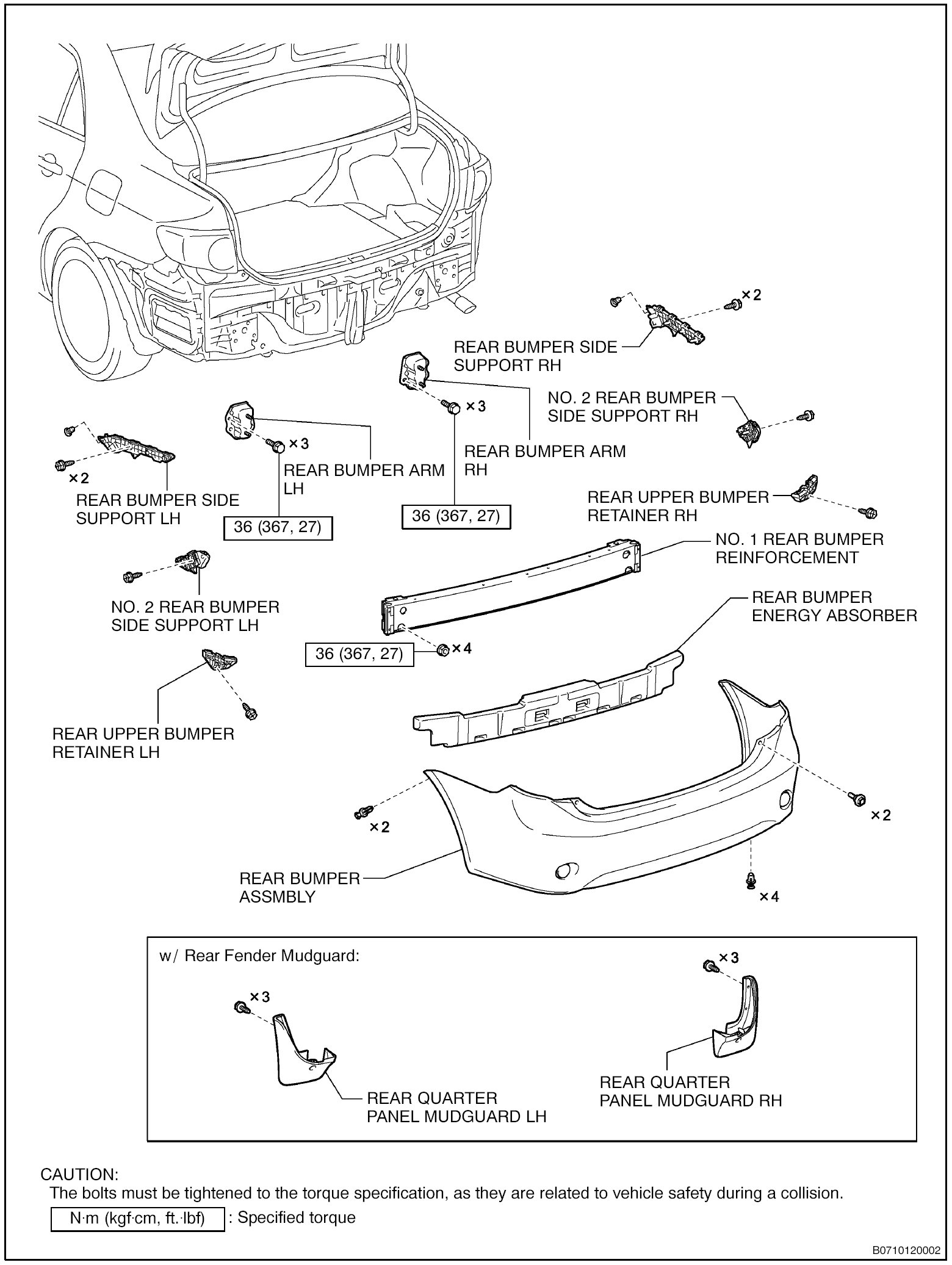

c. Rear bumper

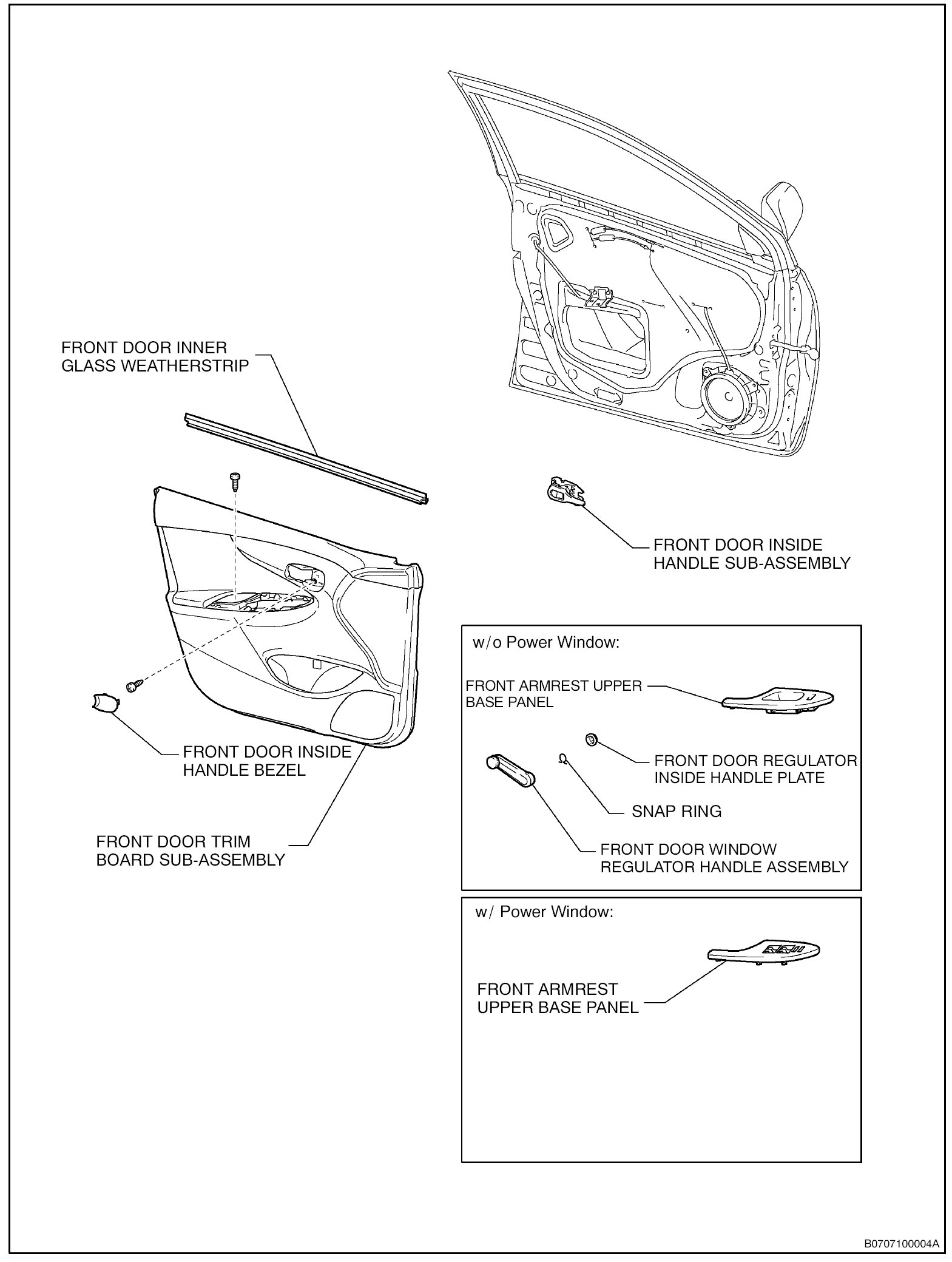

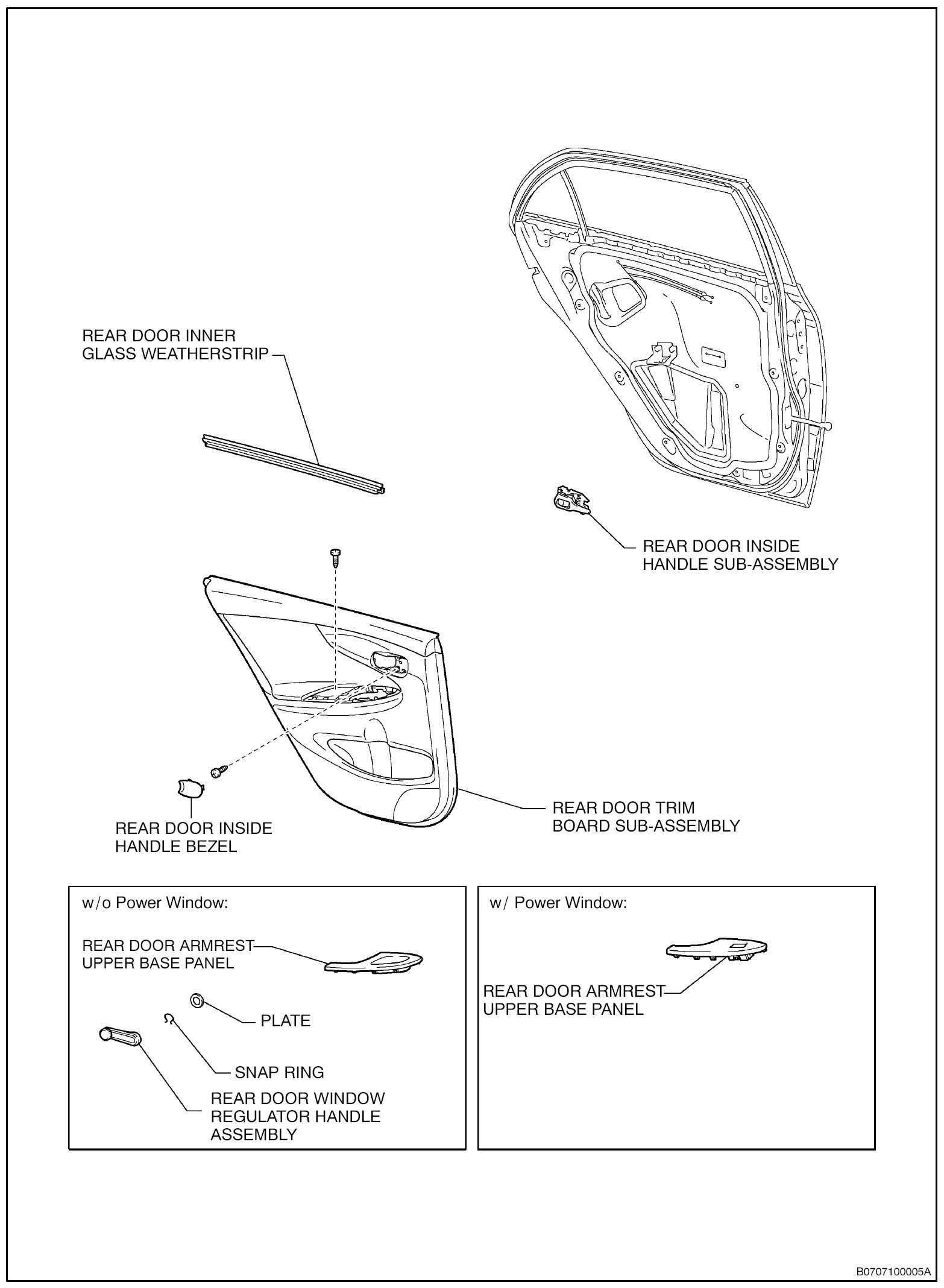

d. Door












e. Cowl Top Ventilator Louver






f. Instrument panel

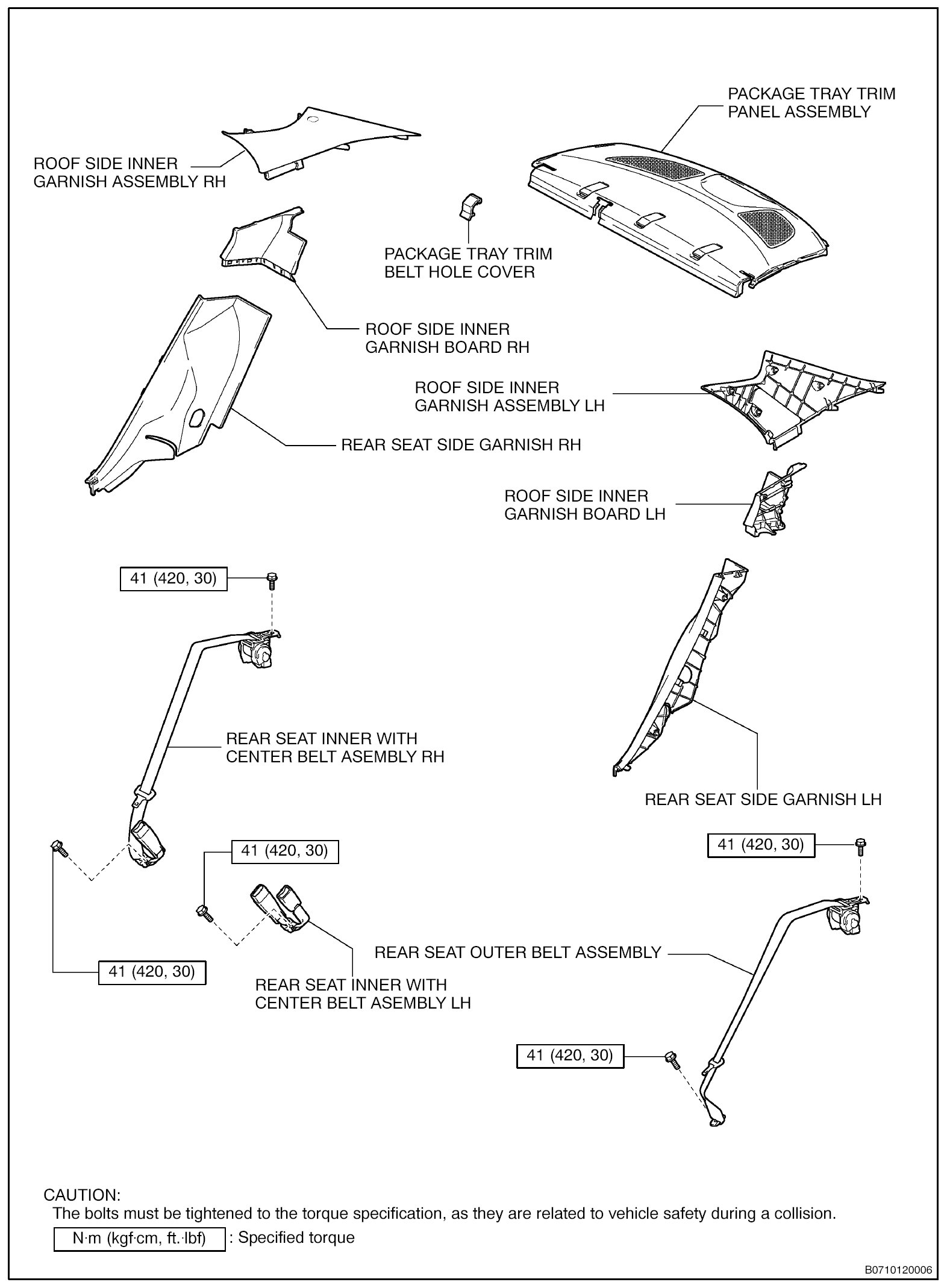

g. Interior trim

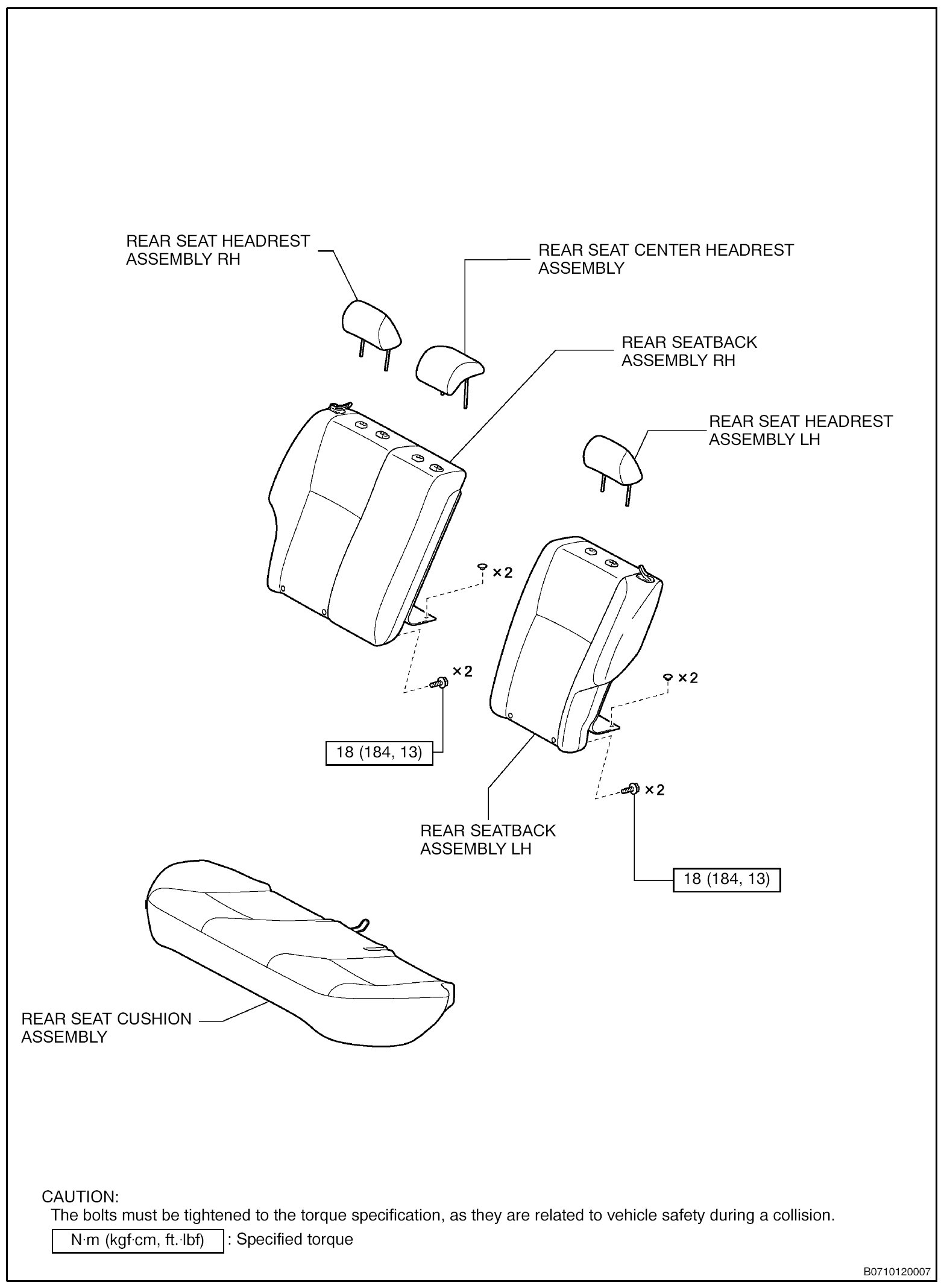

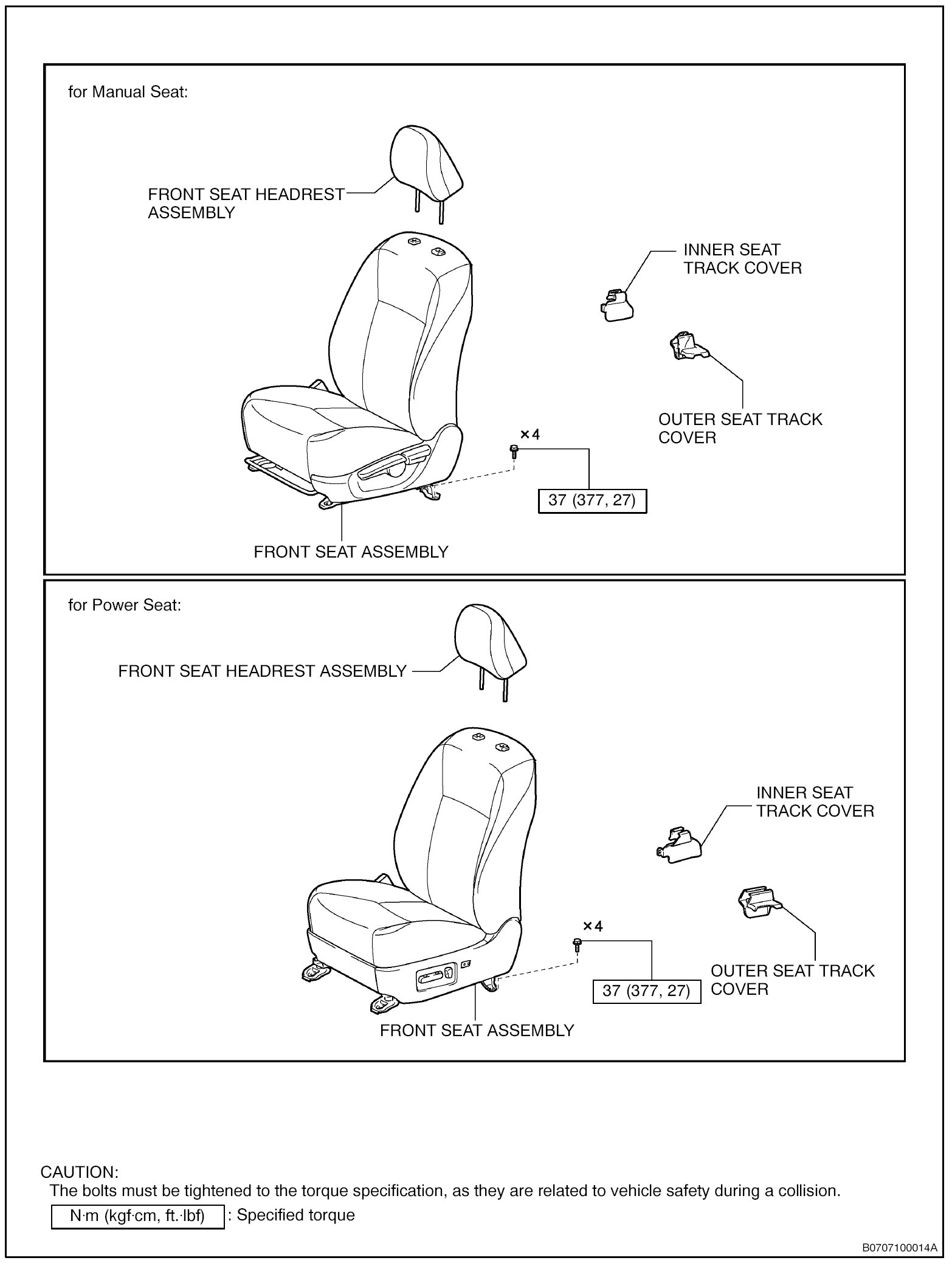

h. Seat
