Clutch Switch: Testing and Inspection

CRUISE CONTROL: CLUTCH SWITCH: INSPECTION

1. INSPECT CLUTCH SWITCH ASSEMBLY

(a) Remove the clutch switch assembly Removal.





(b) Measure the resistance according to the value(s) in the table below.

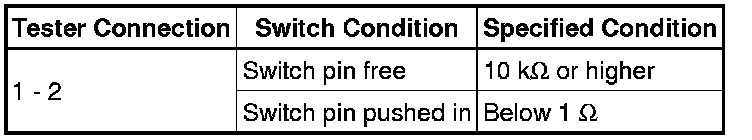

Standard Resistance:





If the result is not as specified, replace the clutch switch.
