60-63 - Position of Parts In Body
60-63 - Position of Parts In Body

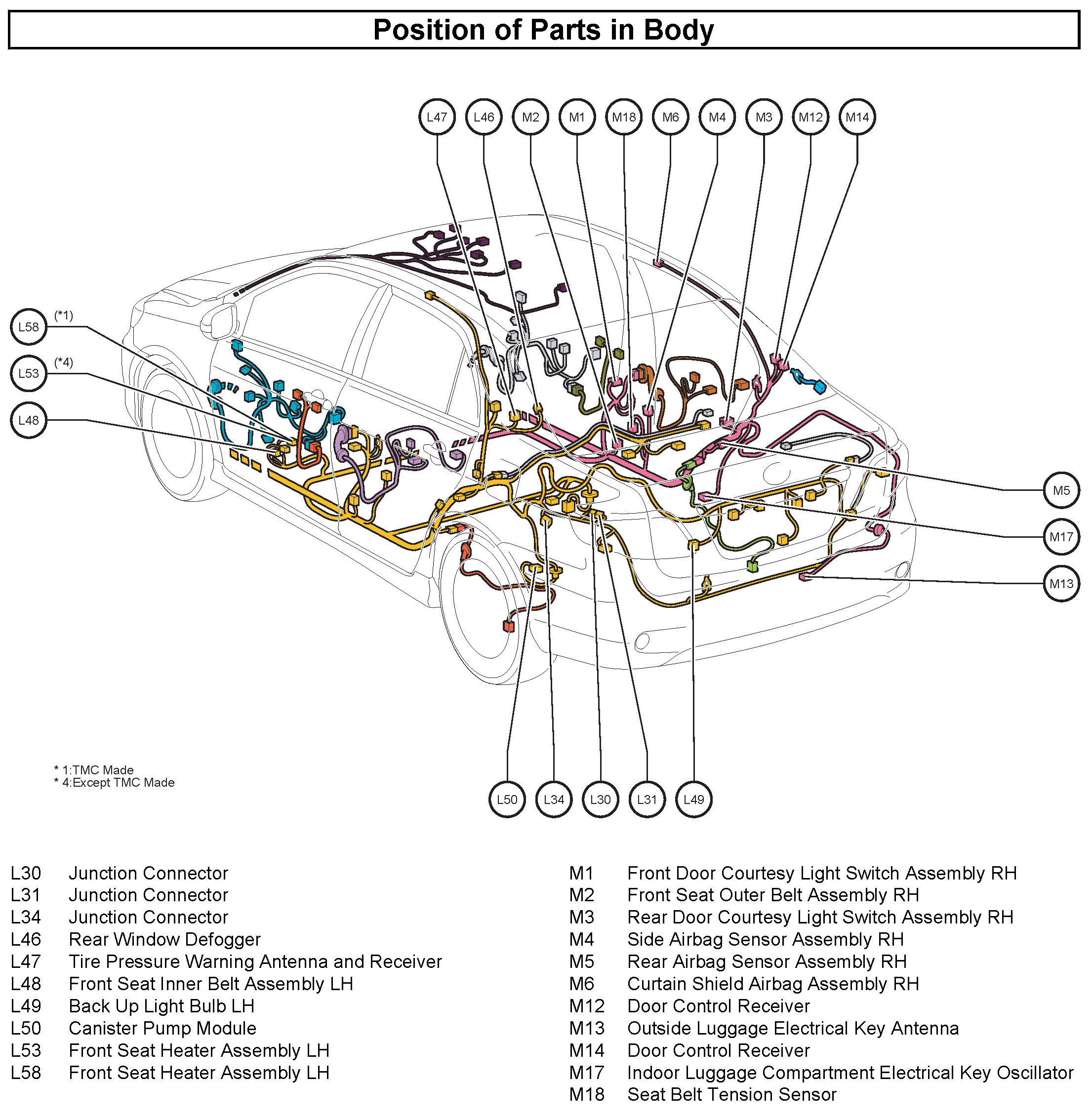

60 - Position of Parts in Body:

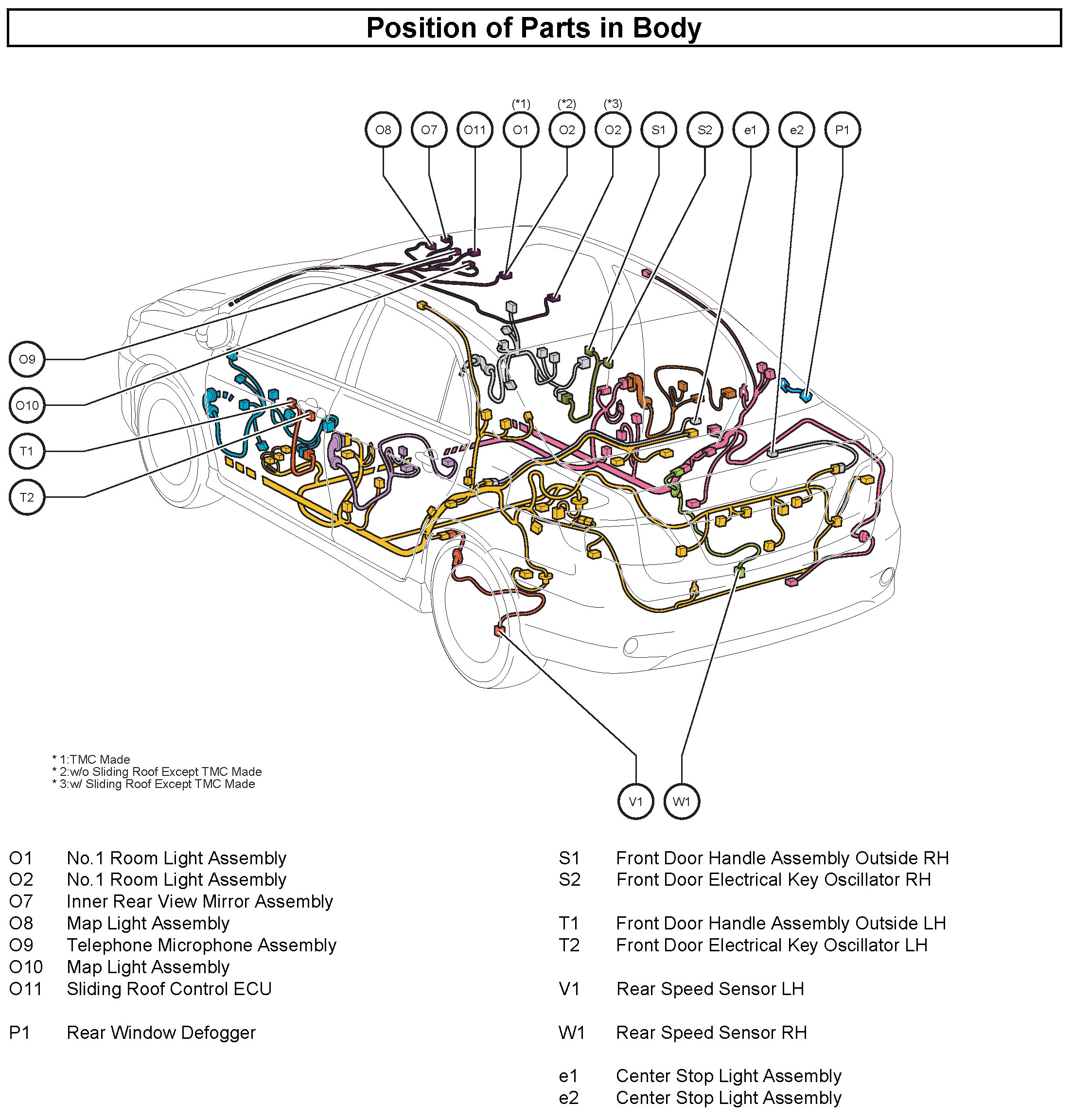

61 - Position of Parts in Body:

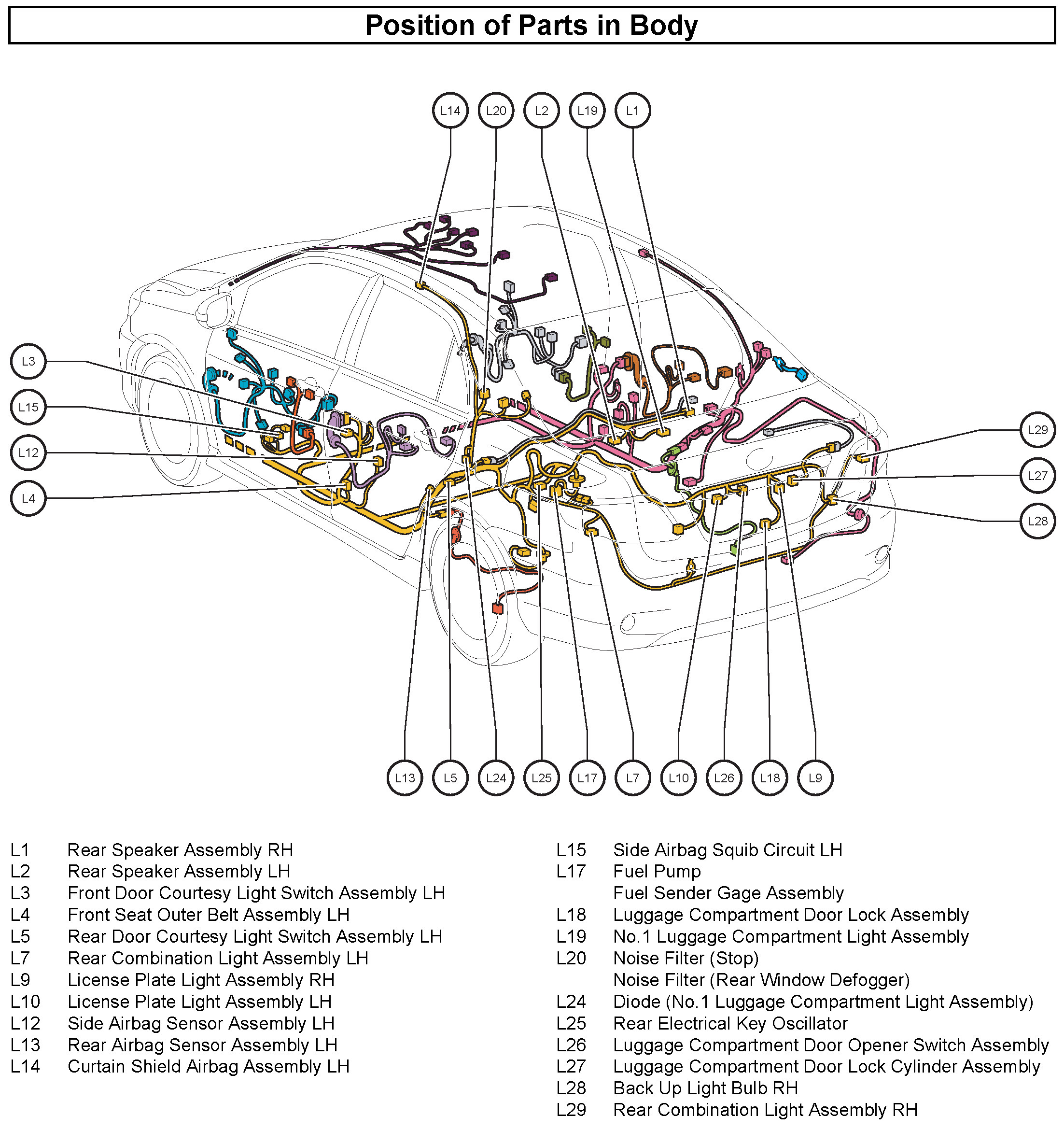

62 - Position of Parts in Body:
63 - Position of Parts in Body:
