Locations
>>
Component Locations
>>
48-51 - Position of Parts In Engine Compartment
48-51 - Position of Parts In Engine Compartment

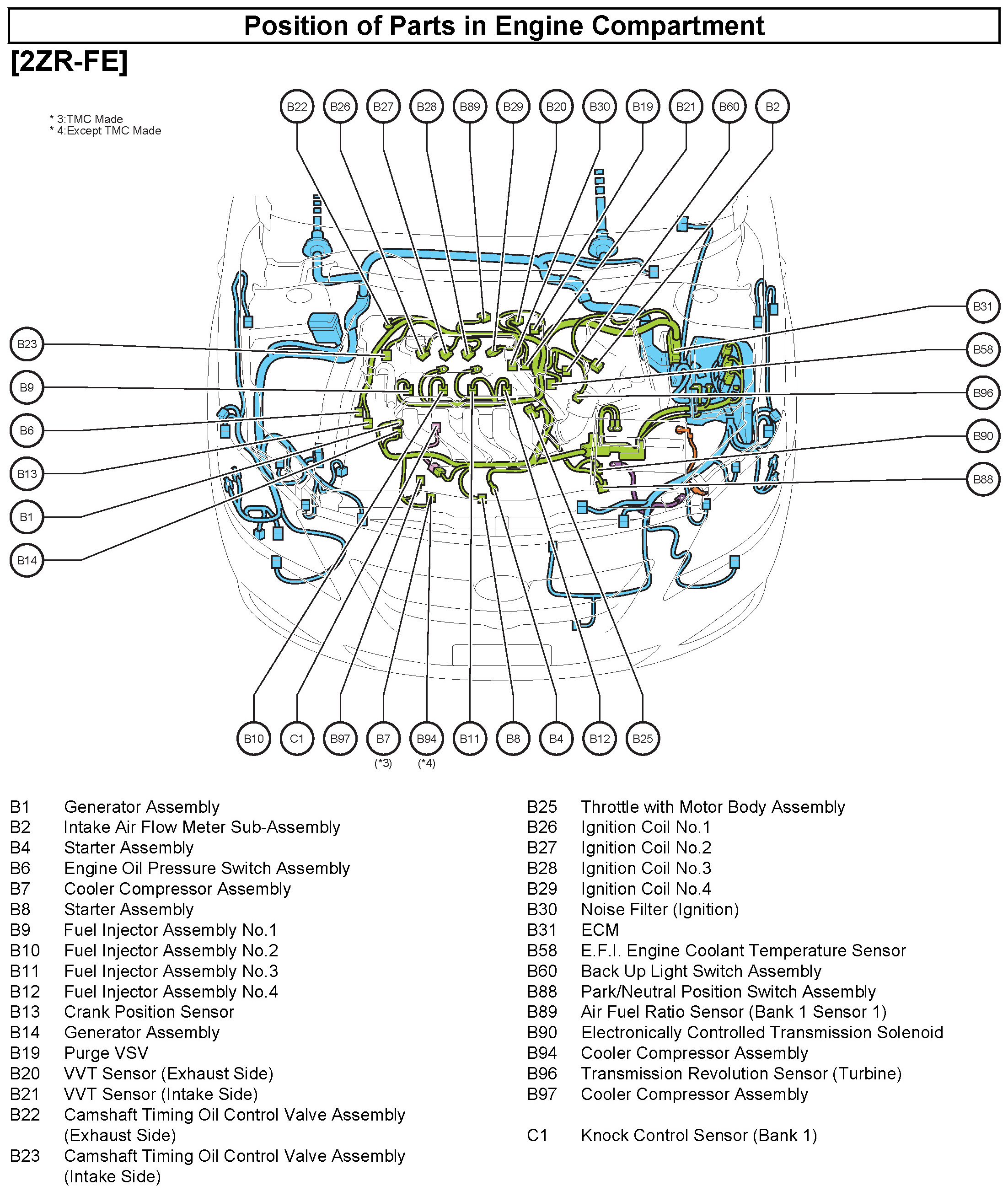

50 - Position of Parts in Engine Compartment:

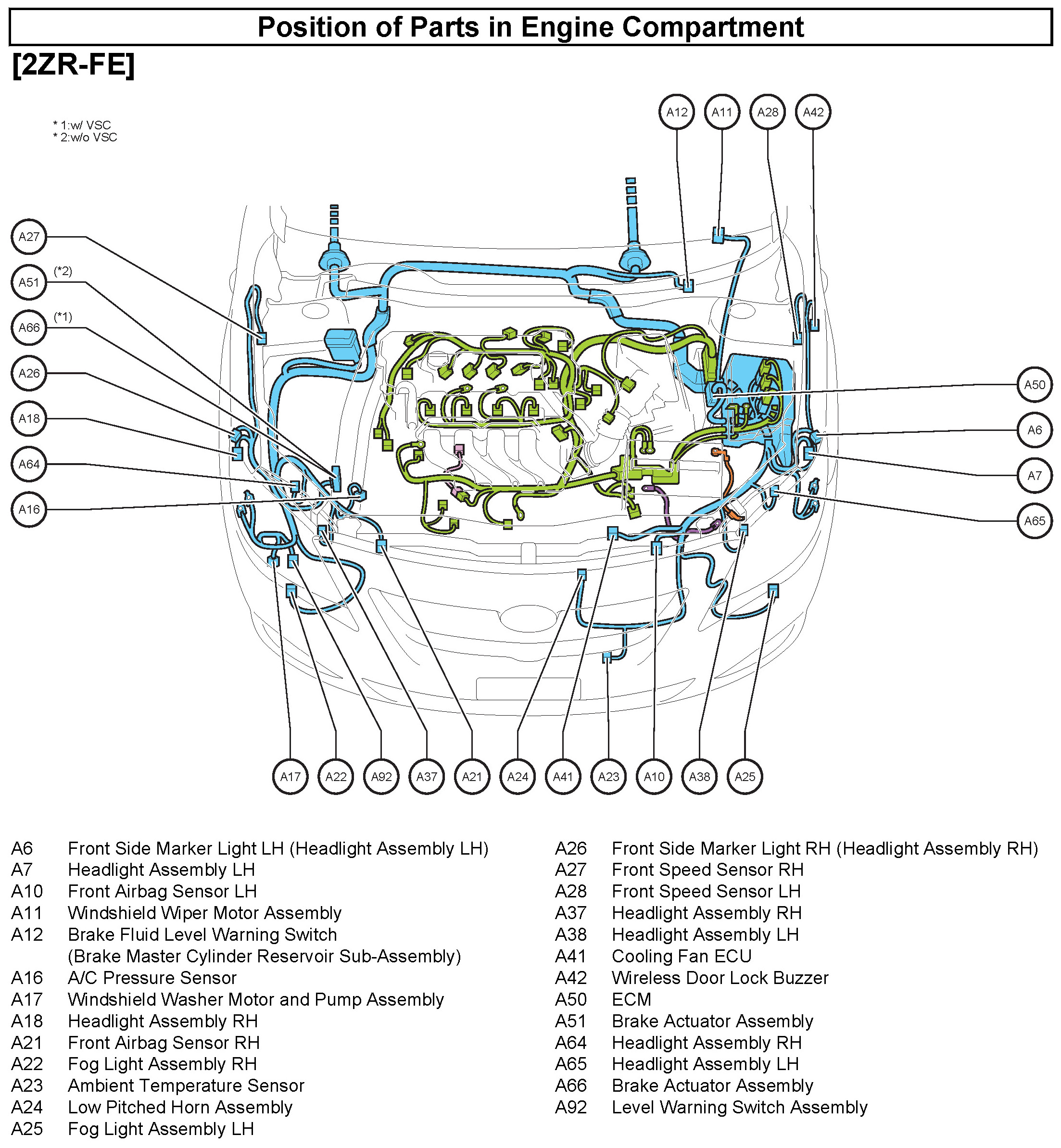

51 - Position of Parts in Engine Compartment:
