52-55 - Position of Parts In Instrument Panel (TMC Made)

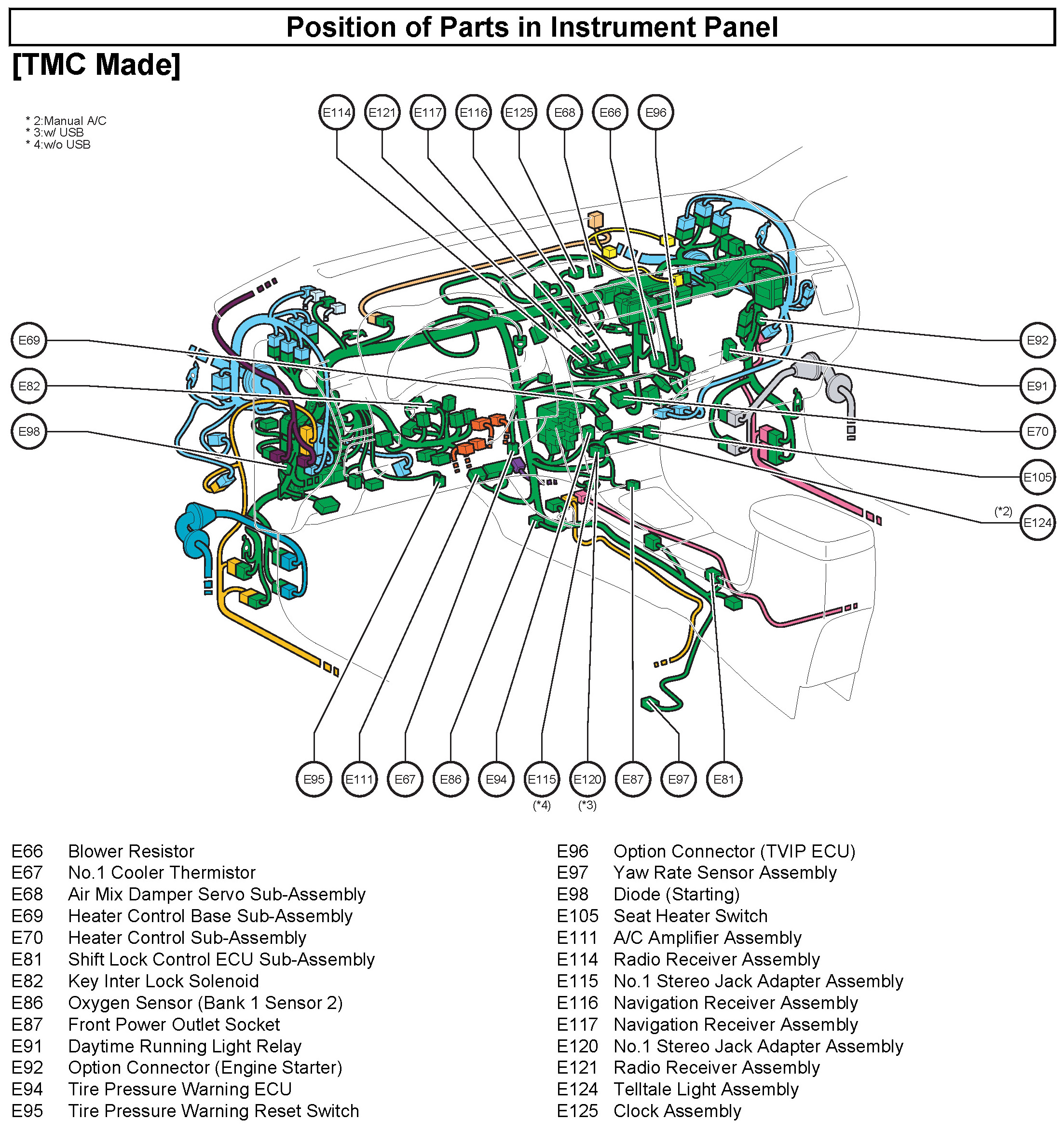

52 - Position of Parts in Instrument Panel:

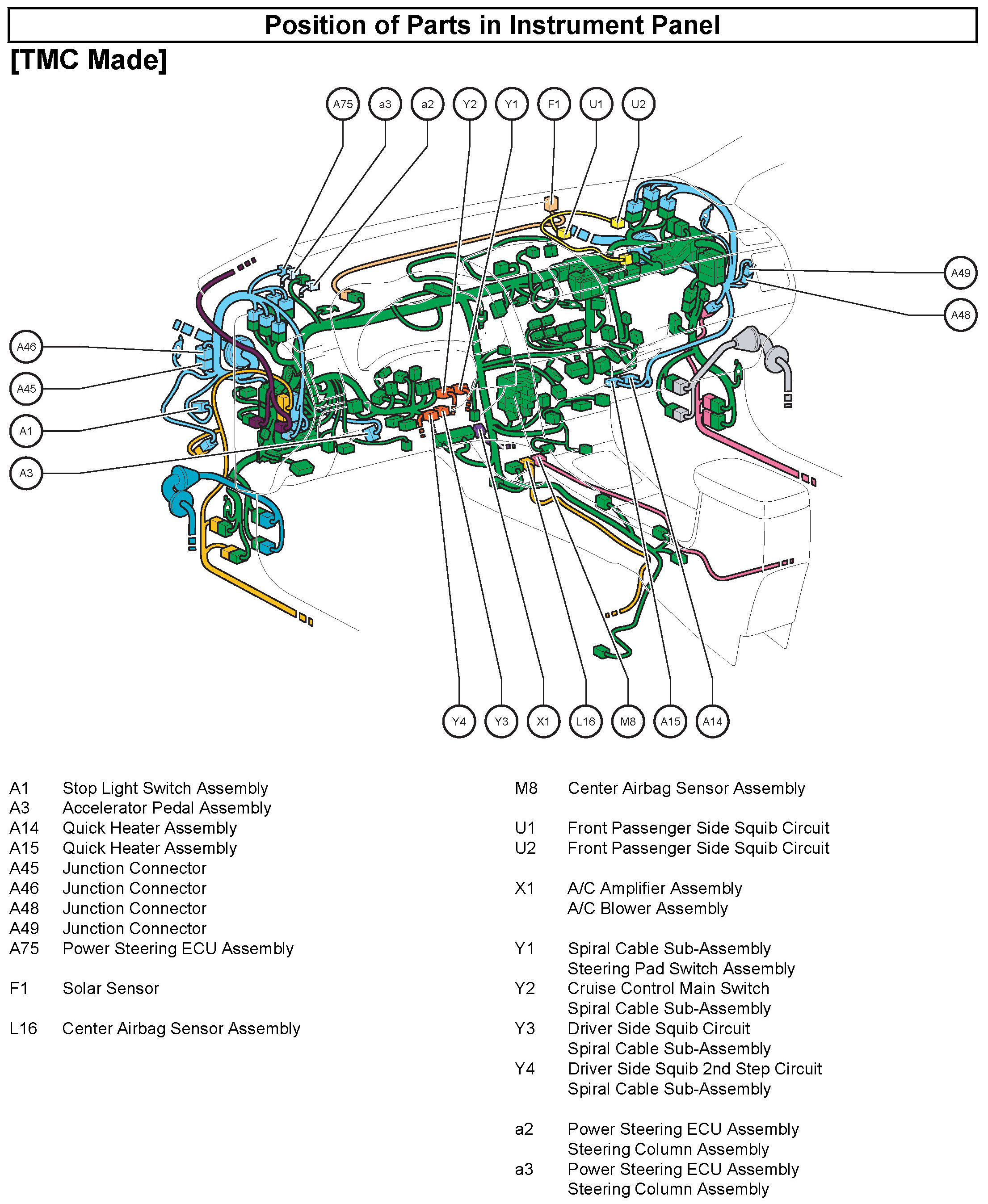

53 - Position of Parts in Instrument Panel:

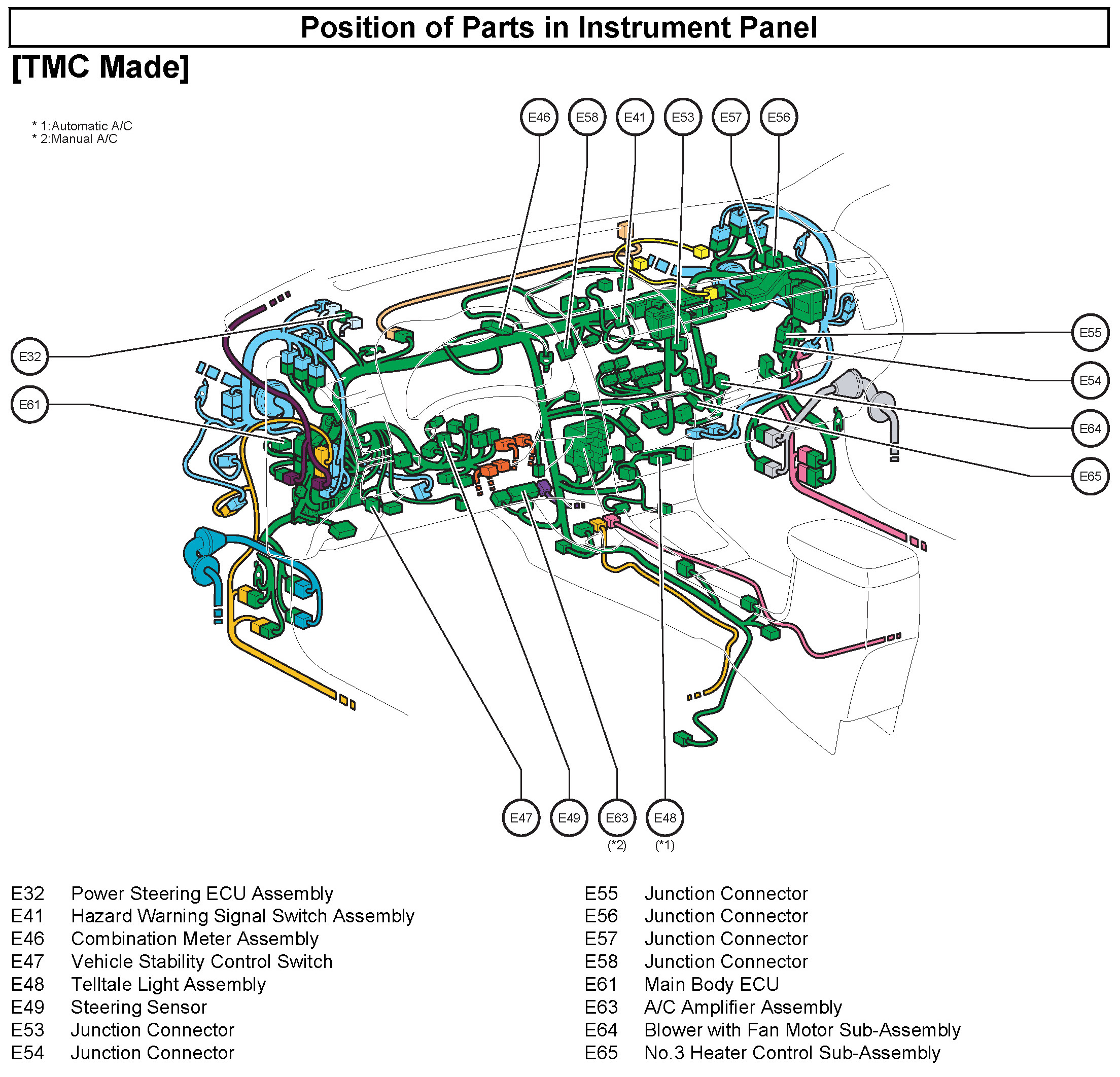

54 - Position of Parts in Instrument Panel:






55 - Position of Parts in Instrument Panel:
