56-59 - Position of Parts In Instrument Panel (Expect TMC Made)
56-59 - Position of Parts In Instrument Panel (Expect TMC Made)

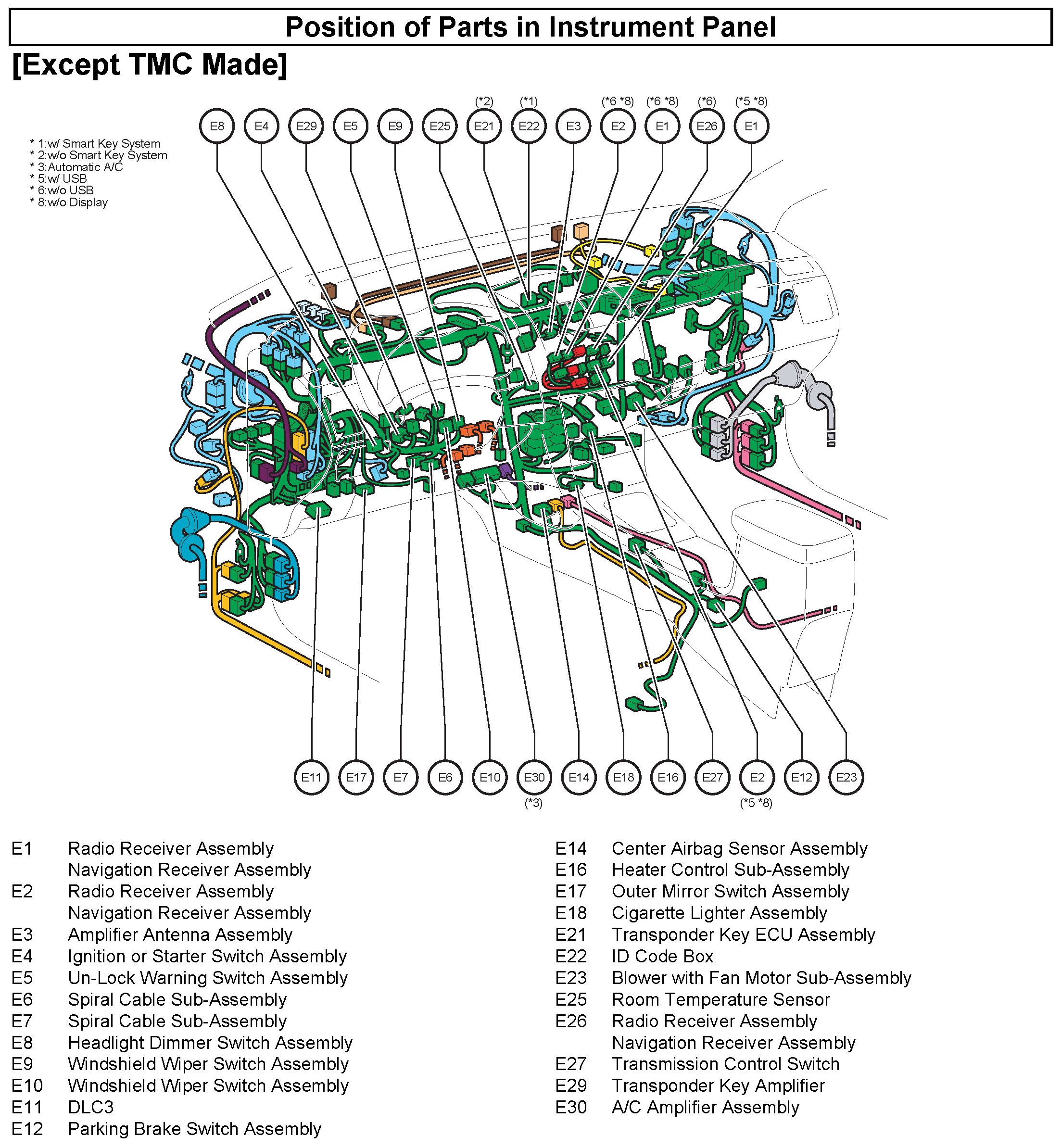

56 - Position of Parts in Instrument Panel:

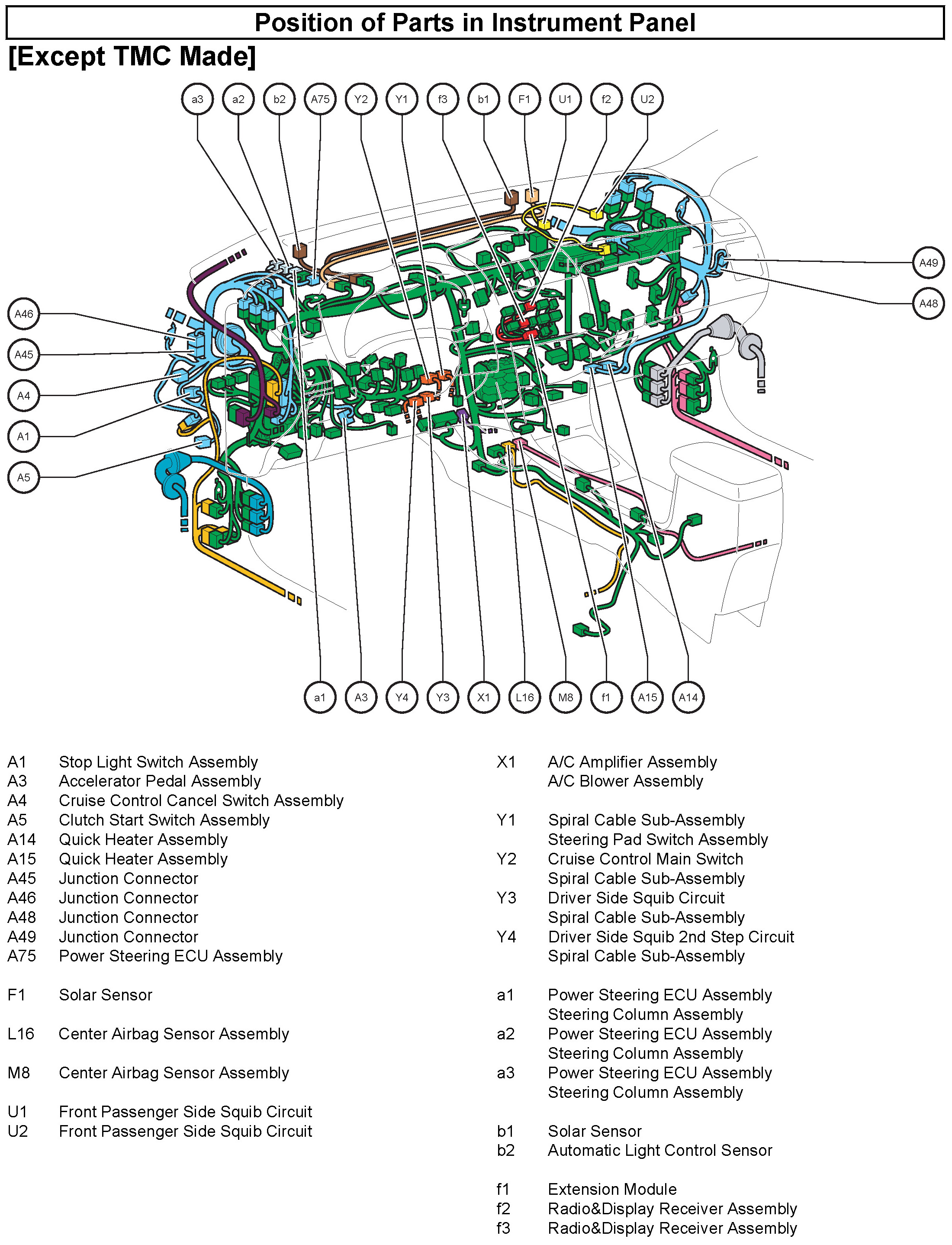

57 - Position of Parts in Instrument Panel:

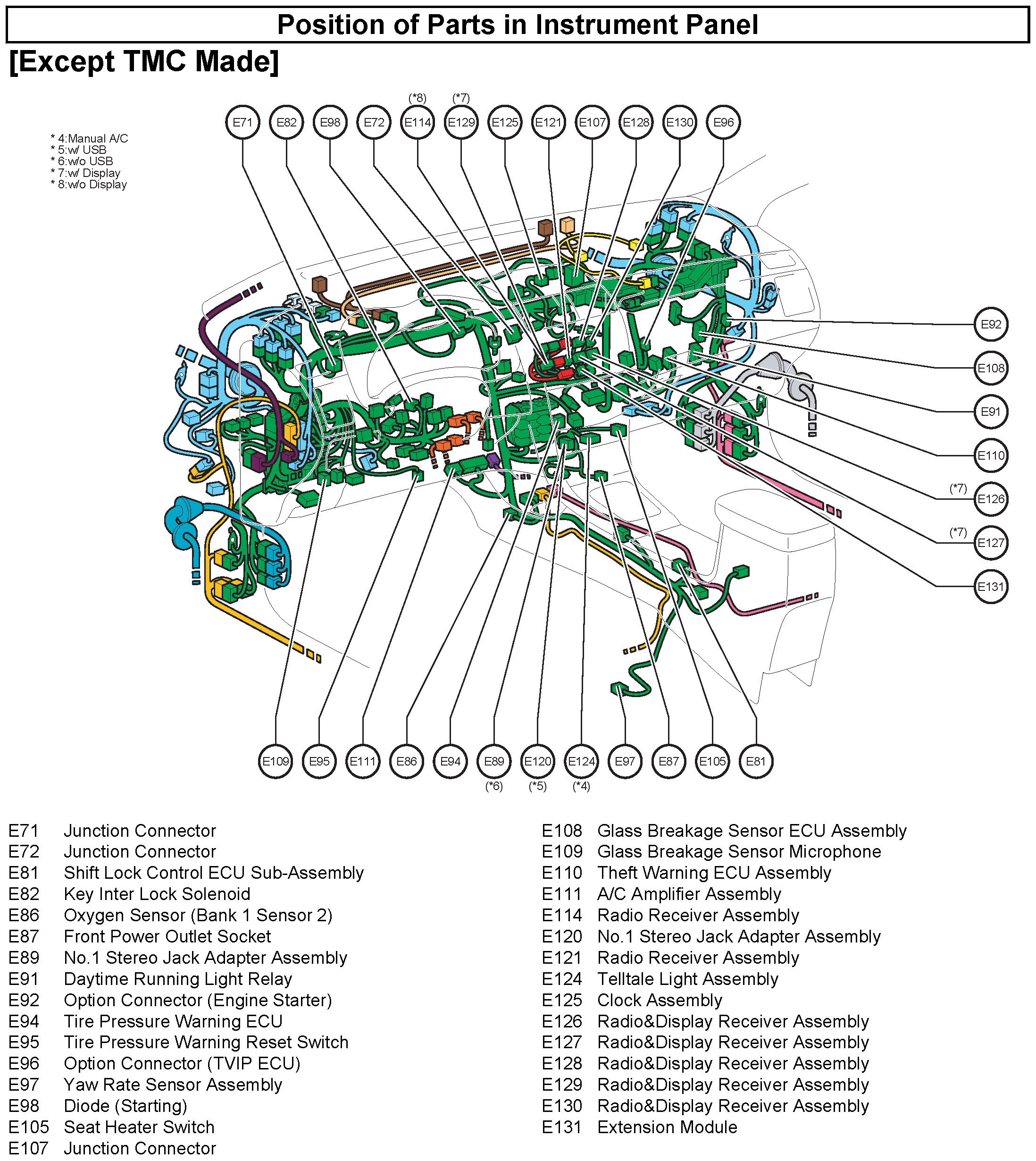

58 - Position of Parts in Instrument Panel:
59 - Position of Parts in Instrument Panel:
