Connector Locations
Connector Locations

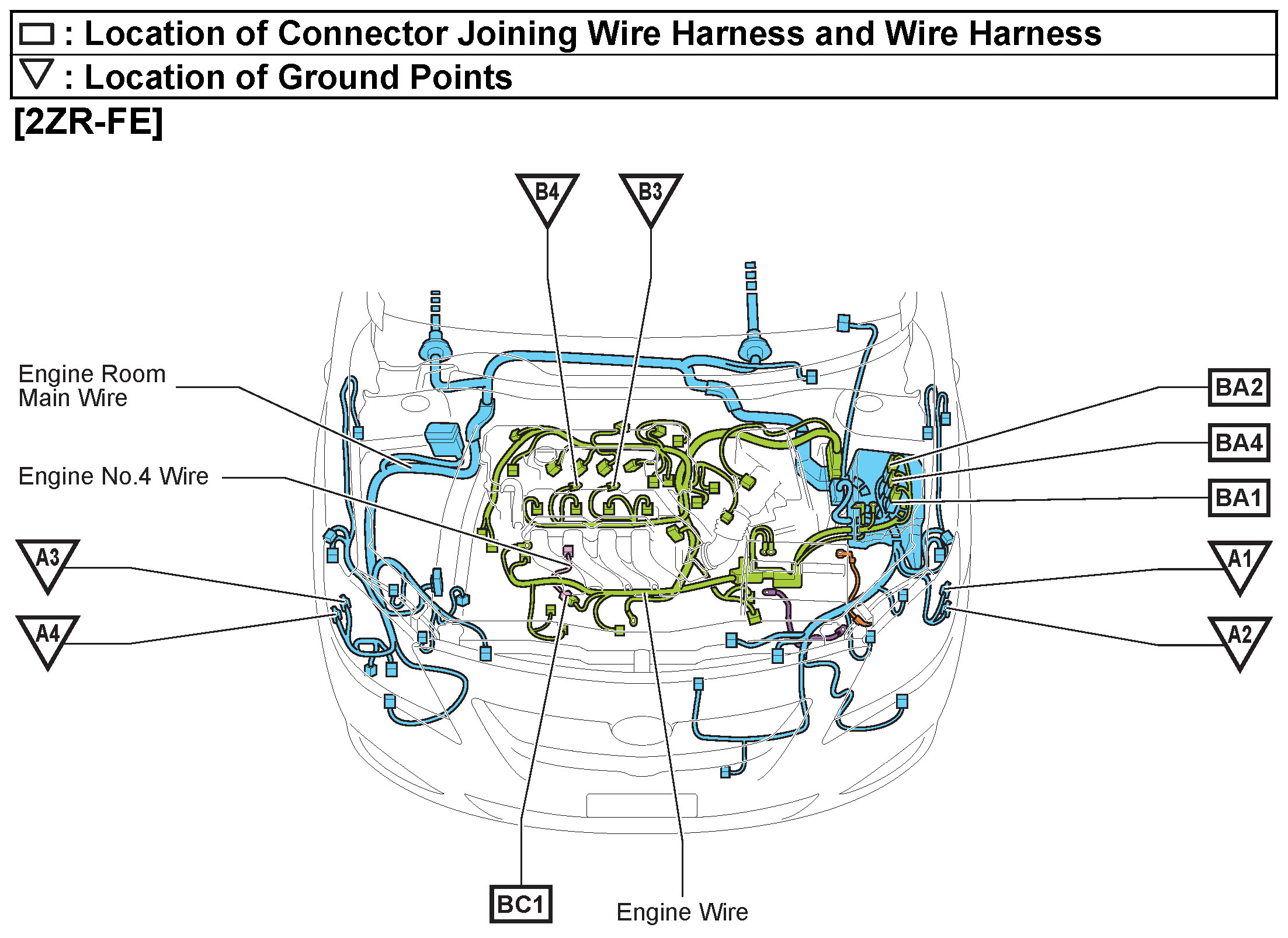

67 - A1-B4 / BA1-BC1:

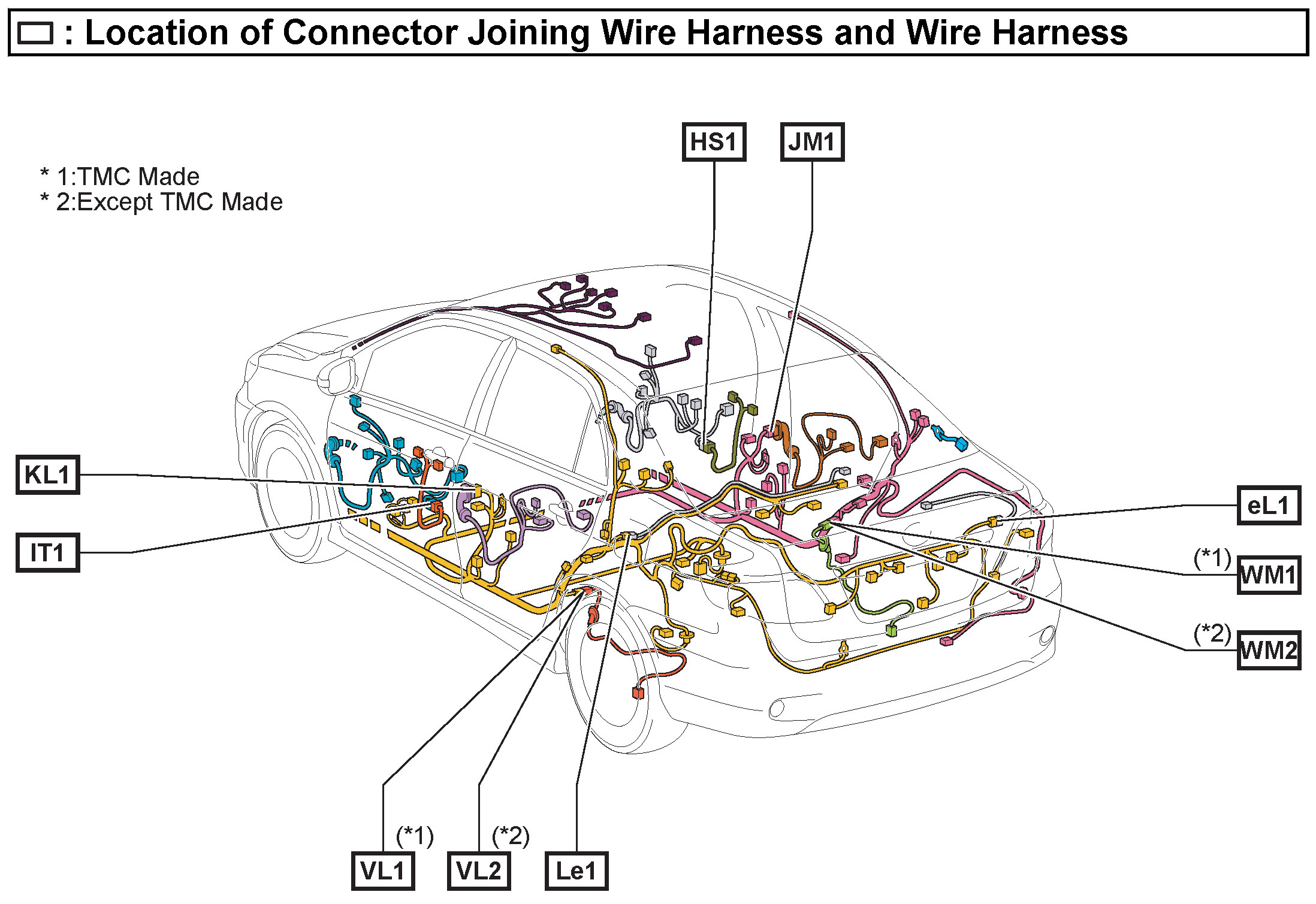

70 - el1-Wm2:

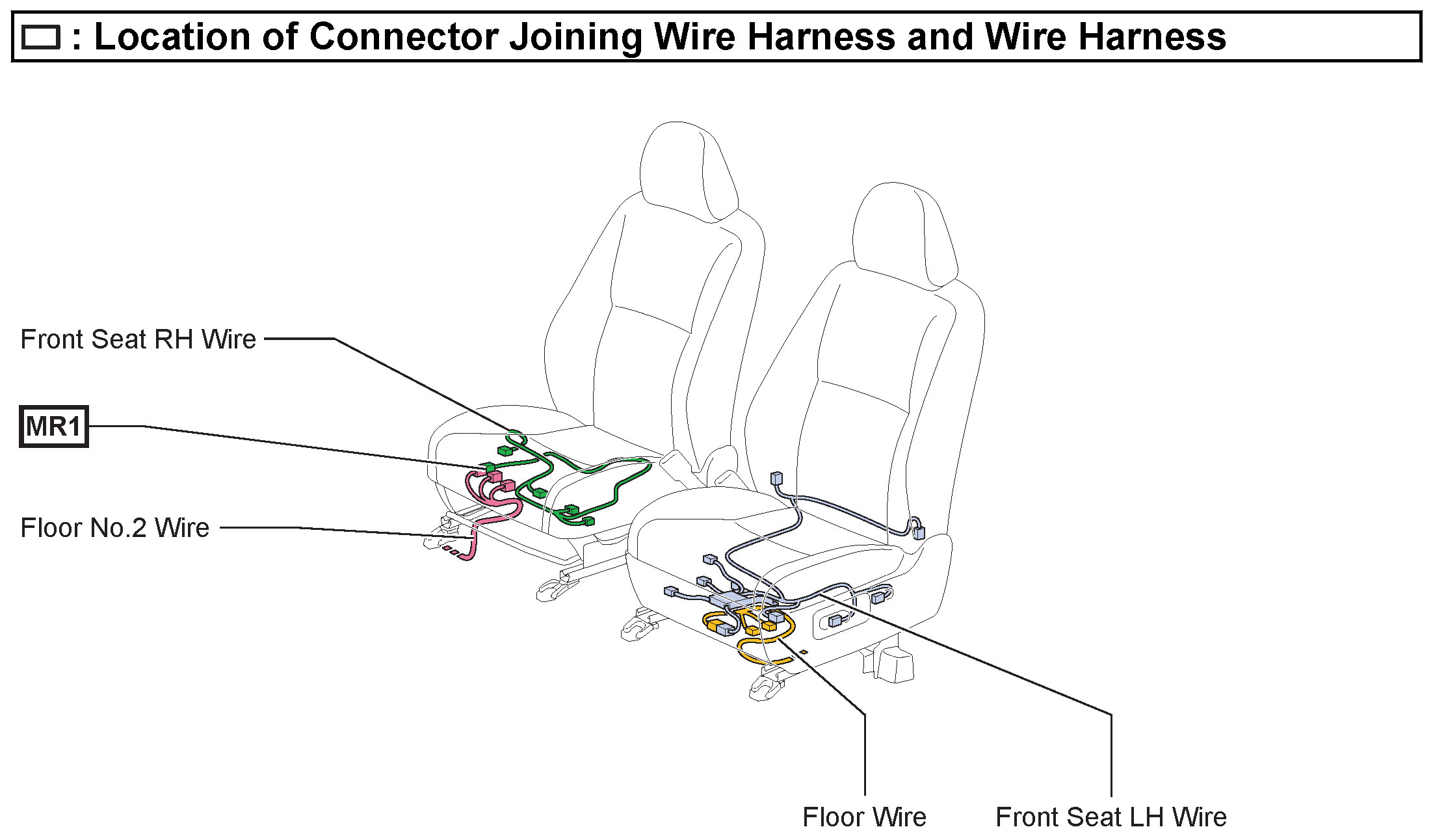

71 - MR1:

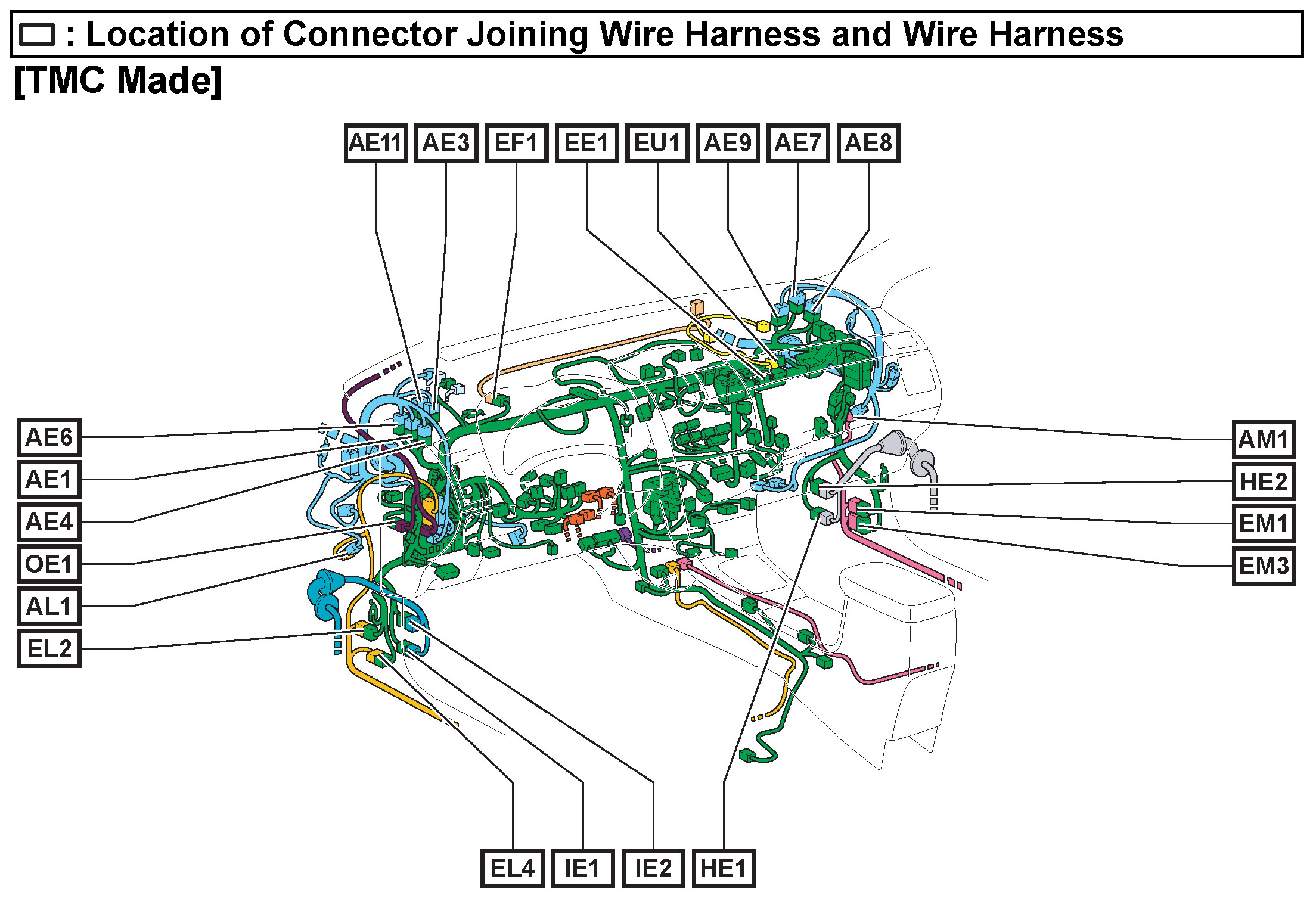

TMC Made
68 - AE1-OE1:
Except TMC Made
69 - AE1-OE1:
