Relay Box: Locations

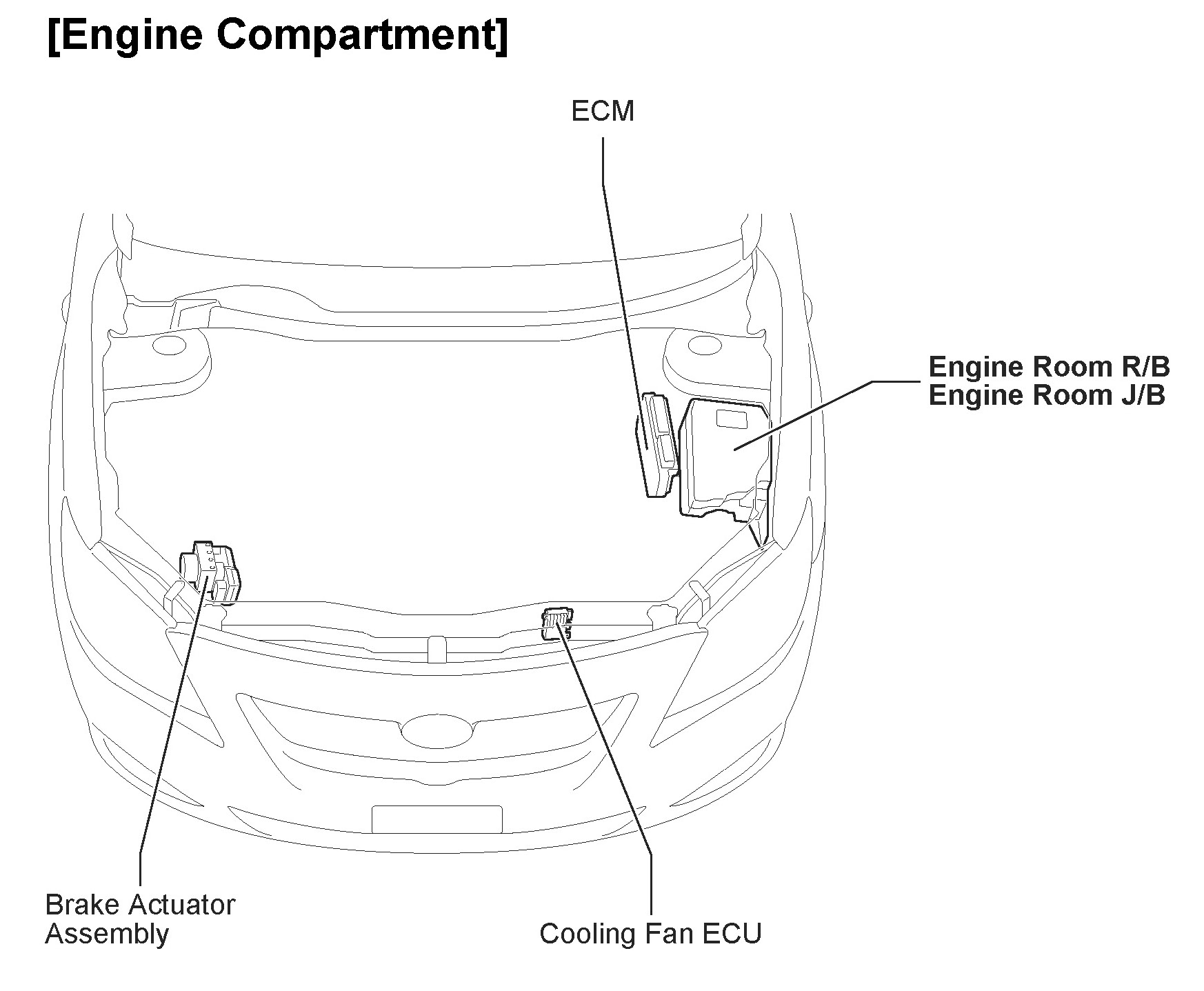

Engine Compartment:

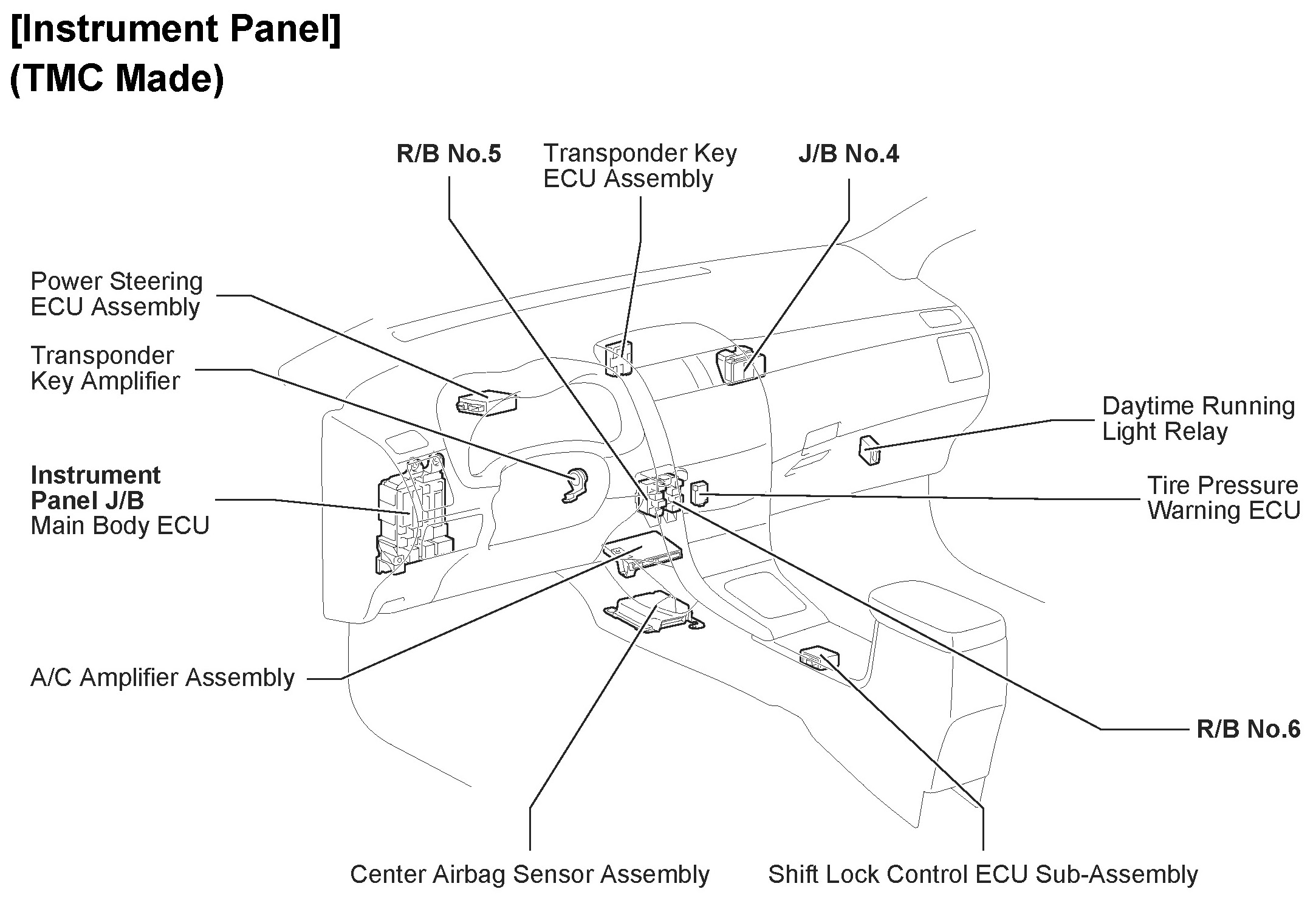

TMC Made
Instrumental Panel:

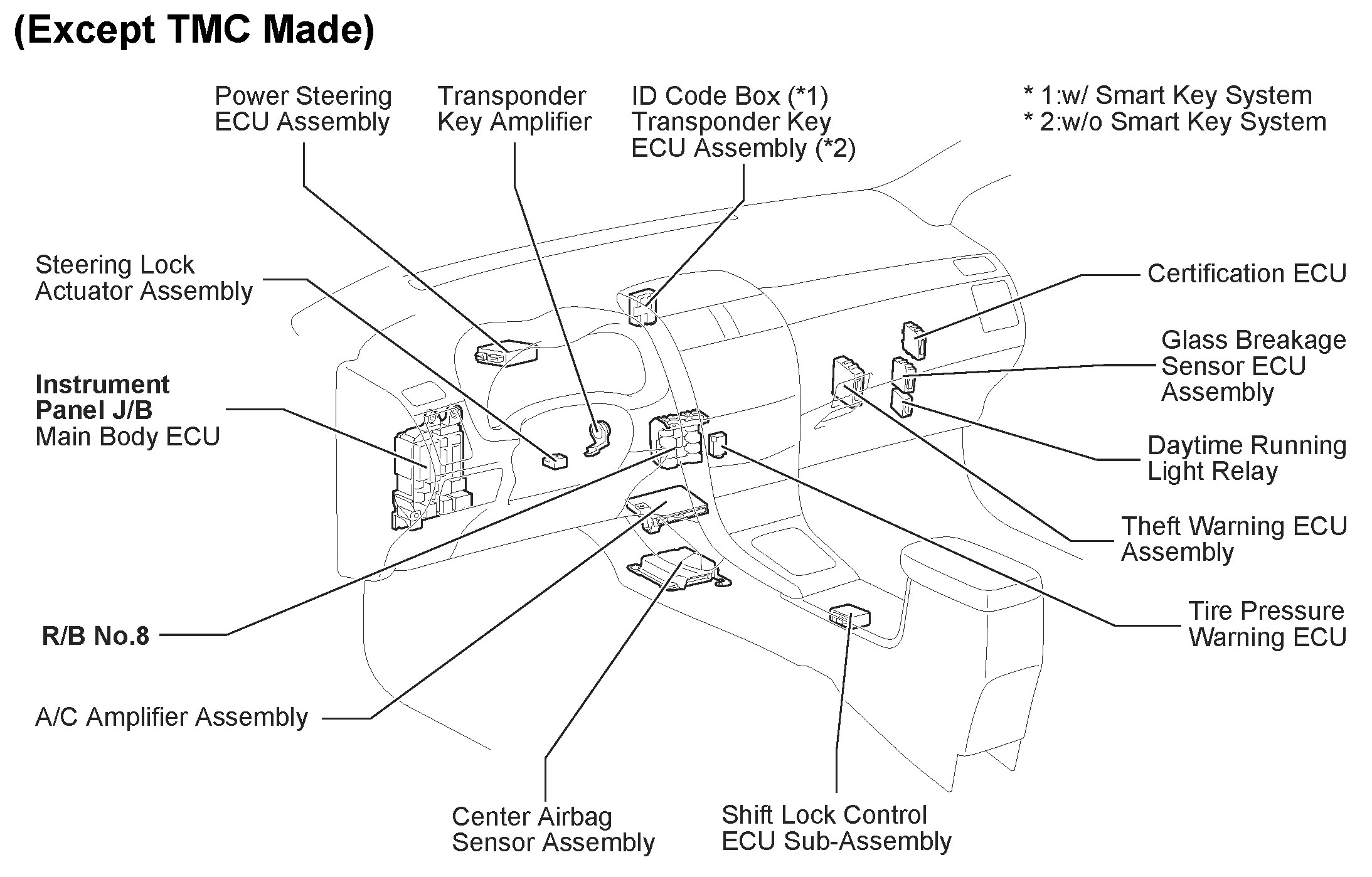

Except TMC Made
Instrumental Panel:
