Audio, Navigation - HDD Map Update Process (Harman DA)
T-SB-0005-13January 8, 2013
Display Audio HDD Map Update Process (Harman DA)
Service Category
Audio/Visual/Telematics
Section
Navigation/Multi Info Display
Market
USA

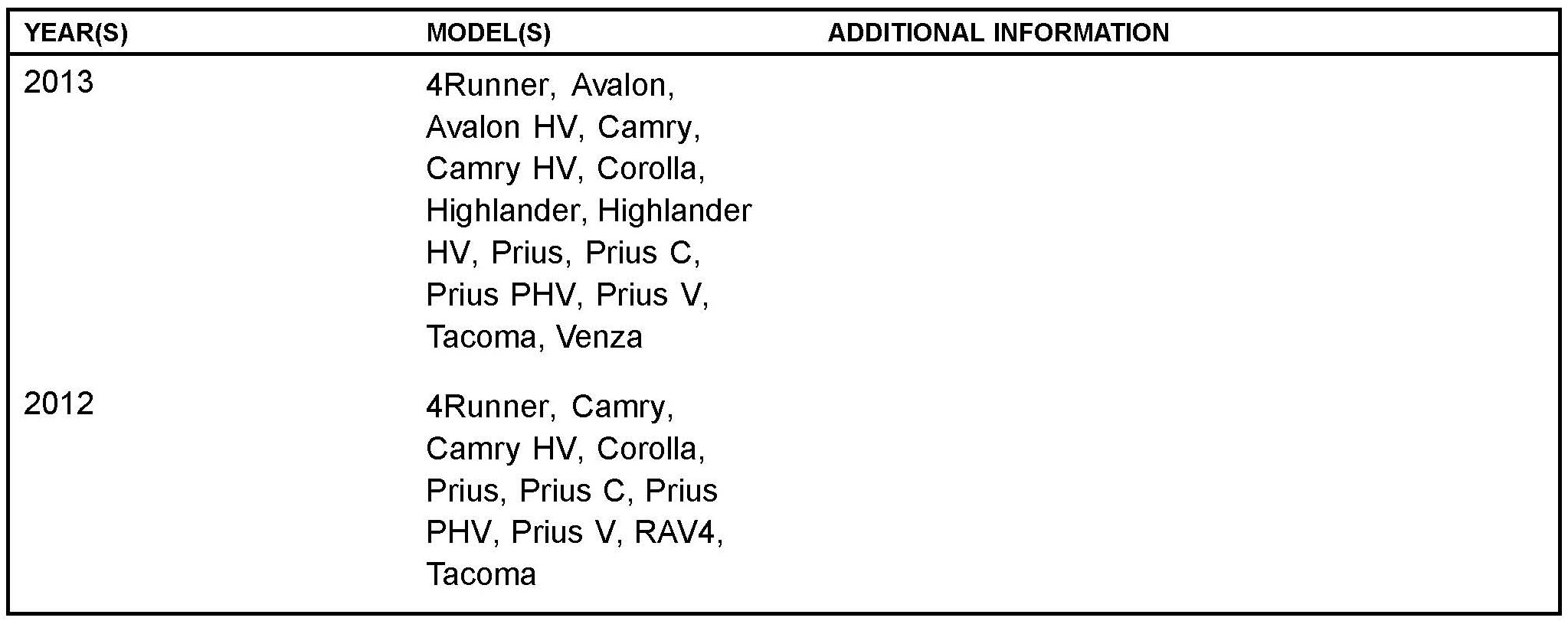

Applicability
Introduction
Toyota models equipped with the Display Audio HDD Navigation System require a Special Service Tool (SST) USB drive to update the map, points of interest, Gracenote(R), and system software. The SST is used with all vehicles to deliver the update, however a unique Activation Number is required for each vehicle. Activation Numbers are provided in an Activation Card Number (ACN) pamphlet available through the normal parts ordering system. Use the process described in this bulletin to perform the update.
NOTE
Map data will be released annually through the shipment of a Special Service Tool USB drive to each dealer. The SST must be stored in the SST cabinet to ensure it can be easily found.

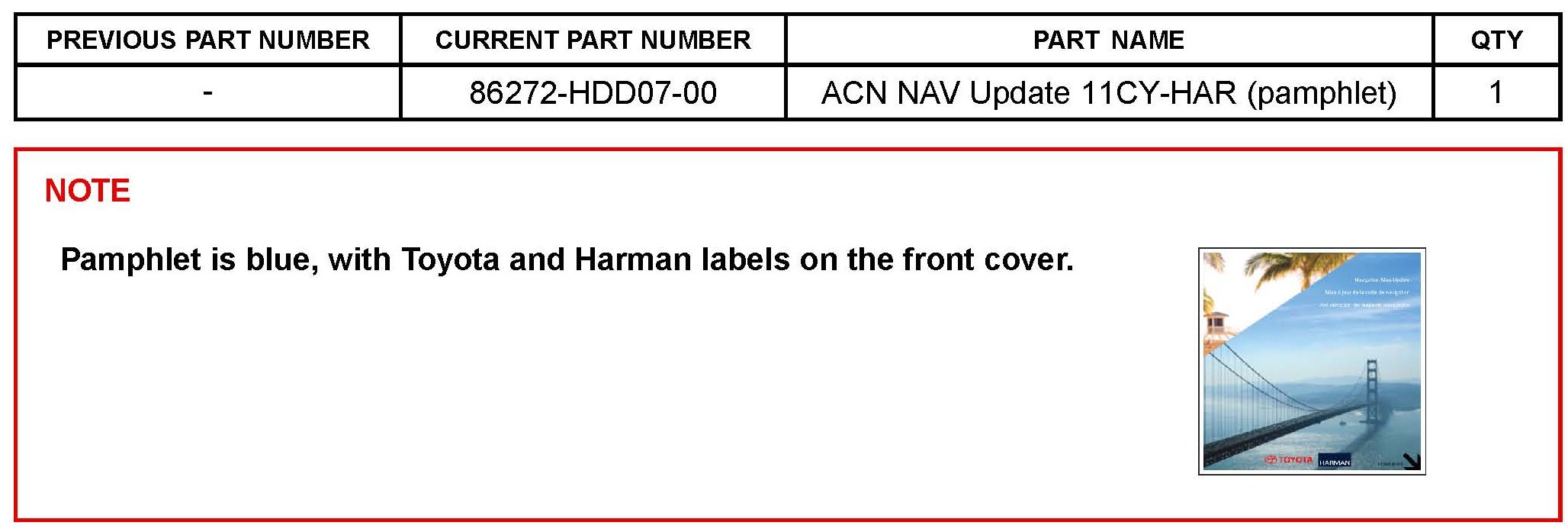

Parts Information

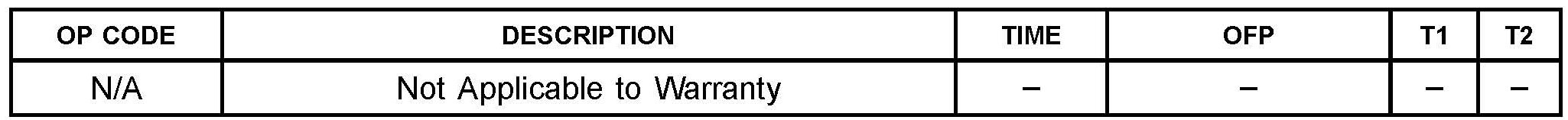

Warranty Information

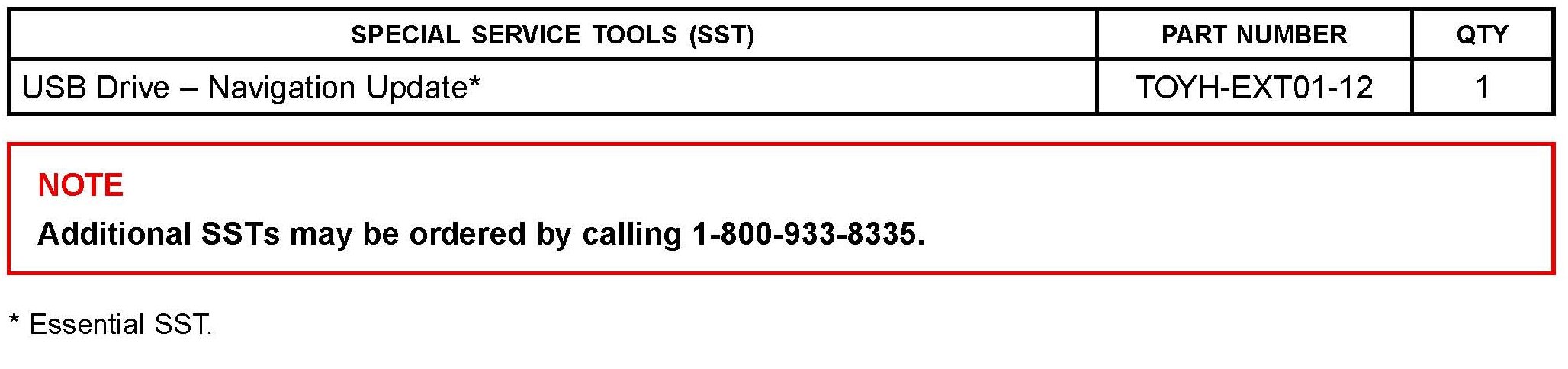

Required Tools & Equipment
Repair Procedure
1. Log into TIS.

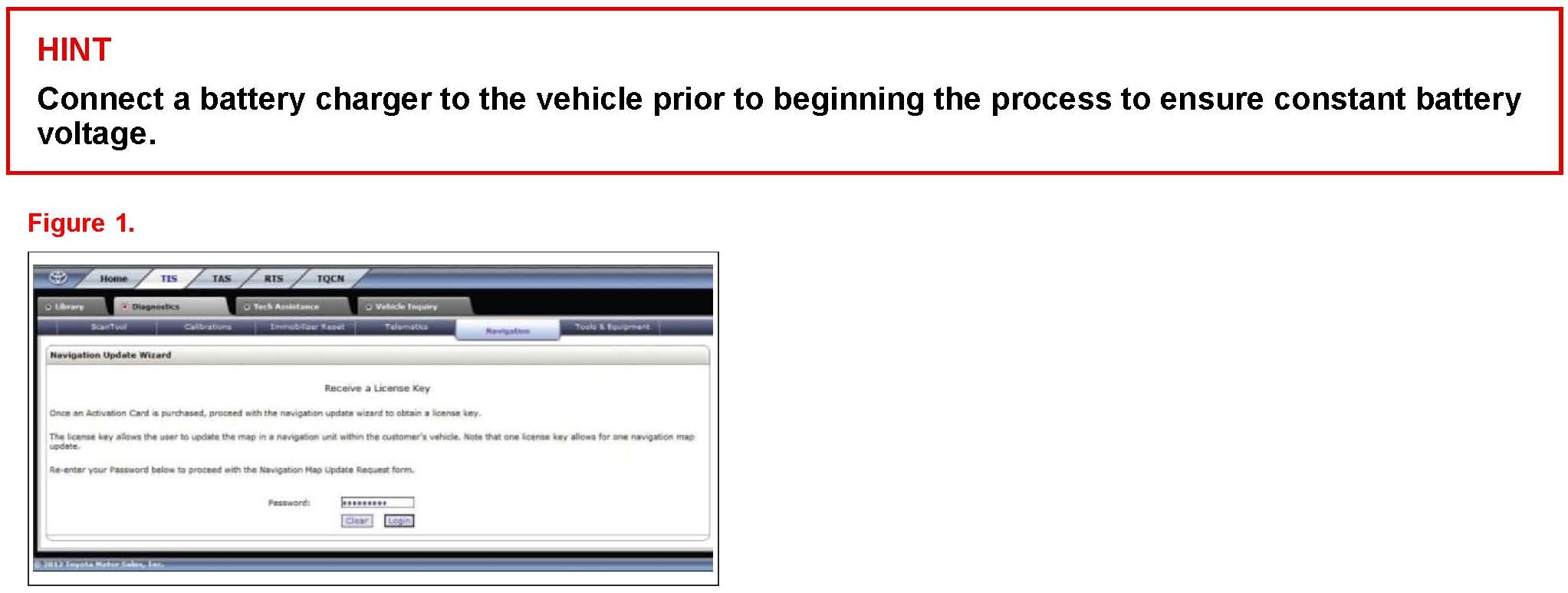

2. Log into Navigation Update Wizard.
A. Click on the TIS tab.
B. Click on the Diagnostics tab.
C. Click on the Navigation tab.
D. Re-enter your password.
3. Select Harman from the Select Navigation Manufacturer dropdown.

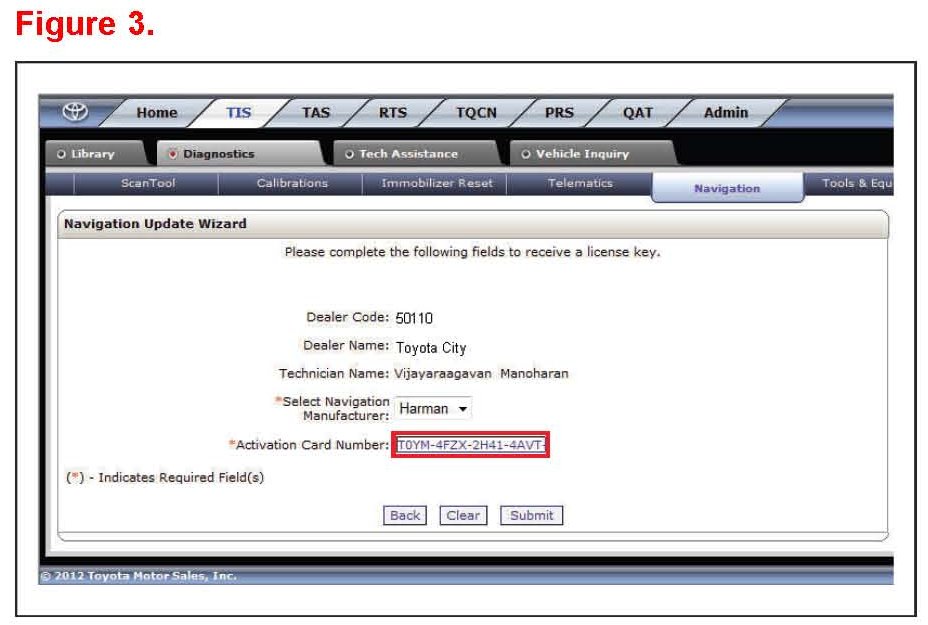

4. Enter the Activation Card number from the inside of the pamphlet (obtained from parts department).
5. Click Submit.
6. Turn Ignition ON (Ready OFF).

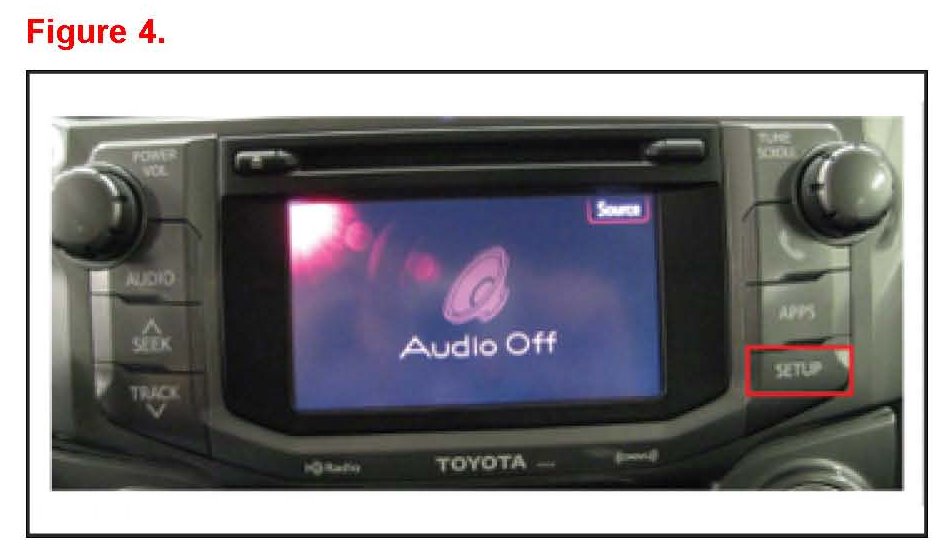

7. Press the "SETUP" button on the navigation head unit.

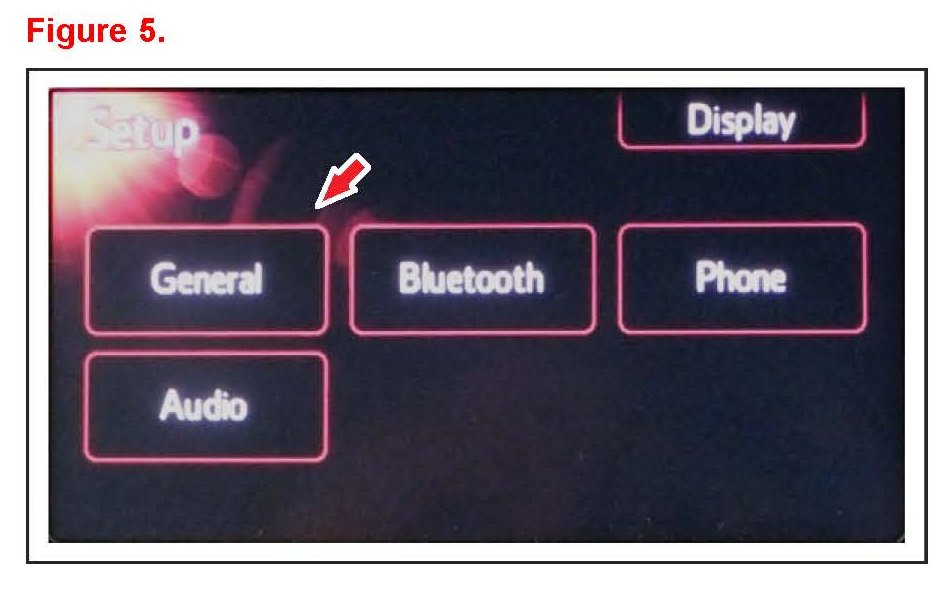

8. Press the "General" button on the navigation screen.

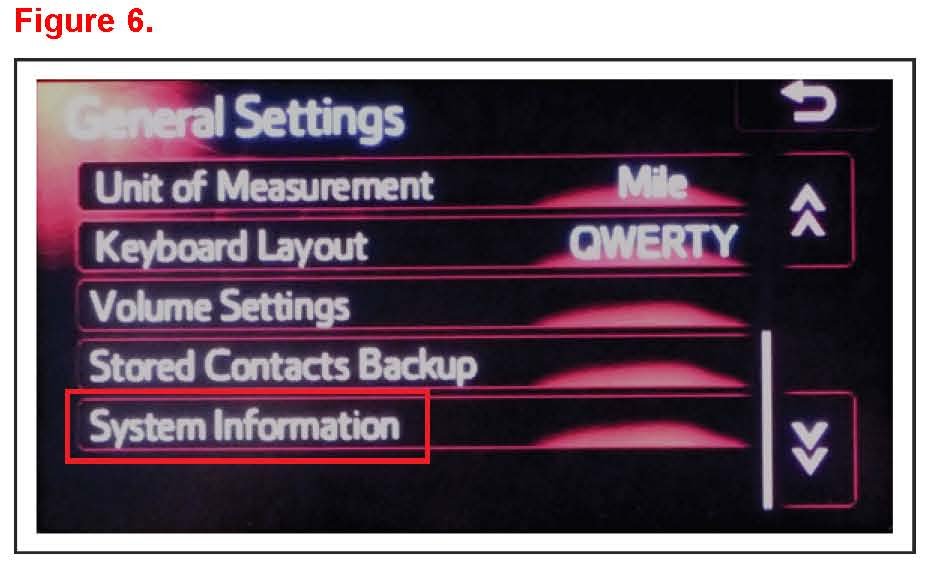

9. Press the down arrow and then "System Information" on the navigation screen.
10. Record the Nav ID, located on the bottom left of the navigation screen.
11. Insert the USB Drive - Navigation Update SST into the USB port of the vehicle (usually located under the navigation head unit center console/armrest or glove box).

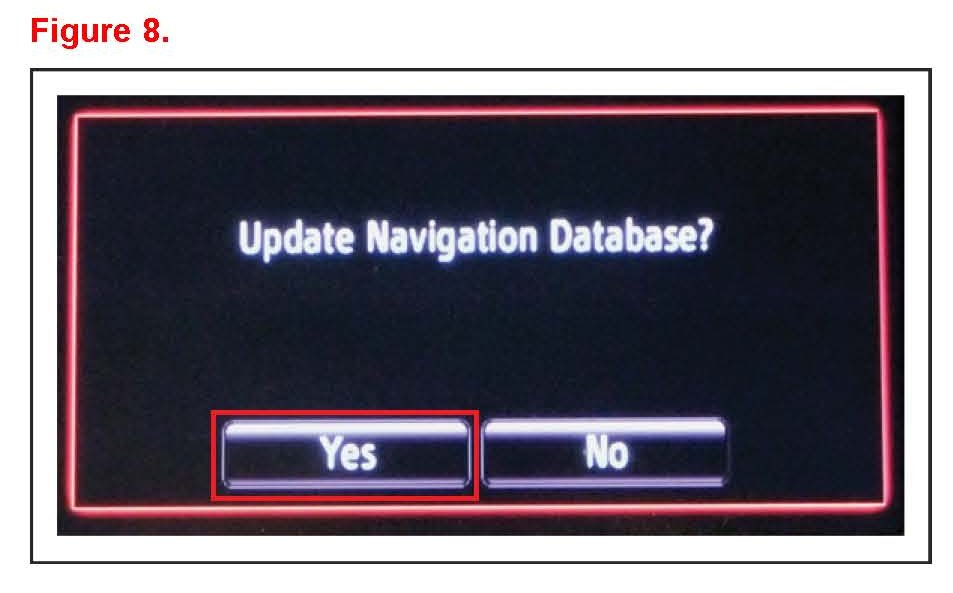

12. Click "Yes".

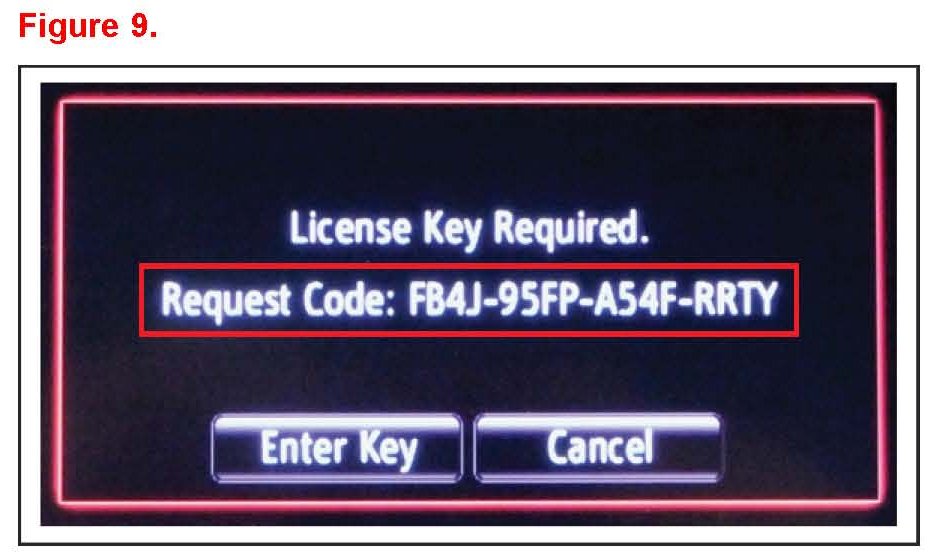

13. Record the Request Code from the navigation screen.

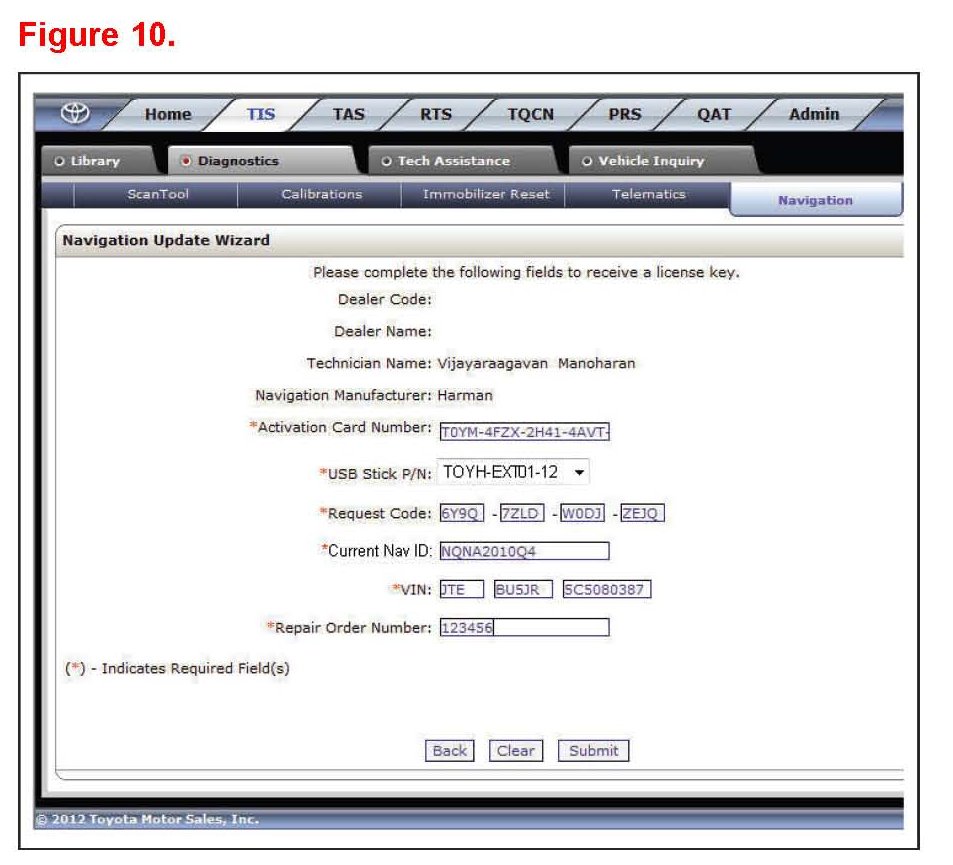

14. Enter navigation data into the Navigation Update Wizard form.
A. Select the correct USB part number (found on the SST packaging; starts with "TOYH").
B. Input the Request Code.
C. Input Current Nav ID.
D. Input VIN.
E. Input Repair Order.
F. Click Submit.

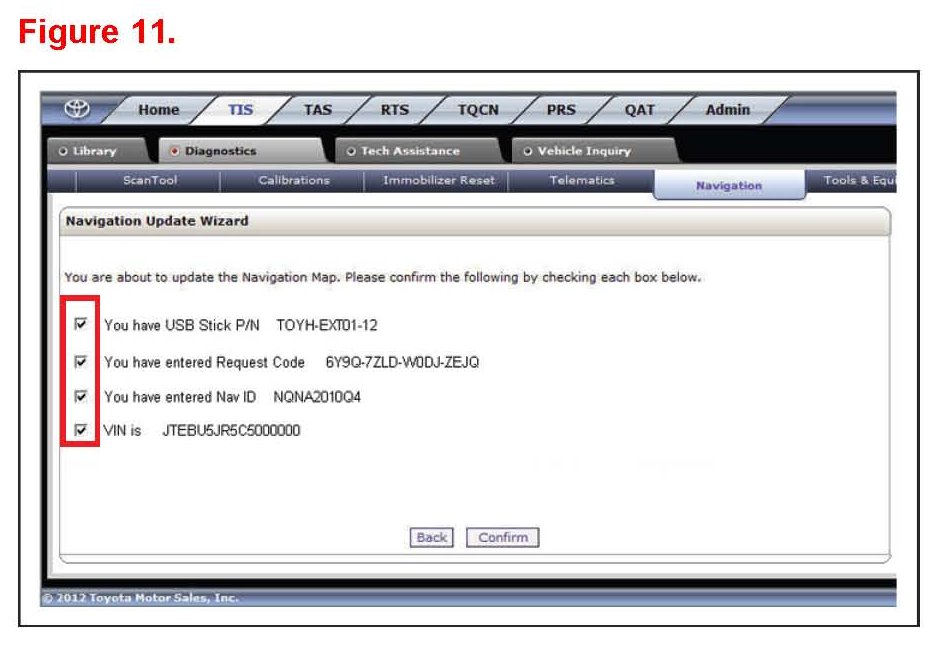

15. Check off each item after confirming that it is correct. If any of the information is incorrect, click the "Back" button.
16. Click the Confirm button.

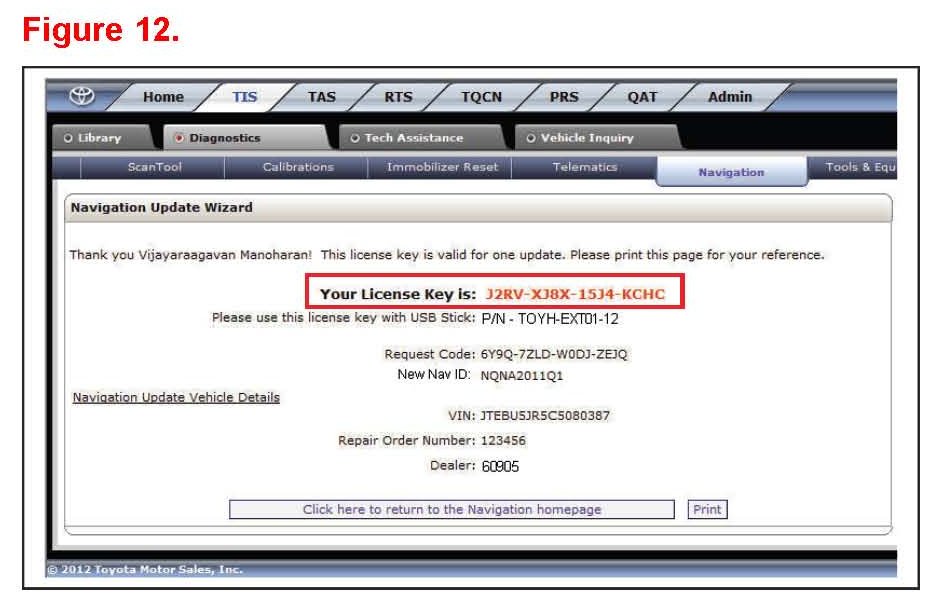

17. Note the License Key that is generated (Print this page if necessary).

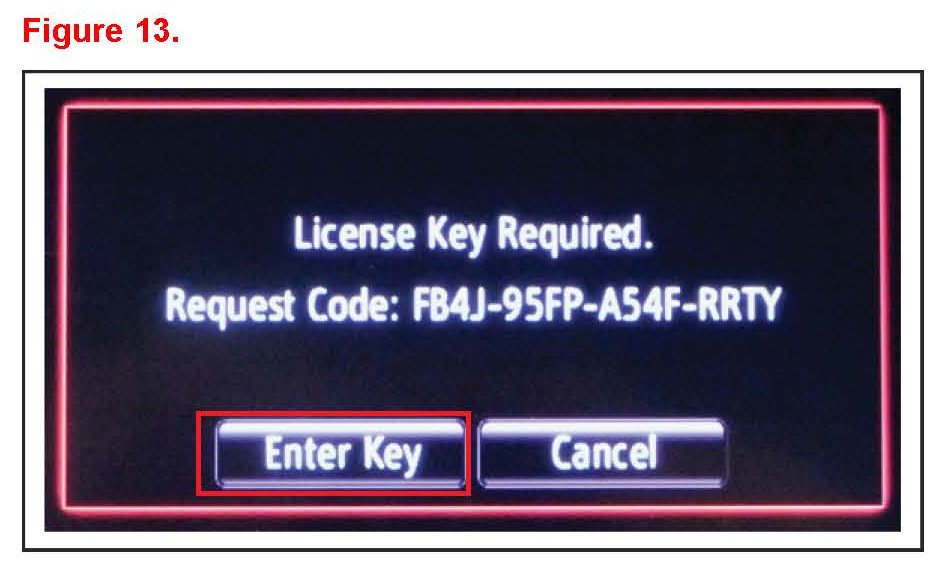

18. Click the "Enter Key" button on the navigation screen.
19. Enter the License Key from step 17.
20. Click on the "OK" button on the navigation screen.

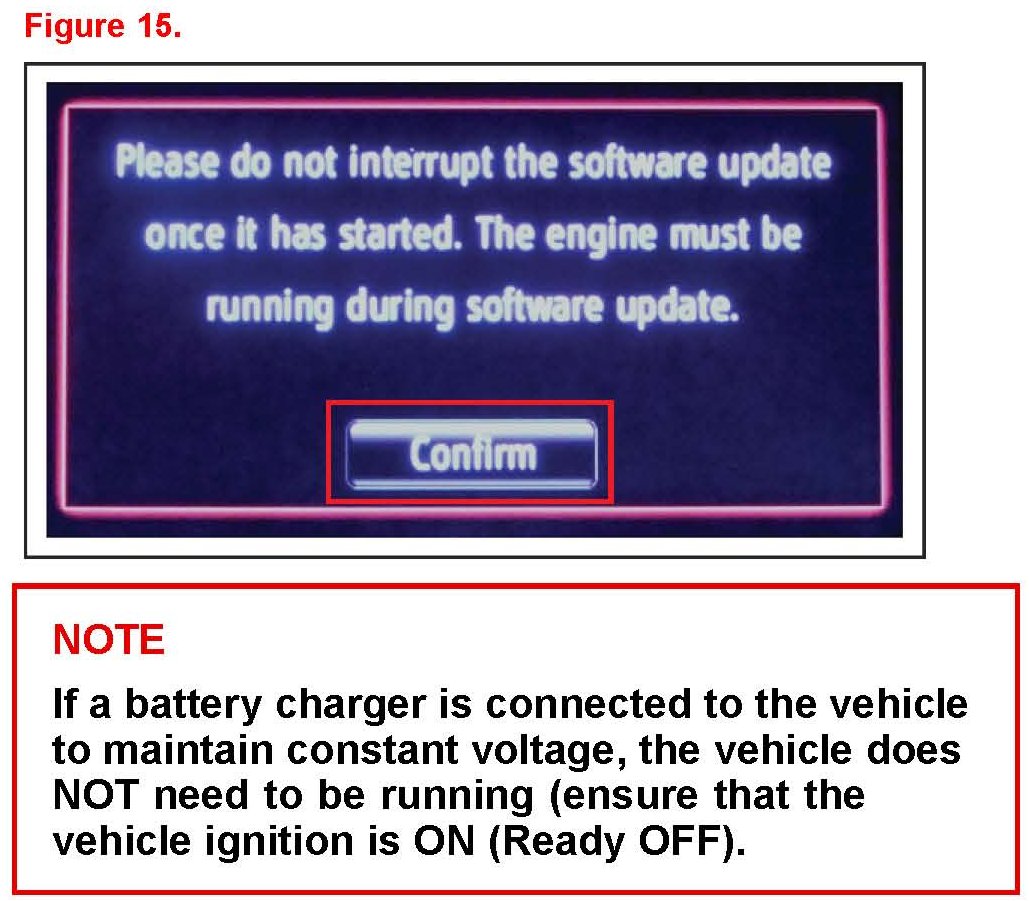

21. Click "Confirm".

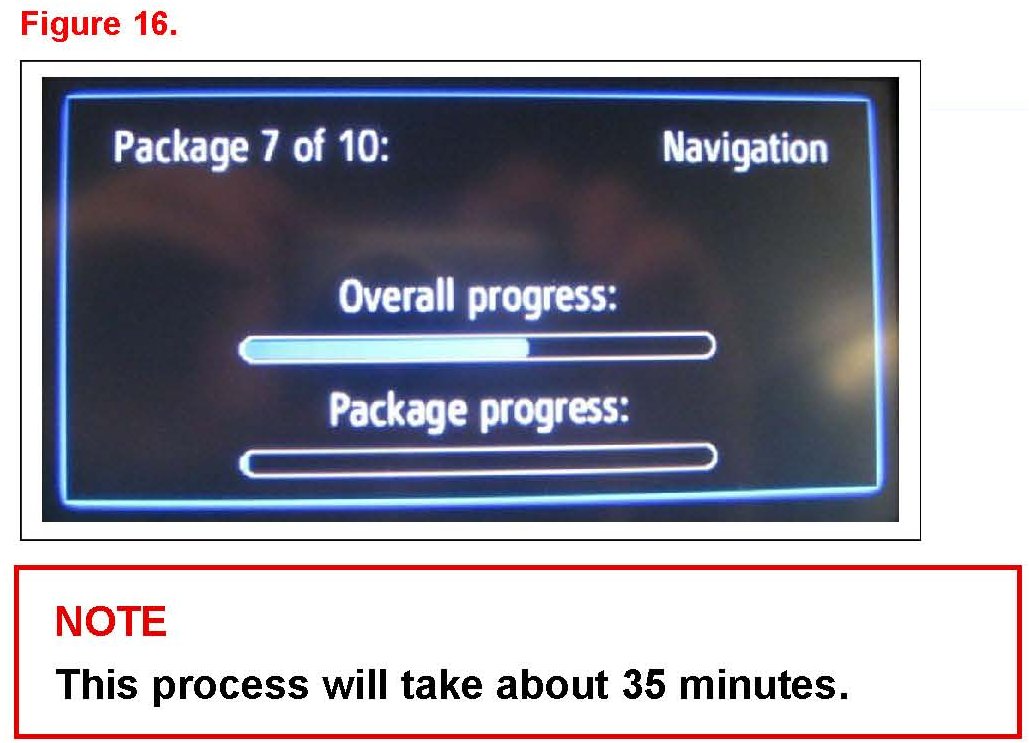

22. Navigation Map Update will begin automatically. The installation will update 10 packages (includes system software and Gracenote(R) updates) during this process and will automatically advance through each update.

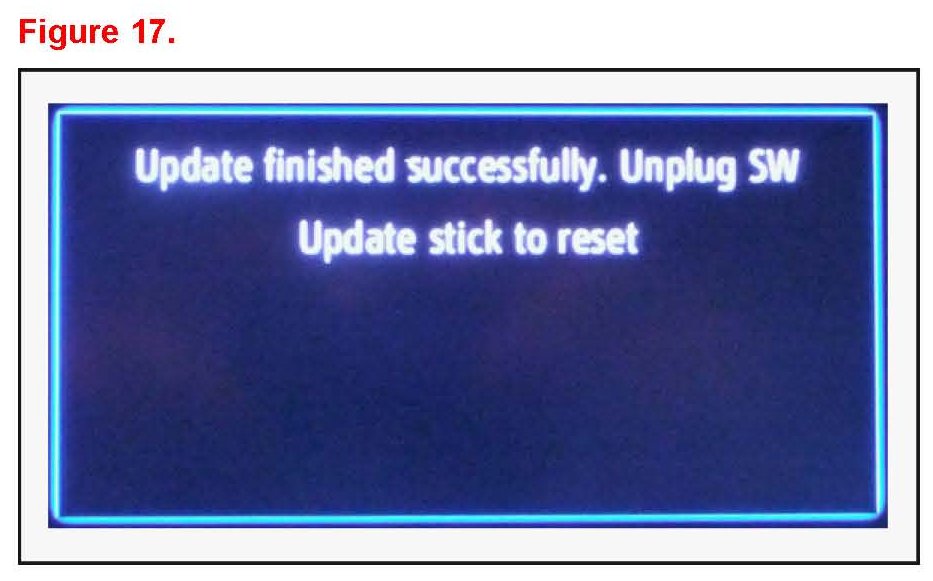

23. Remove the USB Drive - Navigation Update SST from the vehicle to complete the Map Update.
24. Map Update is complete.
25. Verify navigation operation.
