Repair Instruction - Customize Parameters
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
HINT
The following items can be customized.
NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
1. POWER DOOR LOCK CONTROL SYSTEM

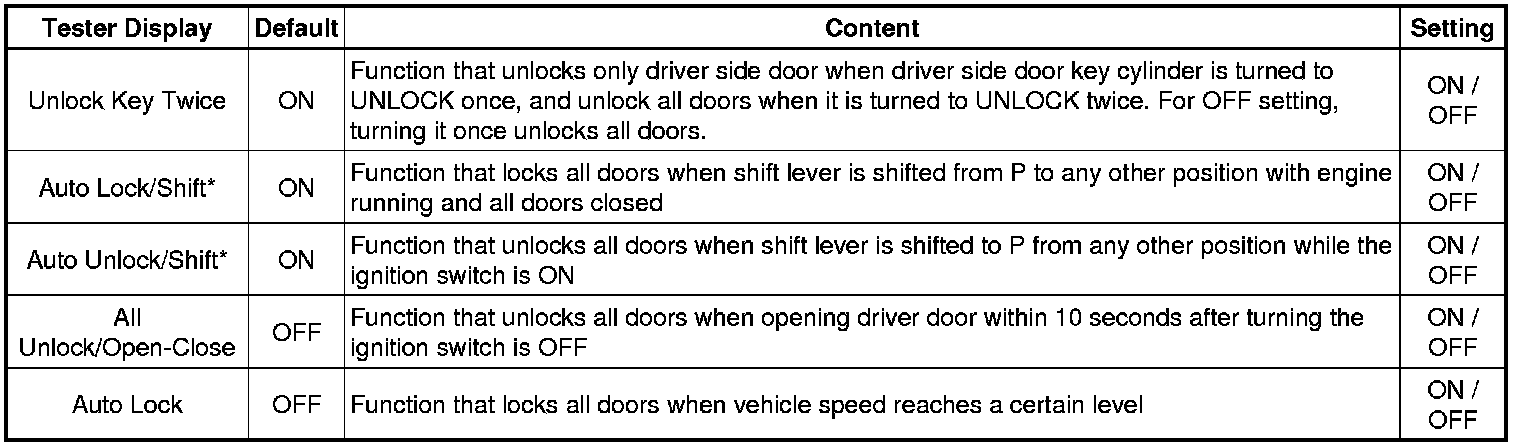

Main Body
* *: for A/T
2. WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)

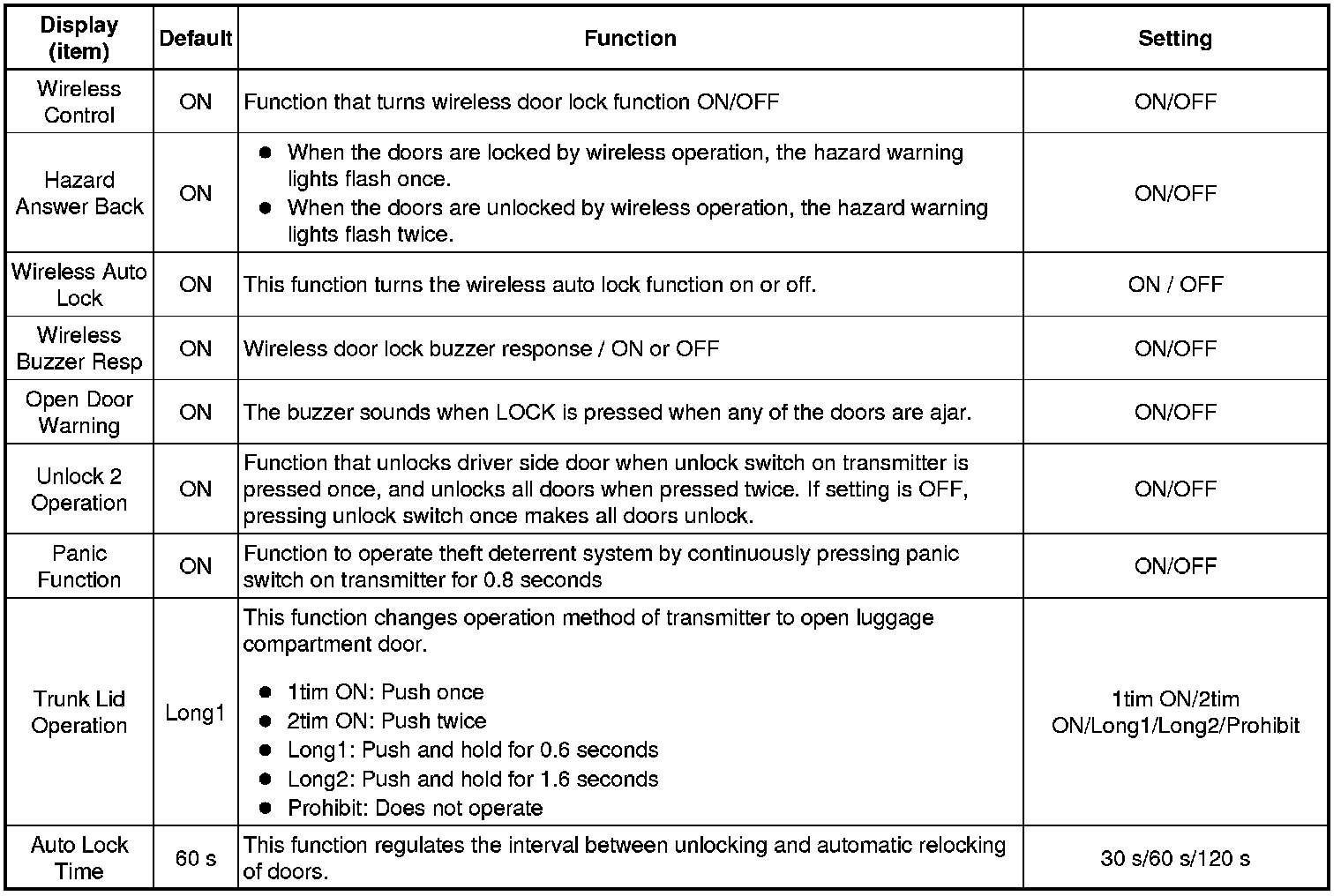

Wireless Door Lock Control System
3. WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)

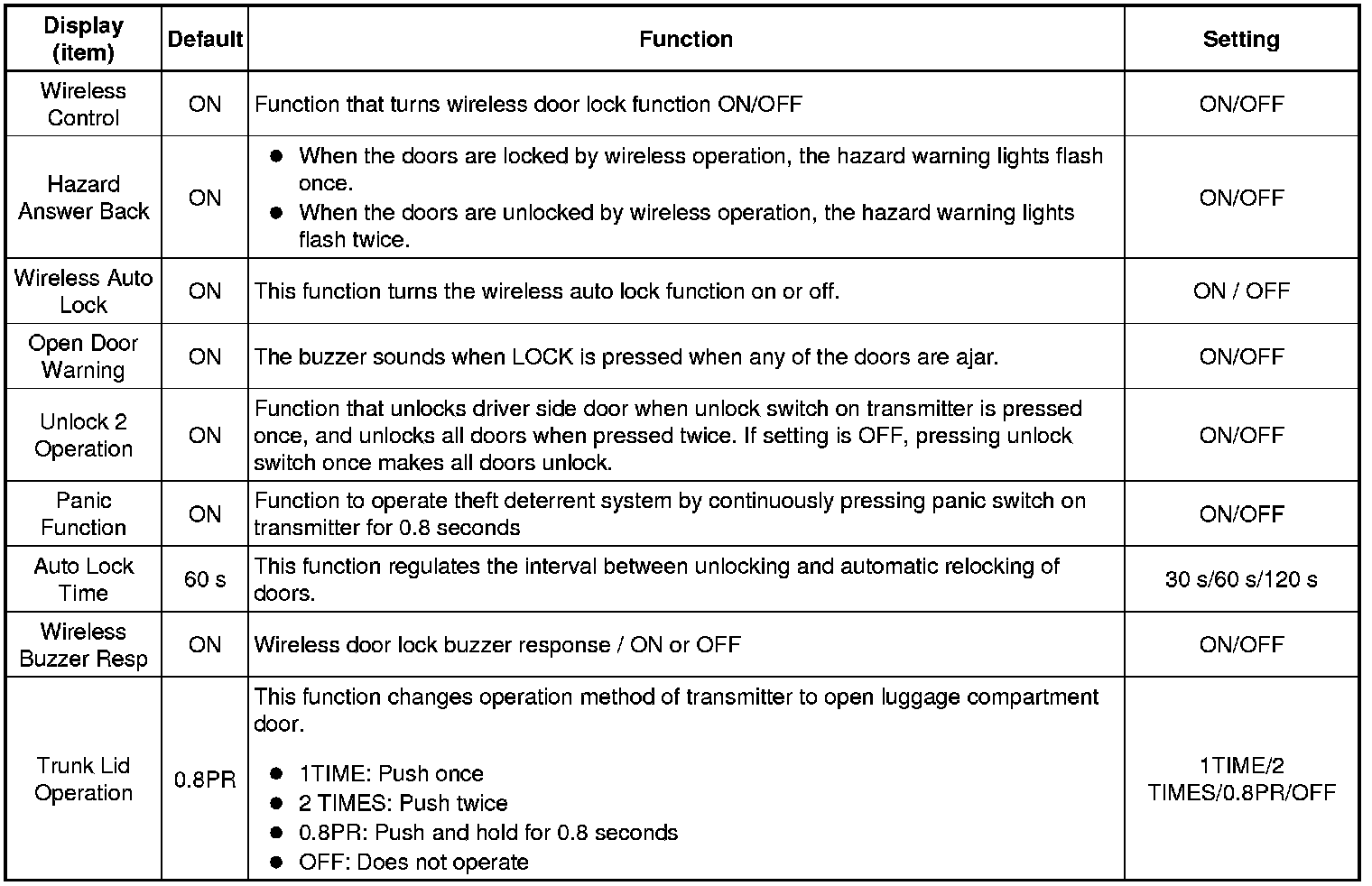

Wireless Door Lock Control System
4. SMART KEY SYSTEM (for Entry Function)

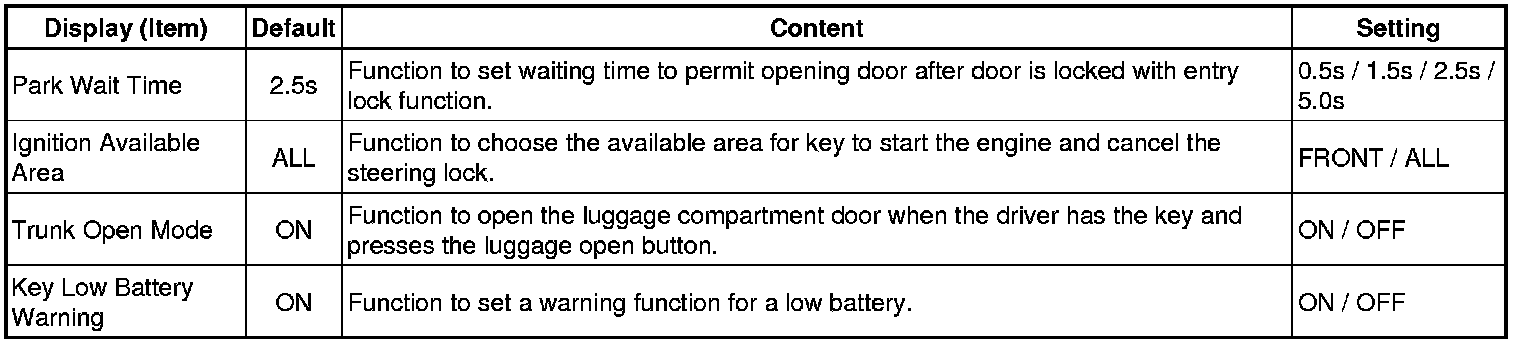

Smart Key/Access (Certification ECU (Smart Key ECU assembly))
5. ENTRY UNLOCK MODE SWITCHING FUNCTION
(a) Check that the power source mode is OFF and the LED on the key is not blinking. Press the LOCK button and one of the other buttons on the key at the same time for approximately 5 seconds while the key is in the actuation area.
* Driver door unlock default setting:
When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.
NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
* Driver door unlock mode:
When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
* All door unlock mode:
When the touch sensor is touched, all doors unlock.
(b) The certification ECU (smart key ECU assembly) receives this signal from the entry door control receiver and changes the smart key system to the entry unlock mode.

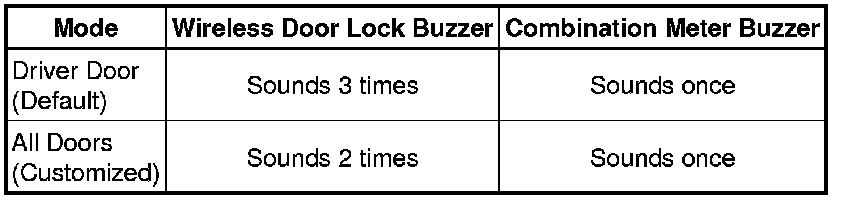

(c) The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.
HINT
The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.
6. ELECTRICAL KEY CANCEL
The electrical key cancel operation disables the following functions:
* Entry Unlock / Lock
* Entry Luggage Compartment Open
* Key Lock-in Prevention
* Warning
(a) The operation procedures are as follows:
Precondition:
Engine switch off, driver side door closed and unlocked.
(1) Unlock the driver side door once with the UNLOCK switch of the key.
(2) Open the driver door within 5 seconds.
(3) Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
(4) Close and open the driver door twice within 30 seconds.
(Driver door: Close -> Open -> Close -> Open)
(5) Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
(6) Close and open the driver door within 30 seconds.
(Driver door: Close -> Open)
(7) Close the driver door within 5 seconds.
When electrical key cancel is activated, the wireless door lock buzzer sounds twice.
To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
7. SMART KEY SYSTEM (for Start Function)

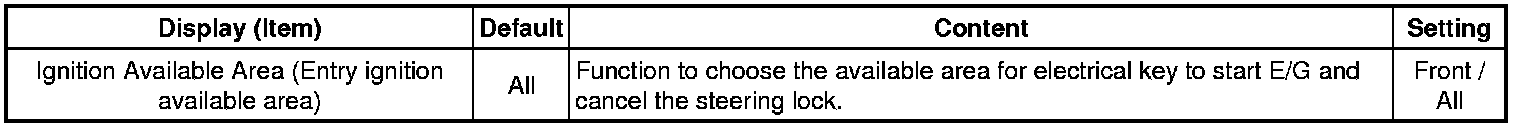

Smart Key / Access

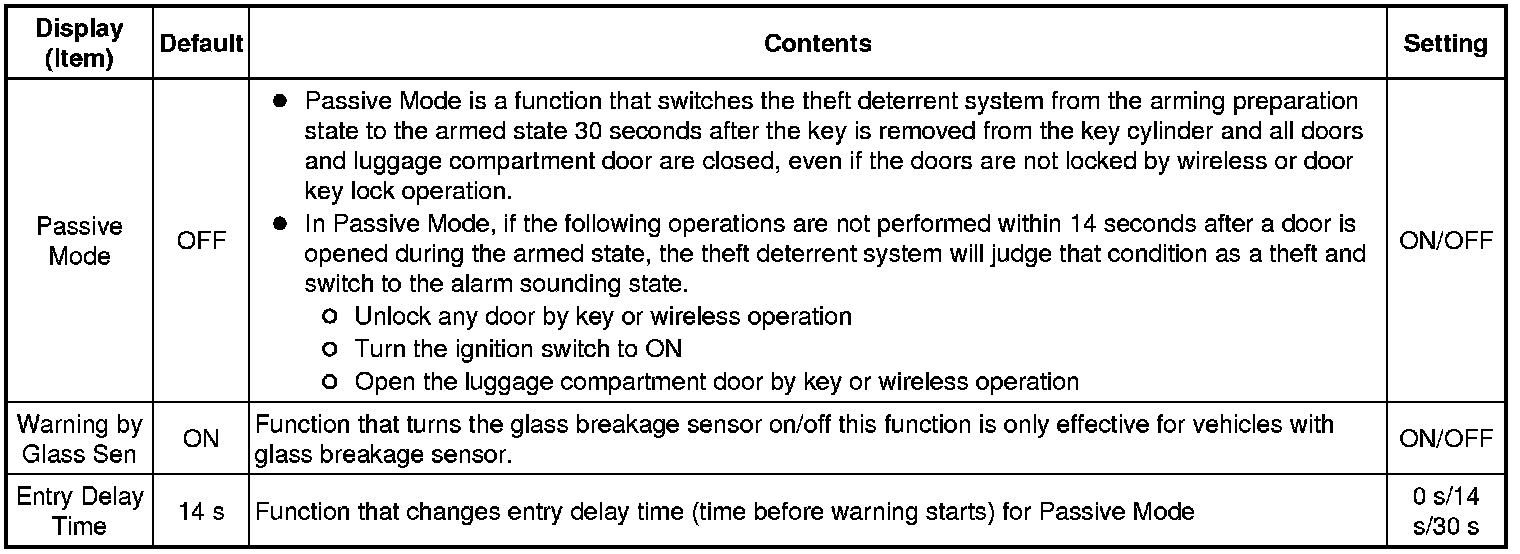

8. THEFT DETERRENT SYSTEM
Security
9. LIGHTING SYSTEM
Illuminated Entry
* *1: w/ Sliding Roof
* *2: w/ Smart Key System
* *2: w/ Power Door Lock Control System
10. METER/GAUGE SYSTEM
Combination Meter
* *: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.
11. SEAT BELT WARNING SYSTEM

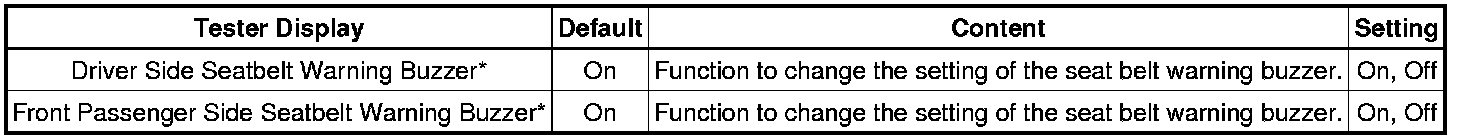

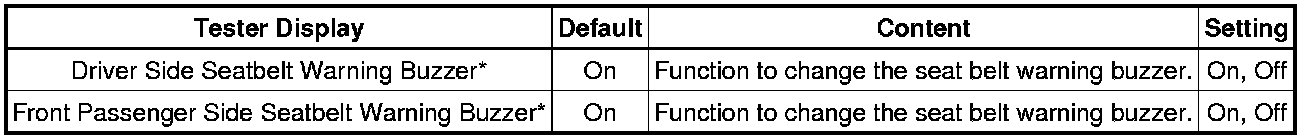

Combination Meter
HINT
*: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.
12. AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)
Air Conditioner
