48-51 - Position of Parts In Engine Compartment
48-51 - Position of Parts In Engine Compartment

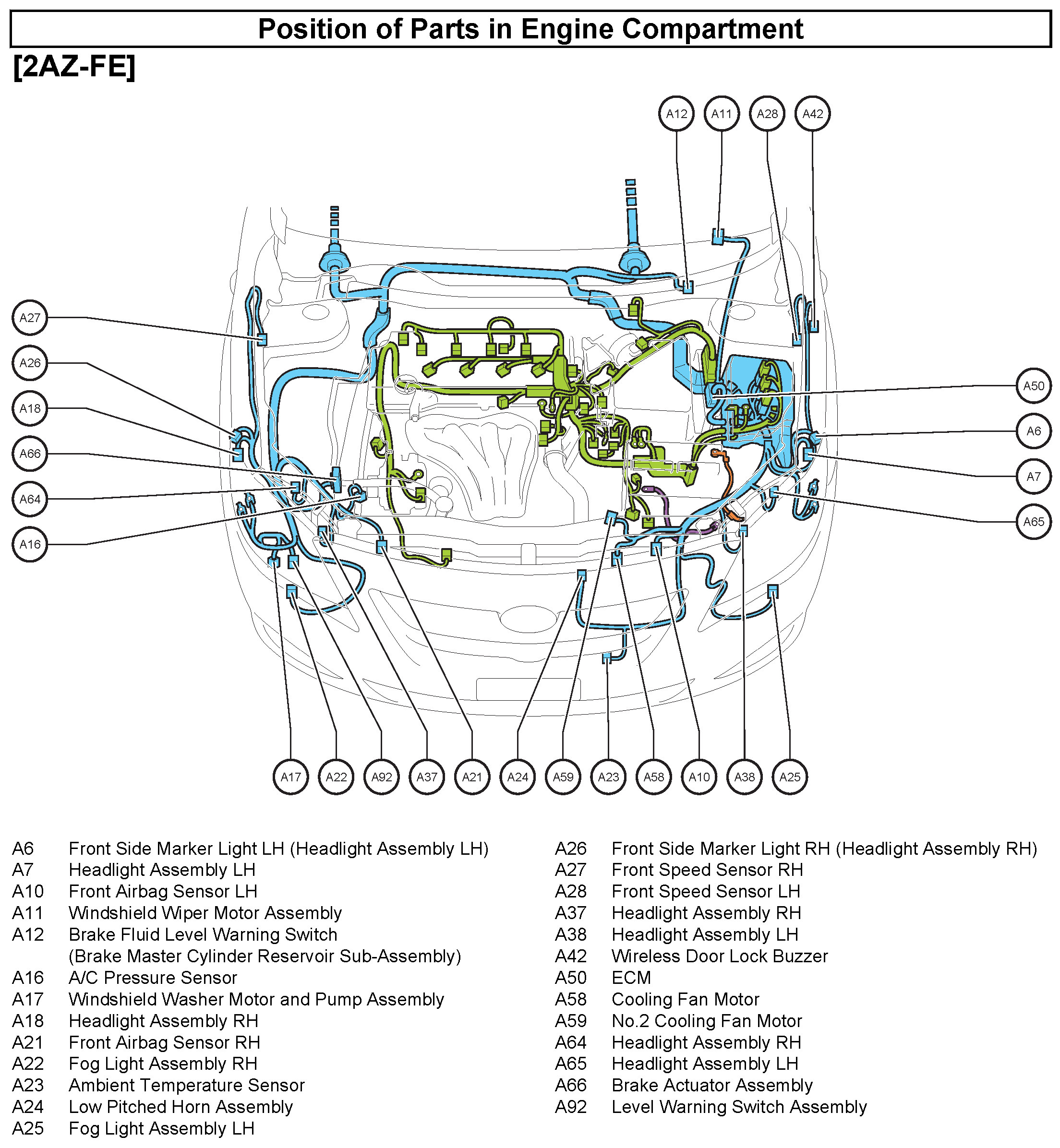

48 - Position of Parts in Engine Compartment:

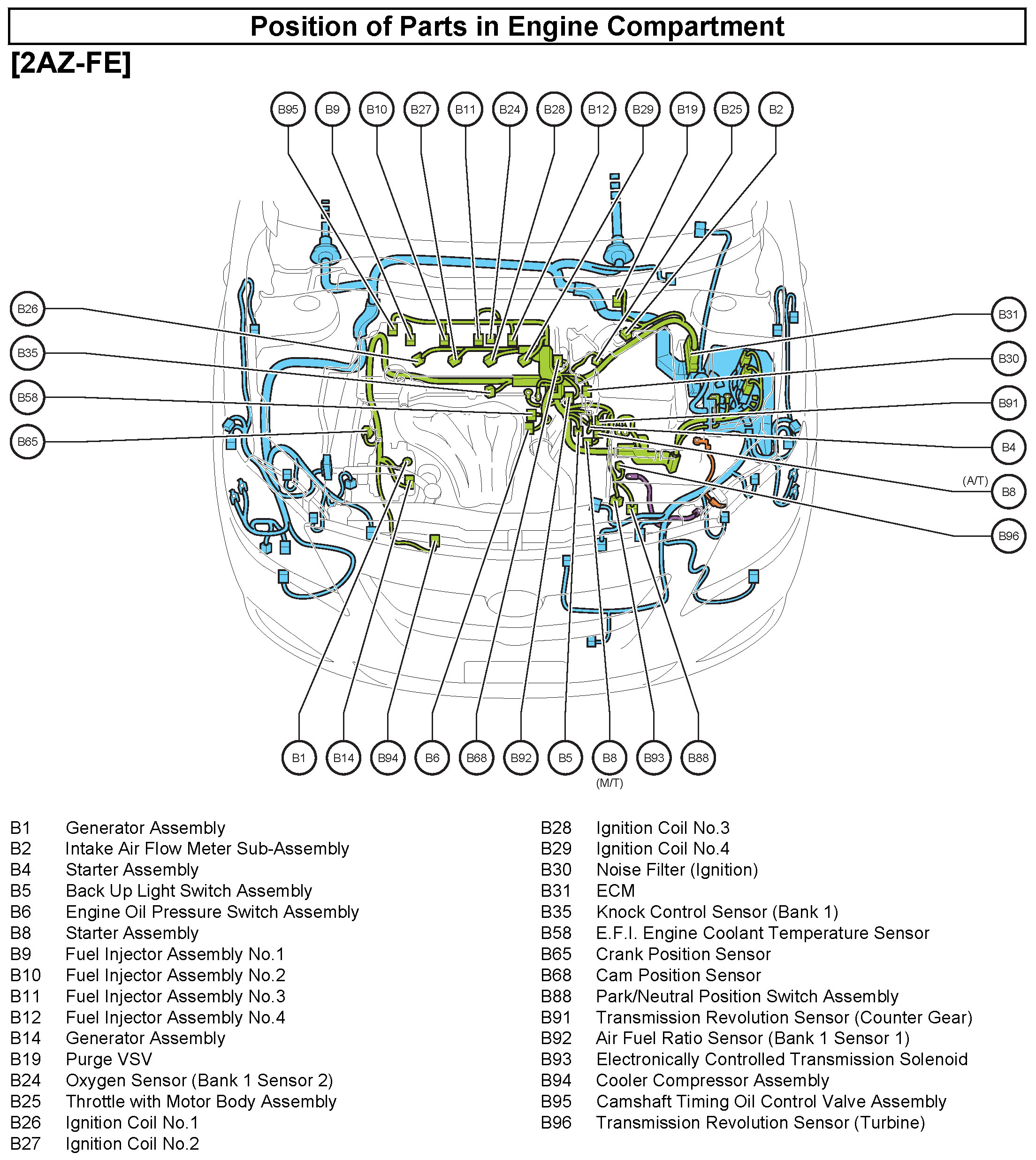

49 - Position of Parts in Engine Compartment:
