Flex Plate

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

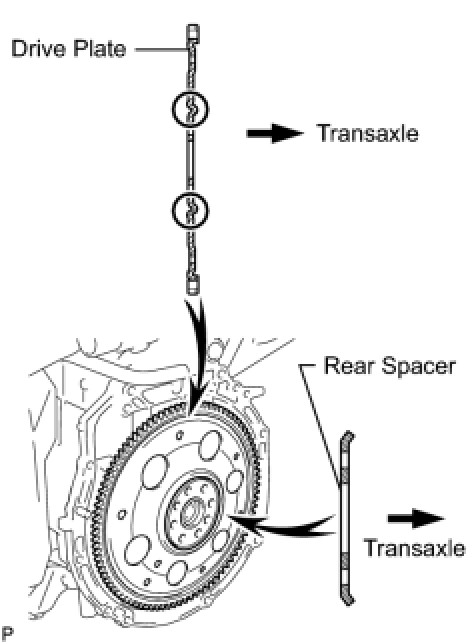

Install the drive plate and rear drive plate spacer onto the crankshaft.

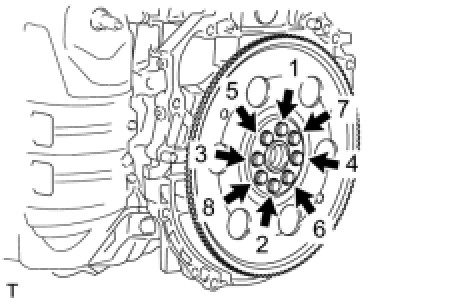

Uniformly install and tighten the 8 bolts in the sequence shown in the illustration.






Torque 98 Nm (999 kgf-cm, 72 ft-lbf)
