Steering Mounted Controls Assembly: Testing and Inspection

AUDIO / VIDEO: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH

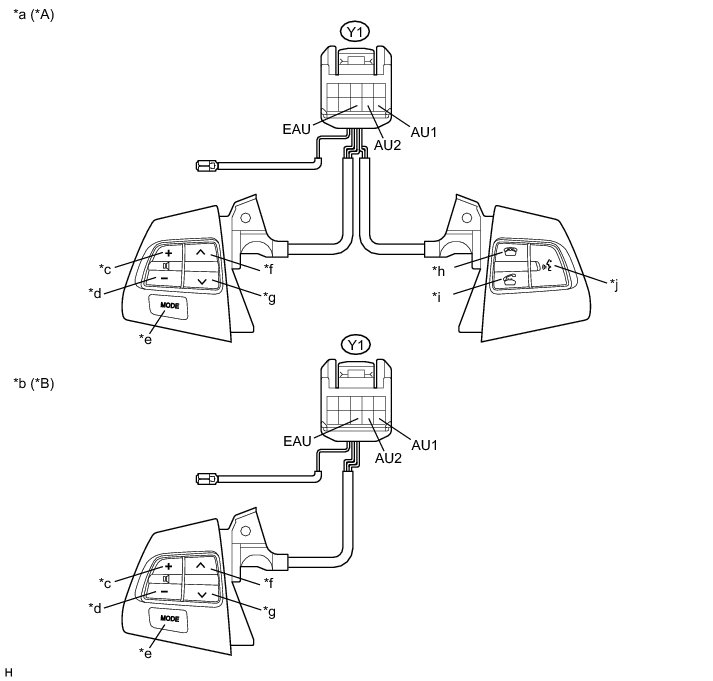

(a) Disconnect the steering pad switch assembly *1 or steering pad switch LH*2 connectors.

* *1: w/ Telephone Microphone Assembly

* *2: w/o Telephone Microphone Assembly





(b) Measure the resistance according to the values in the table below.

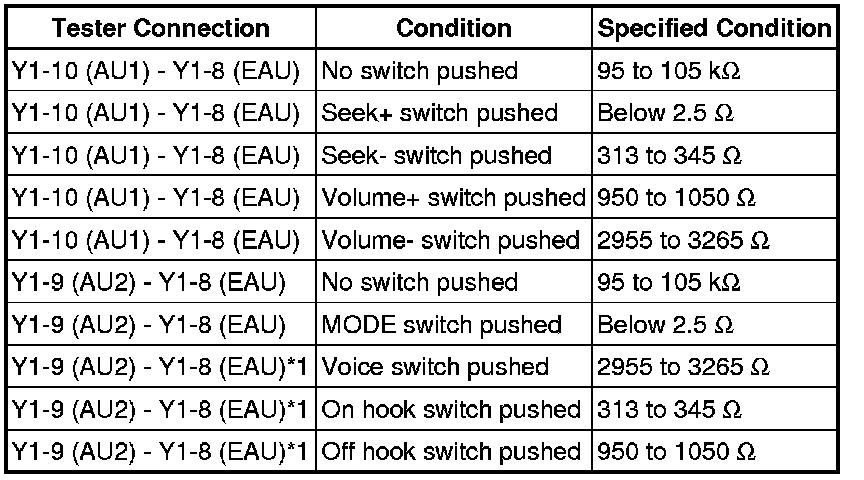

Standard Resistance:





* *1: w/ Telephone Microphone Assembly

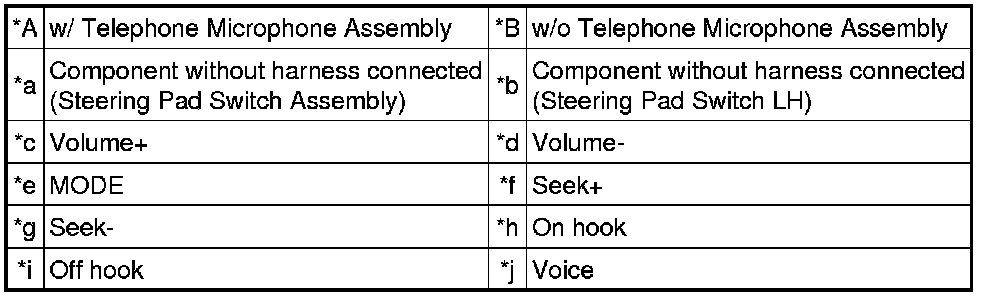

Text in Illustration





If the result is not as specified, replace the steering pad switch.
