Antilock Brakes / Traction Control Systems: Locations

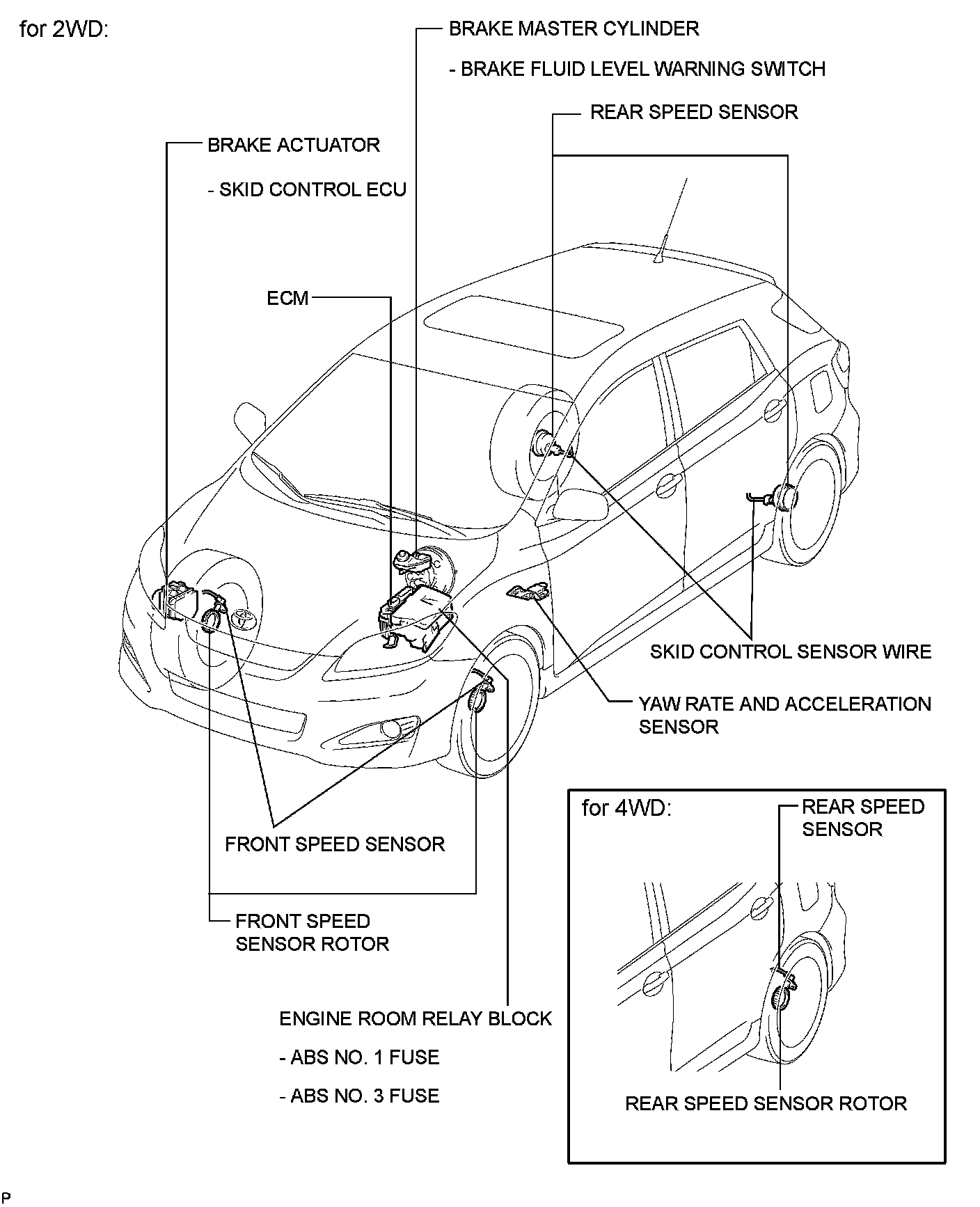

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM (for 2AZ-FE): PARTS LOCATION
