Cruise Control
>>
Description and Operation
>>

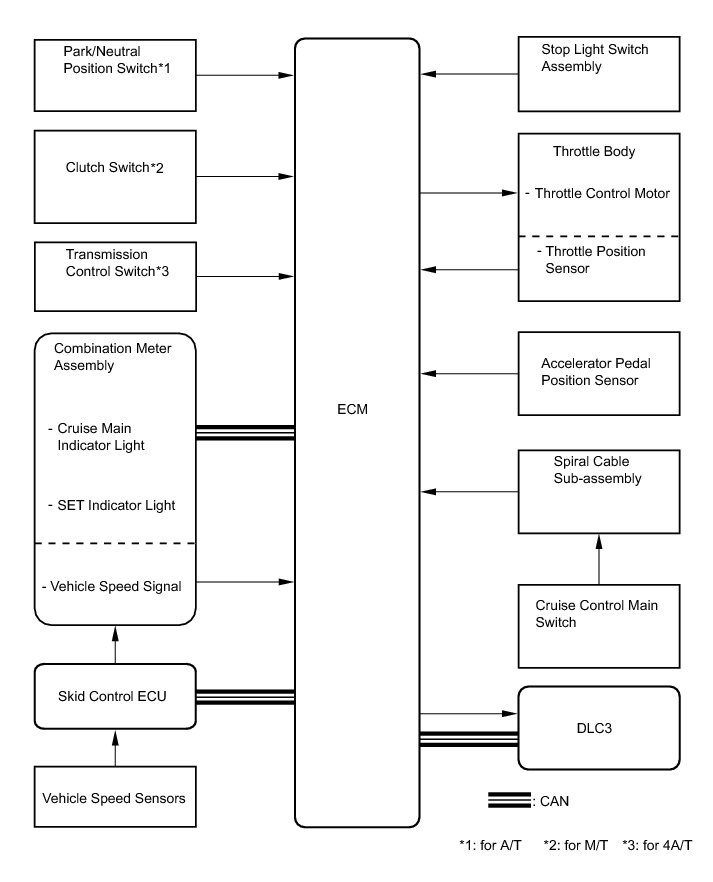

System Diagram
System Diagram
CRUISE CONTROL
: CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM
Communication Table
