46 - 47 - Position of Parts In Body
46 - 47 - Position of Parts In Body

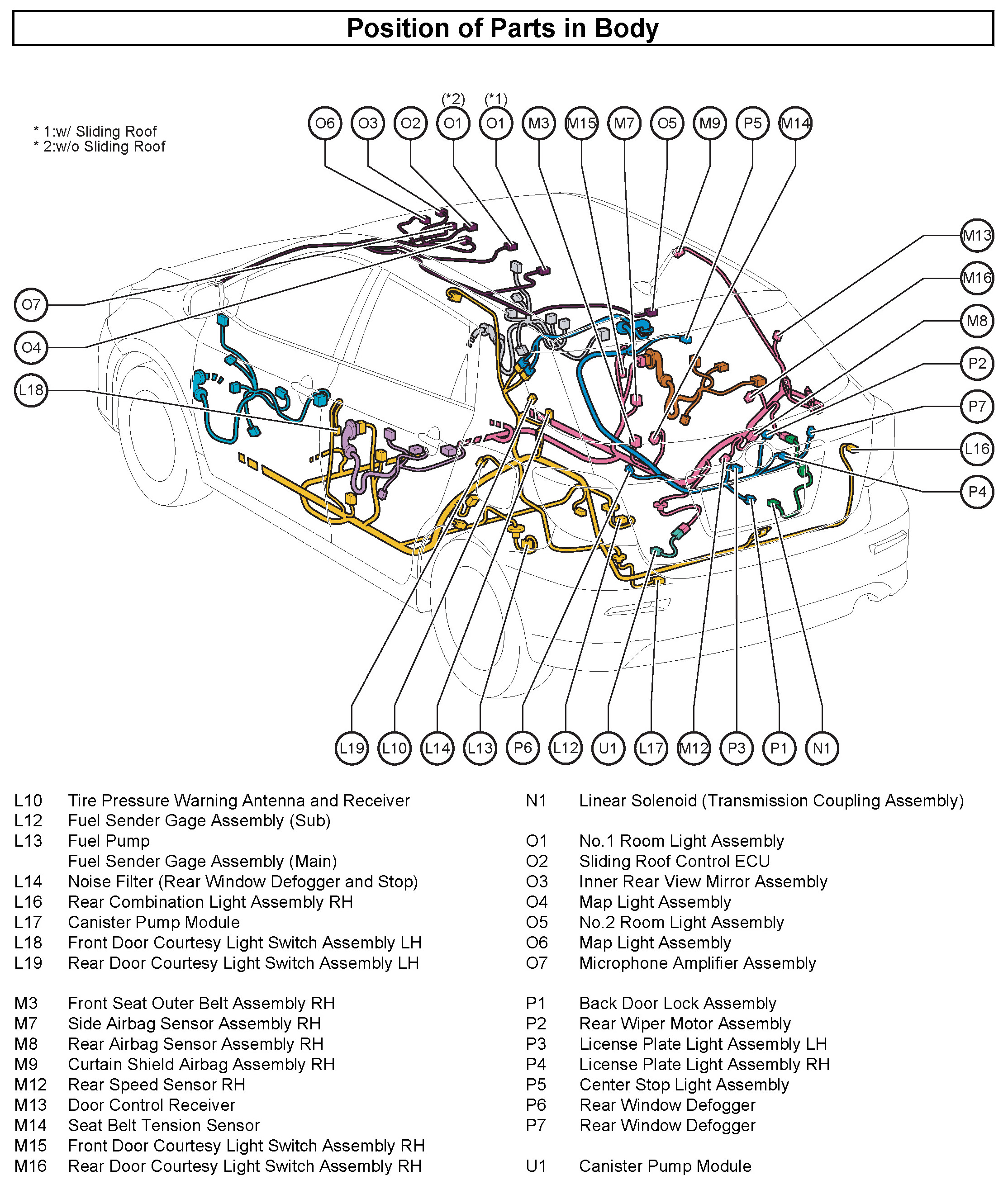

46 - Position of Parts in Body:
47 - Position of Parts in Body:
