Blower Motor Resistor: Testing and Inspection

HEATING / AIR CONDITIONING: BLOWER RESISTOR: INSPECTION

1. INSPECT BLOWER RESISTOR

(a) Disconnect the connector from the blower resistor.

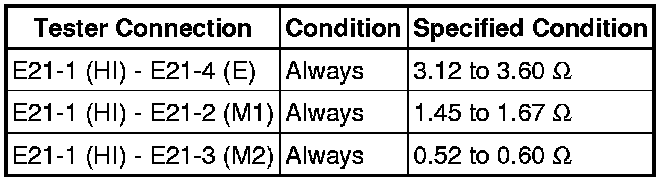

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the resistance is not as specified, replace the blower resistor.
