Pinout Values and Diagnostic Parameters

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: TERMINALS OF ECU

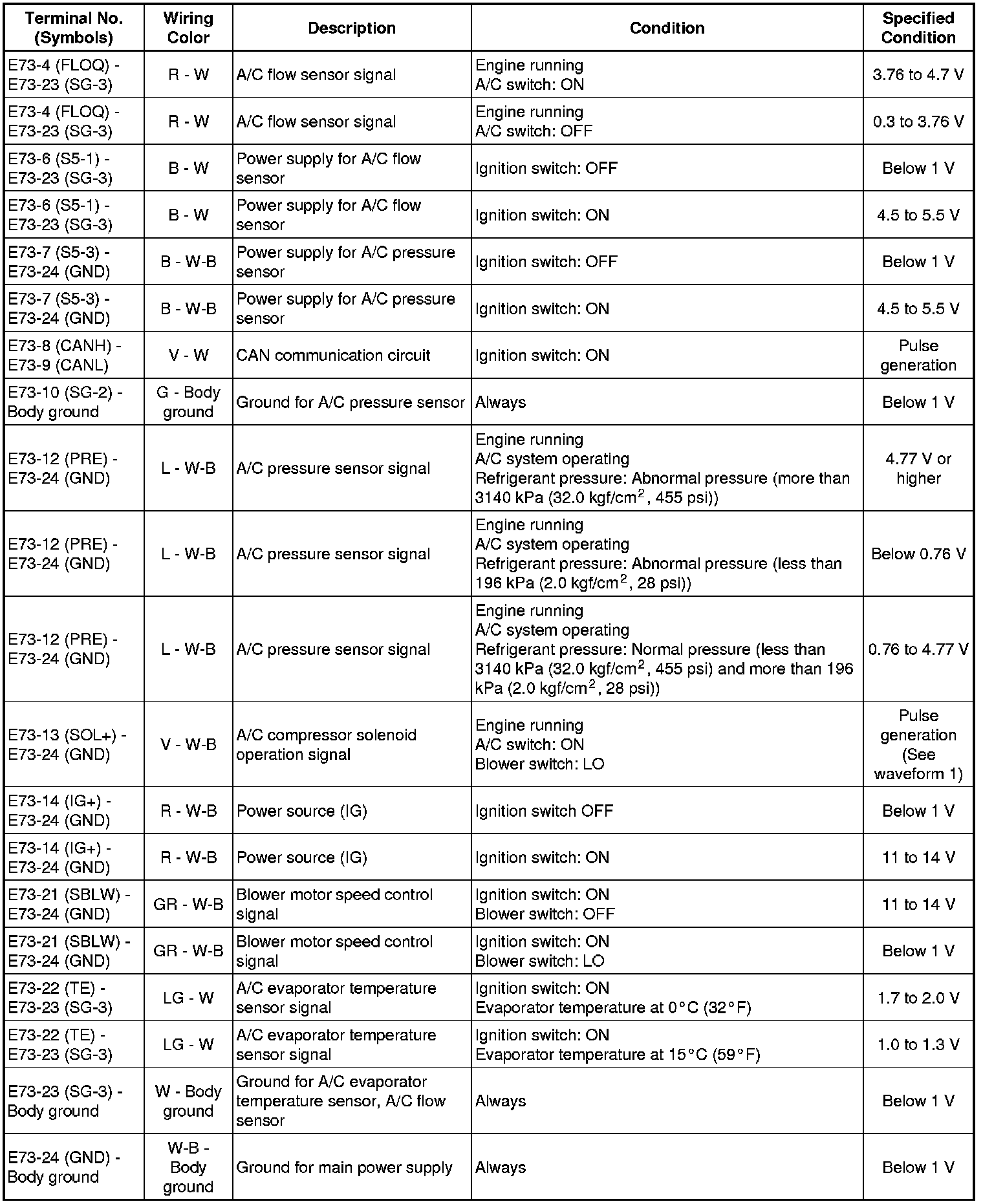

1. A/C AMPLIFIER (for 2AZ-FE)





HINT
Check from the rear of the connector while it is connected to the A/C amplifier.









(a) Waveform 1:

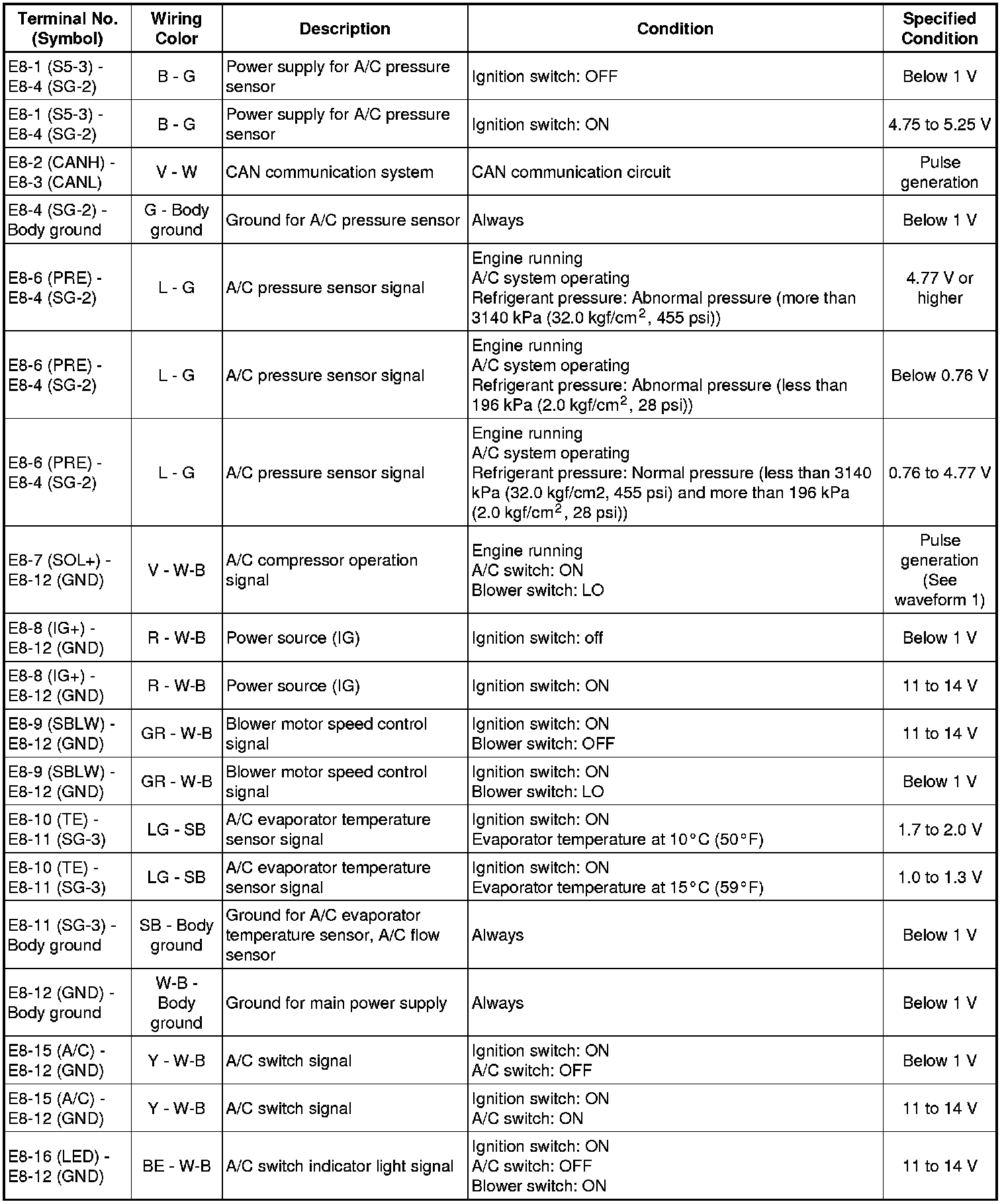

2. A/C AMPLIFIER (for 2ZR-FE)





HINT
Check from the rear of the connector while it is connected to the A/C amplifier.

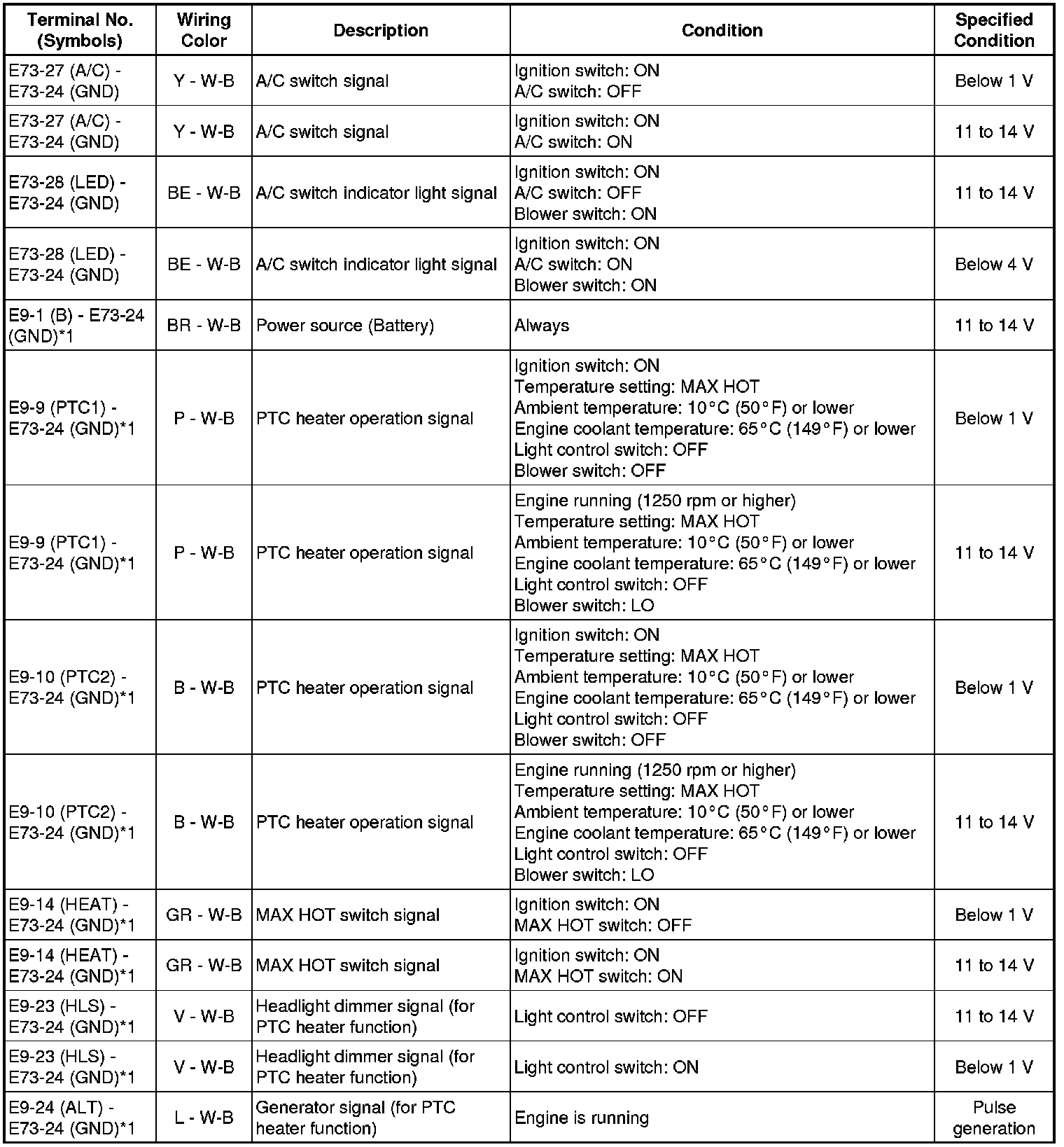

* *1: w/ PTC Heater Assembly

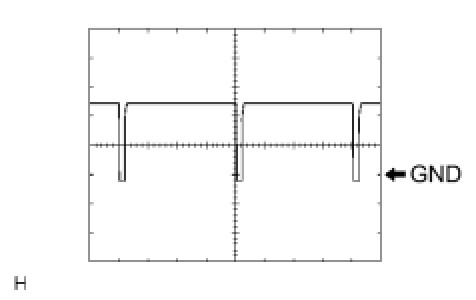

(a) Waveform 1:
