Center Mounted Brake Lamp: Testing and Inspection

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION

1. INSPECT HIGH MOUNTED STOP LIGHT ASSEMBLY

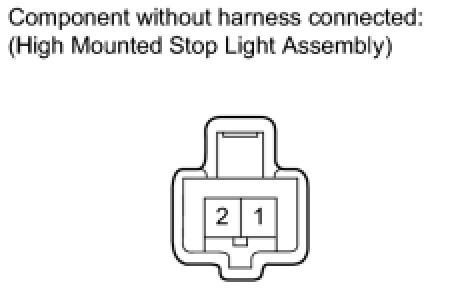

(a) Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.





(b) Check that the high mounted stop light comes on.

OK:

The light comes on.

If the result is not as specified, replace the light assembly.
