License Plate Lamp: Testing and Inspection

LIGHTING (EXT): LICENSE PLATE LIGHT ASSEMBLY: INSPECTION

1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

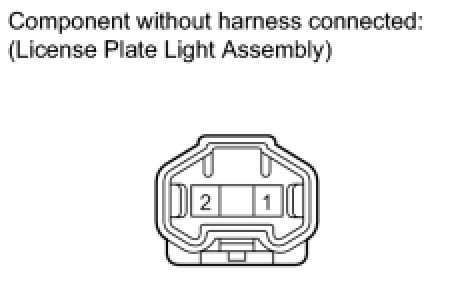

(a) Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.





(b) Check that the light comes on.

OK:

The light comes on.

If the result is not as specified, replace the bulb or light socket.
