Programming and Relearning





LIGHTING (INT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

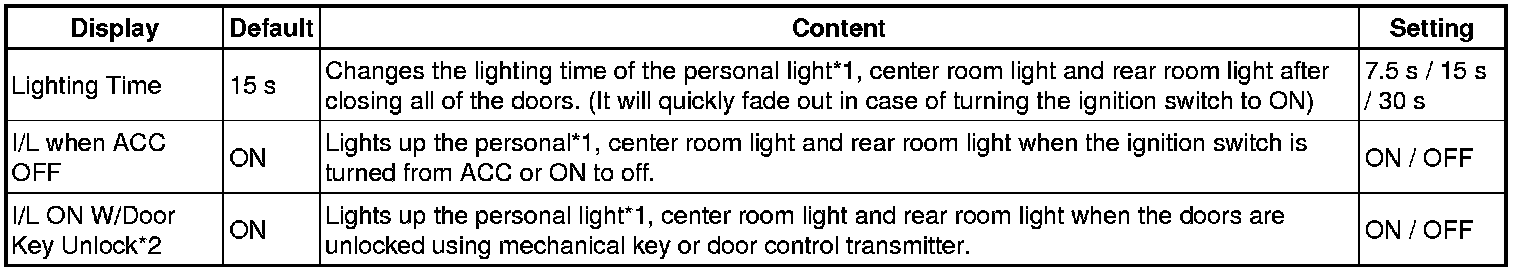

Illuminated Entry





HINT
*1: w/ Sliding Roof

*2: w/ Power Door Lock Control System
