38 - 41 - Position of Parts In Engine Compartment
38 - 41 - Position of Parts In Engine Compartment

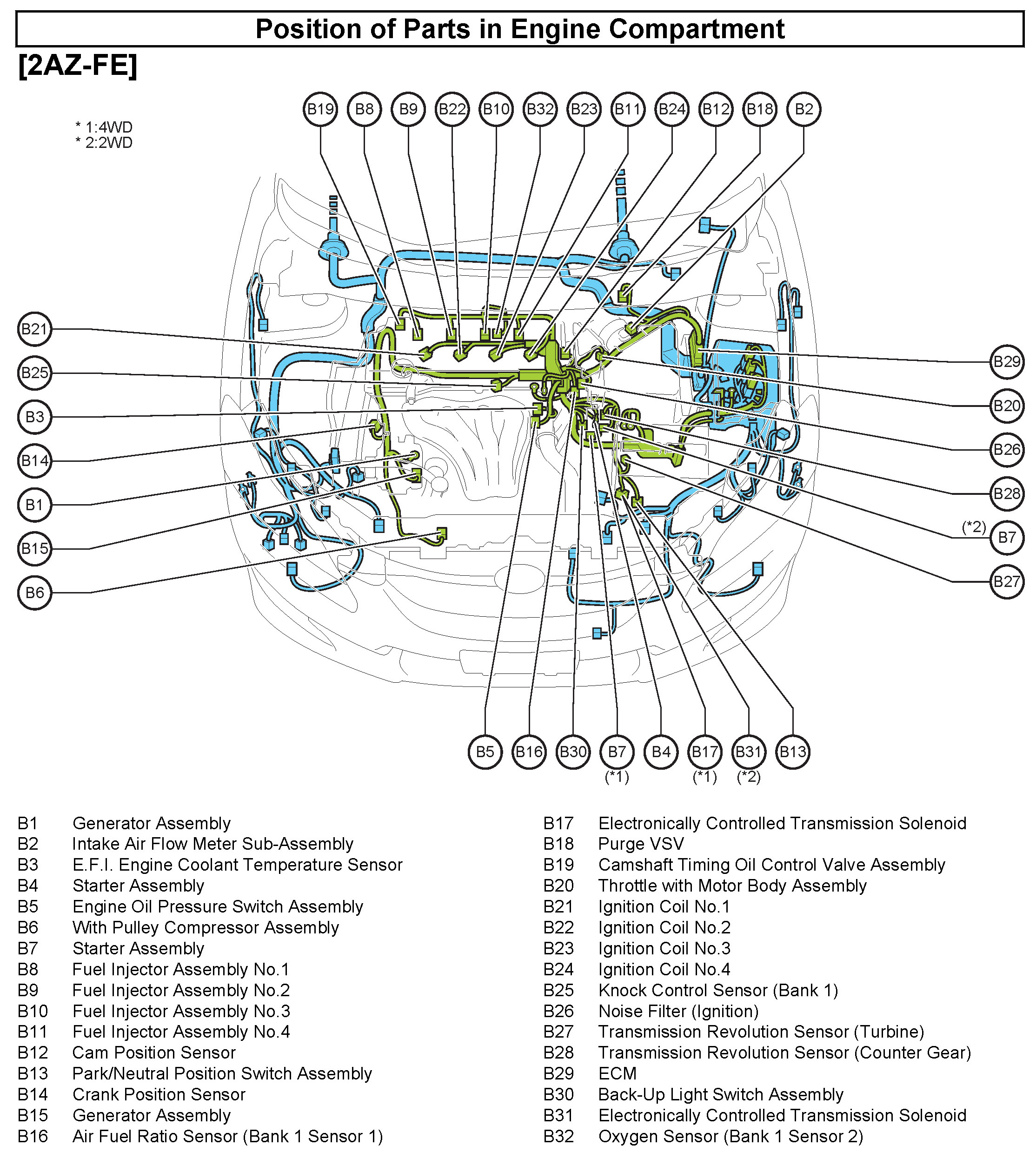

38 - Position of Parts in Engine Compartment:

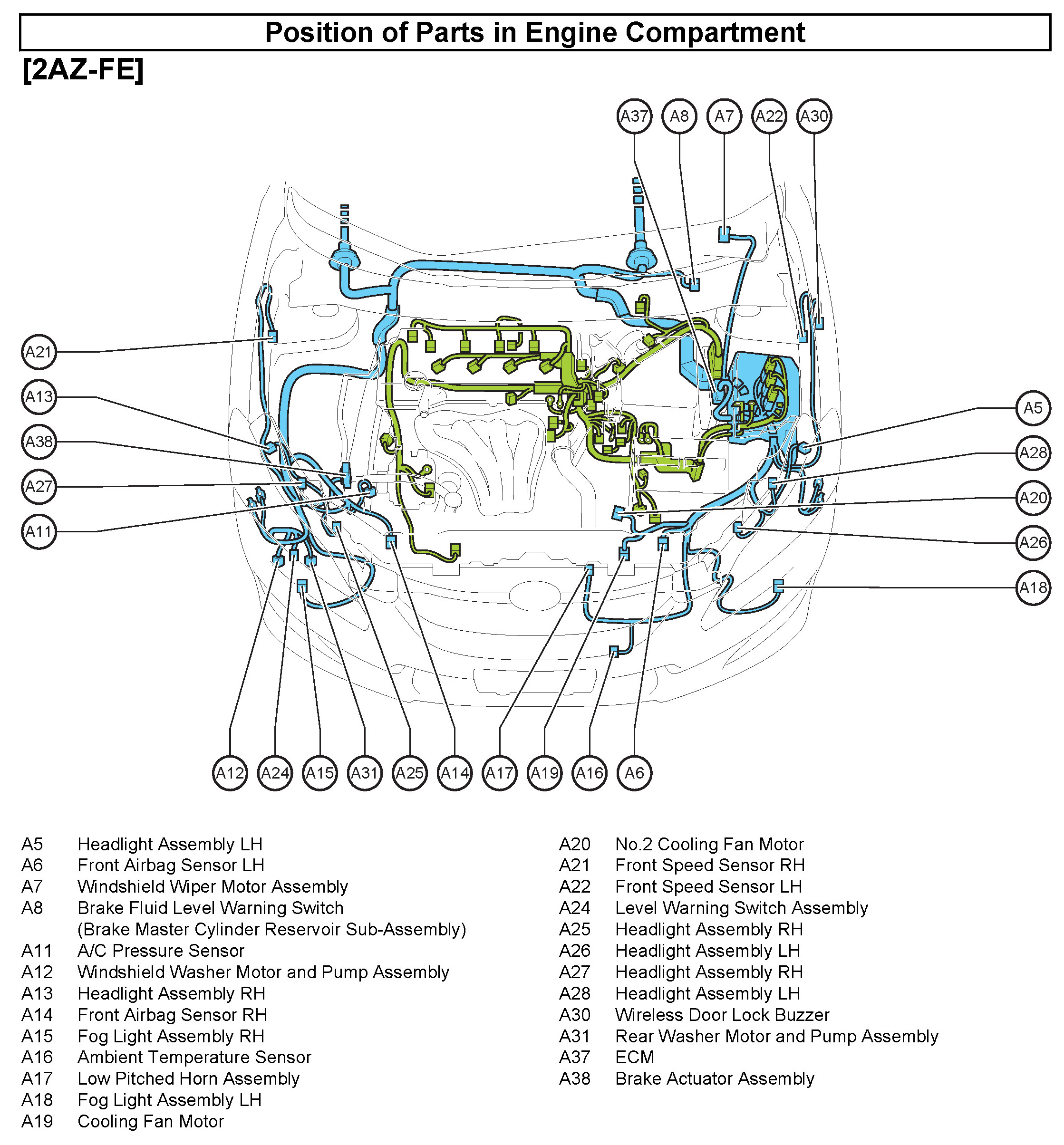

39 - Position of Parts in Engine Compartment:
