Auxiliary Power Outlet: Testing and Inspection

POWER OUTLETS (INT): VOLTAGE INVERTER: ON-VEHICLE INSPECTION

1. INSPECT VOLTAGE INVERTER

HINT
Remove interior parts so that the voltage inverter can be seen.

(a) Disconnect the voltage inverter connector.

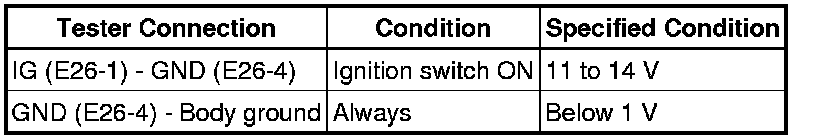

(b) Measure the voltage according to the values in the table below.

Standard Voltage:





HINT
If the result is not as specified, repair or replace harness or connector.

(c) Reconnect the voltage inverter connector.





(d) Measure the voltage according to the values in the table below.

Standard Voltage:





HINT
If the result is not as specified, replace the voltage inverter Removal.
