Multiple Junction Connector: Locations

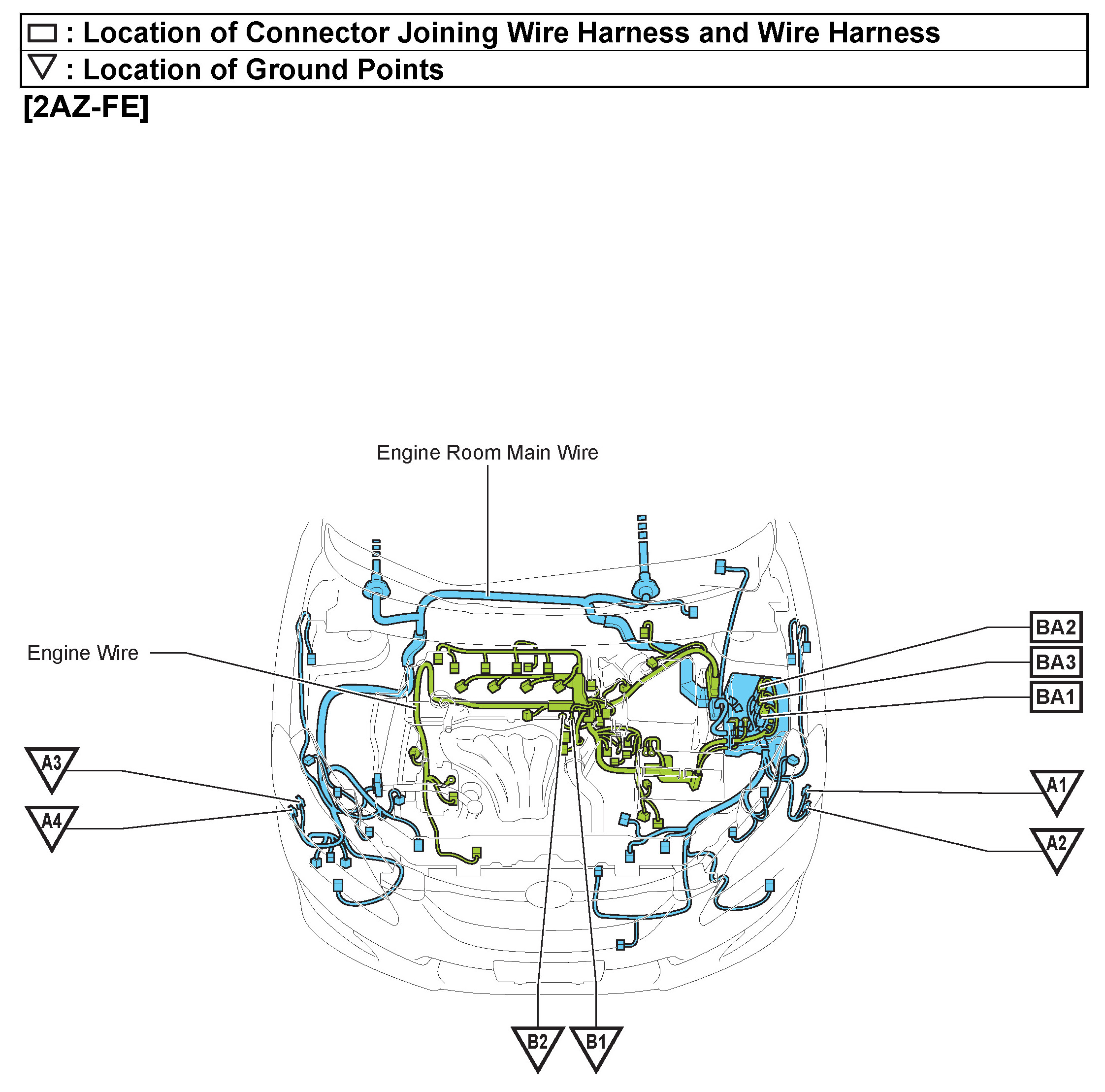

50 - A1-B2, BA1-BA3:






52 - AE1-OE1:






53 - L2-M2, JM1-PL2:

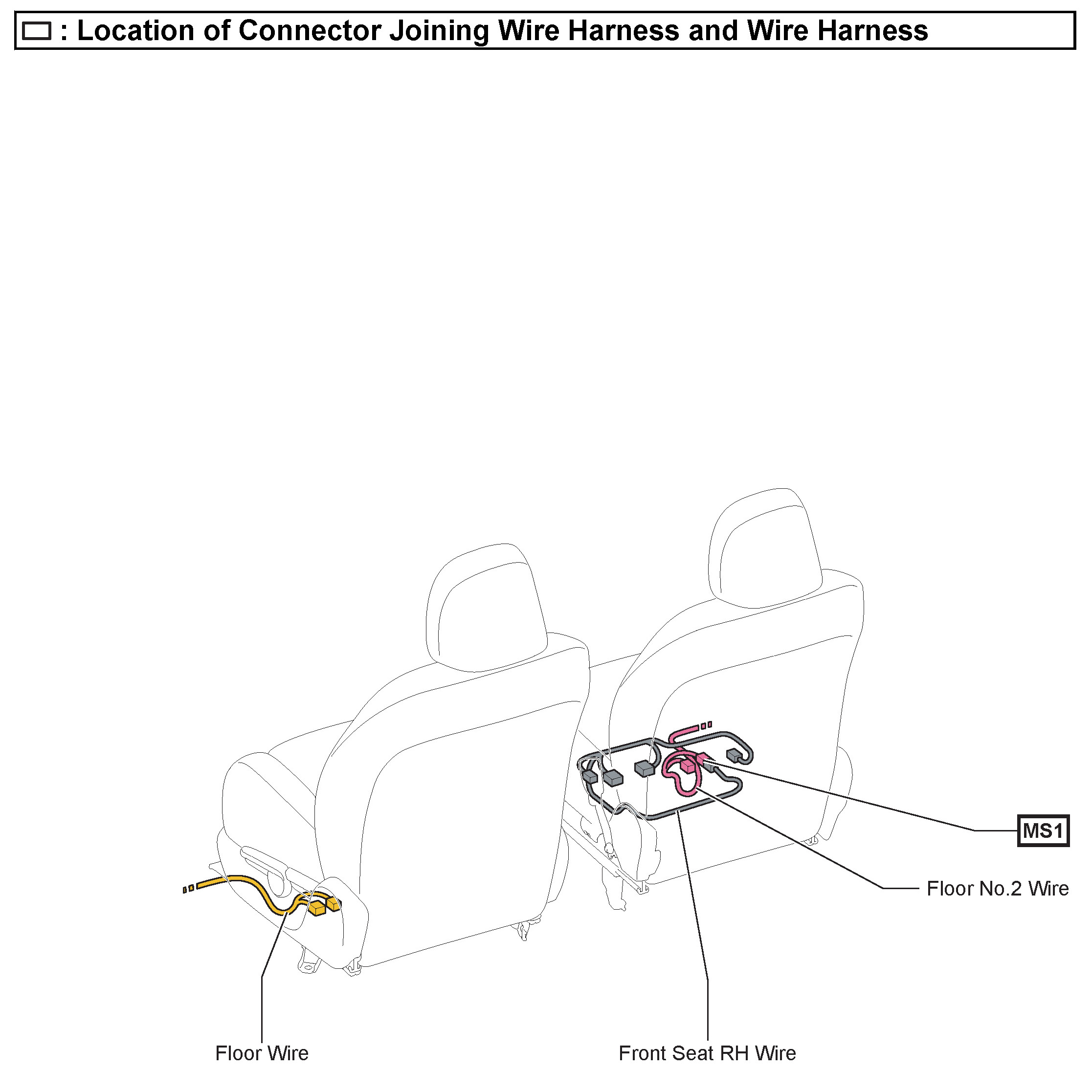

54 - MS1:
