Pinout Values and Diagnostic Parameters

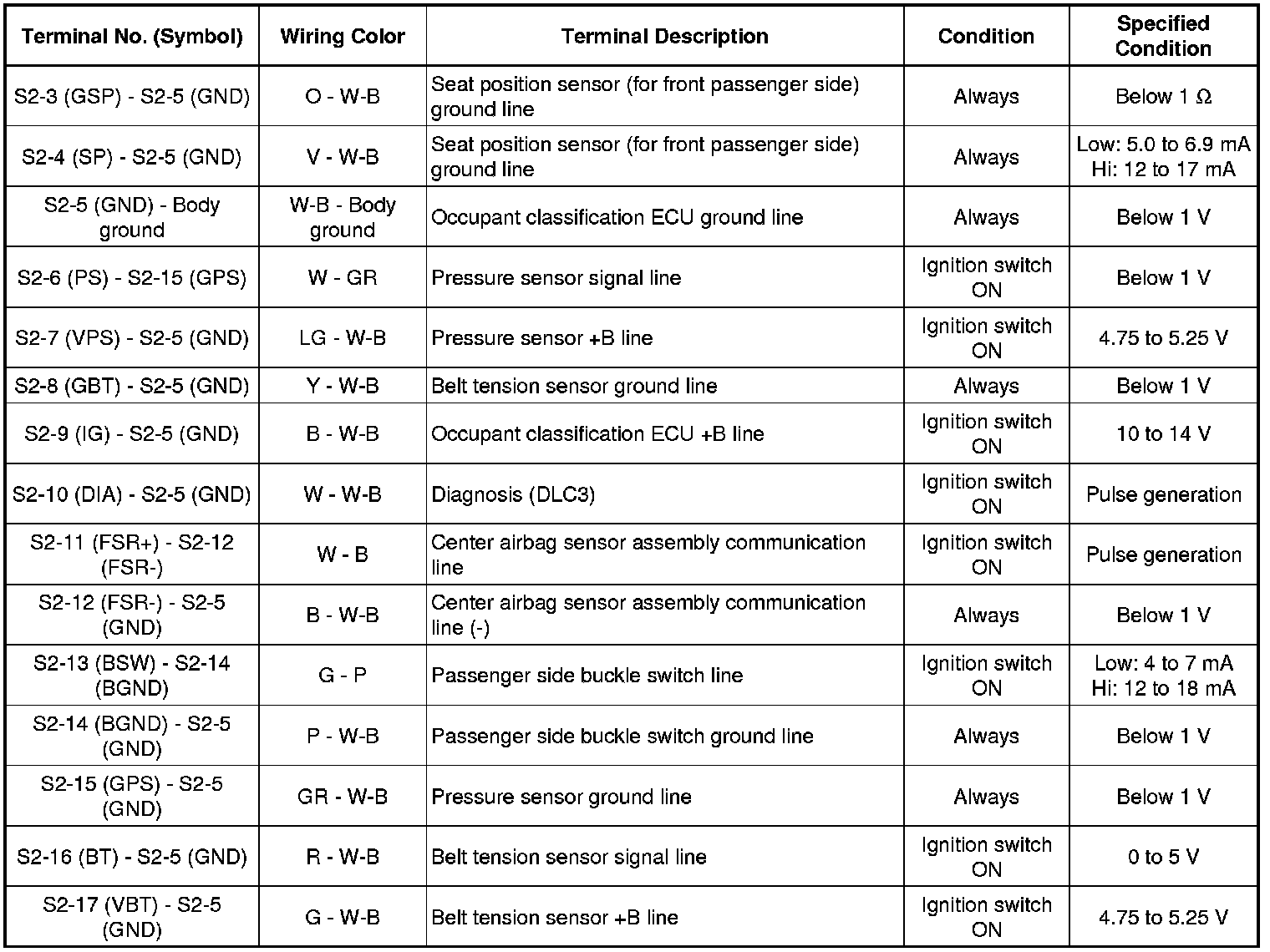

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU

1. OCCUPANT CLASSIFICATION ECU
