Home
>>
Toyota
>>
2012
>>
Matrix FWD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

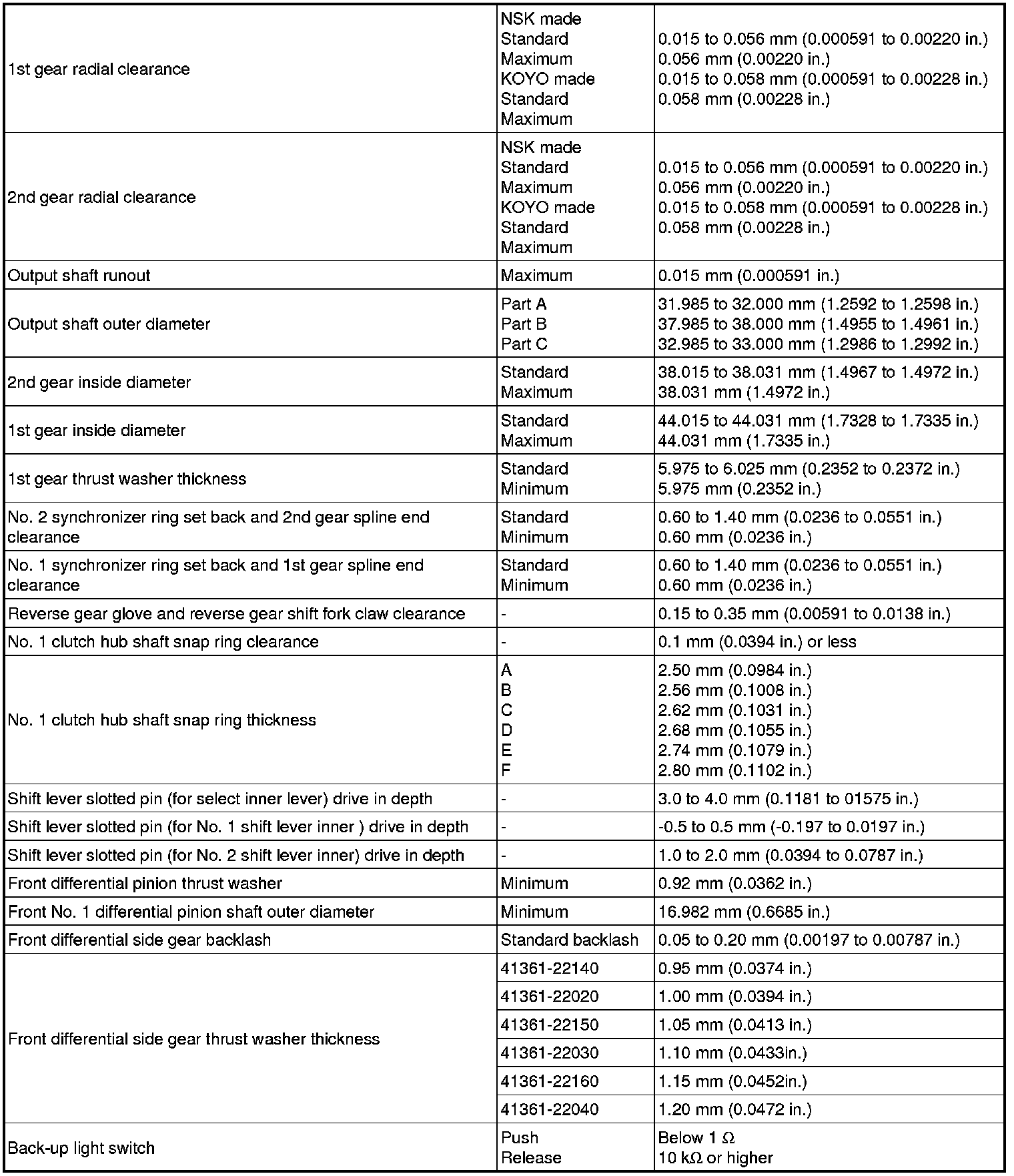

SPECIFICATIONS: C59 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA
